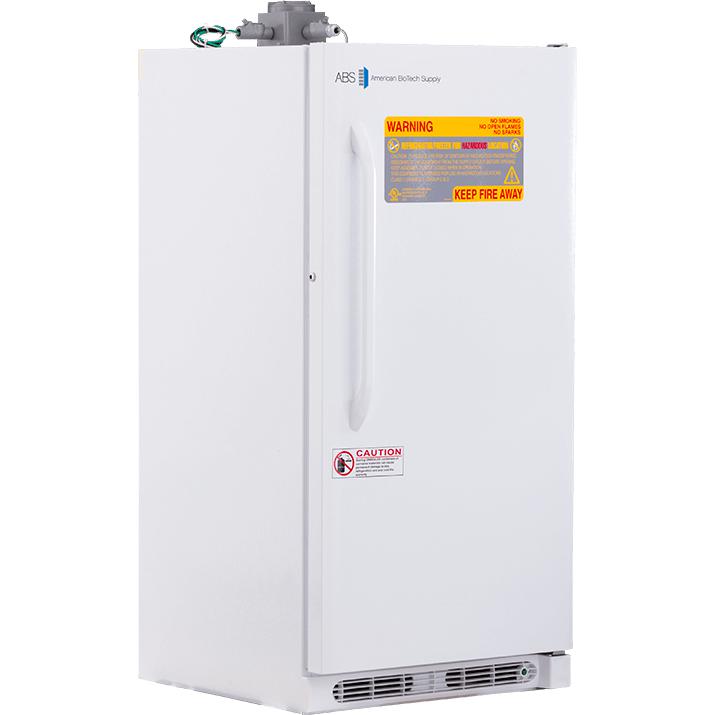

ABS Hazardous Location (Explosion-Proof) Freezers
Image SKU Description Capacity Temperature Range Defrost Type Electrical Quantity Price Add to Cart
products/abt_efs_30_ext_image.jpg
ABT-EFS-30 ABS Explosion-Proof Freezer 30 cu ft -15 to -25 °C Manual 115V, 60Hz, 6A, 1/3HP, UL/C-UL Listed 1 Each
$10,248
$7,798
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

These explosion-proof freezers meet NFPA and OSHA guidelines for Hazardous Locations, Class 1, Division II, Group C & D. These units are engineered for use in environments where volatile / explosive conditions could potentially exist. They are not intended for common lab / room environments that are not designed to be explosion proof.

These units are designed with no internal electrical components. All external components are sealed per NFPA and OSHA guidelines.

Features

  • Mechanical thermostat sealed in UL listed explosion proof box
  • Freezer temperature range: -15°C to -25°C
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Heavy duty door handle
  • Leveling legs
  • White textured cabinet and door
  • Freezer defrost: Manual defrost
  • High density urethane foam cabinet and door insulation
  • CFC-free refrigerant, foam insulation and packaging
  • Not equipped with line cord and plug; must be hard wired in conduit to 120 VAC power source
  • UL/C-UL listed
  • One year parts and labor warranty
  • Meet NFPA and OSHA guidelines for hazardous locations, Class 1, Division II, Group C & D.
  • This unit is not intended for use in general clinical or research laboratories.

Warnings

  • Units must be hard wired in conduit to 120VAC power source. Power cords are not acceptable.
  • These manual defrost freezers requires periodic manual defrosting.
  • Thess unit are designed to operate in ambient room temperatures not to exceed 75°F/50% RH (relative humidity). Failure to maintain these conditions may result in operational and/or performance issues.

Specifications

Part # Capacity (cu ft) Temperature Range Defrost Doors Shelves W (in) D (in) H (in) RL Volts Hertz H.P. Amps
ABT-EFS-14 14 -15°C to -25°C Manual 1 Solid 3 Fixed 29.875 34.5 66.5 R134a 115 60 0.33 5
ABT-EFS-17 17 -15°C to -25°C Manual 1 Solid 3 Fixed 34 32.5 72 R134a 115 60 0.33 5
ABT-EFS-20 20 -15°C to -25°C Manual 1 Solid 4 Fixed 34 34.5 77.75 R134a 115 60 0.33 5
ABT-EFS-30 30 -15°C to -25°C Manual 1 Solid 4 Fixed 35.75 35 77.5 R404a 115 60 0.33 6
