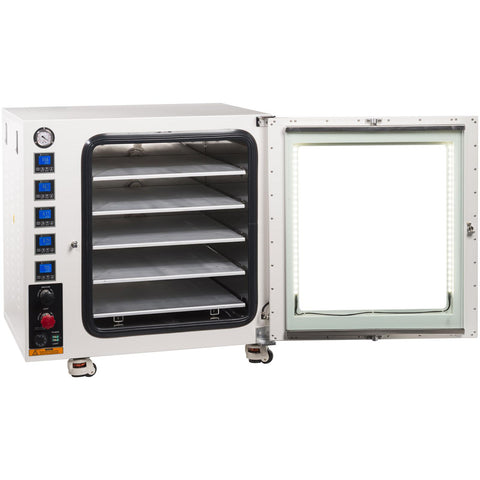

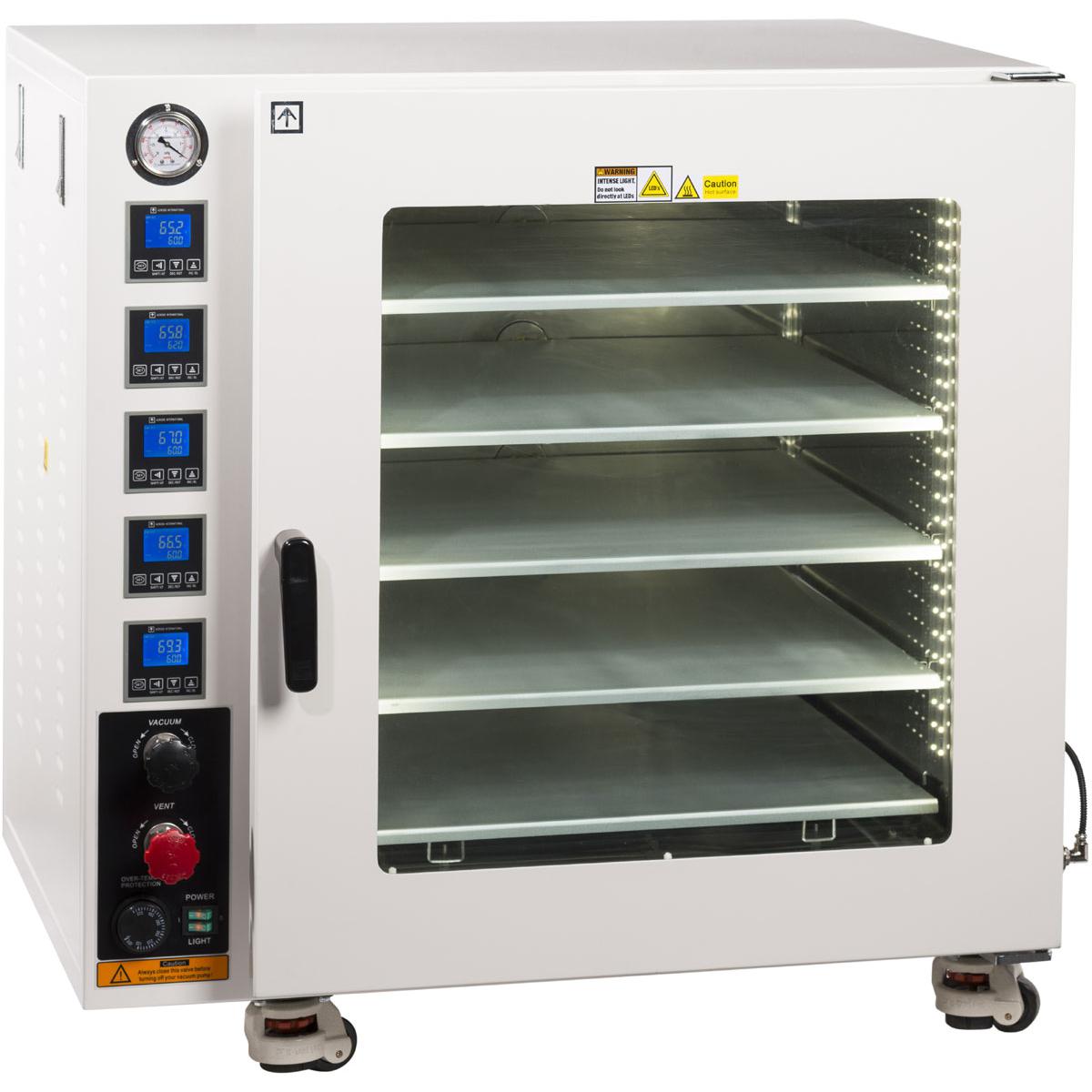

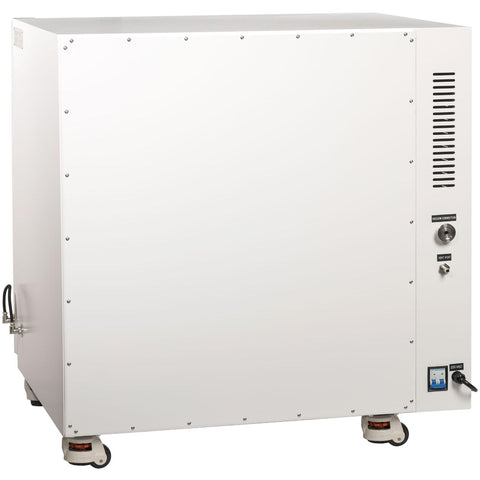

AccuTemp Vacuum Oven, 7.5 Cu Ft, 5 Heated Shelves, SST Tubing/Valves
SKU Description Capacity Temperature Range Electrical Quantity Price Add to Cart
AT75A-UL.110 Vacuum Oven, 5 Heated Shelves, SST Tubing/Valves, UL/CSA Certified 7.5 cu ft ambient to 480°F 110V, 60Hz 1 Each
$8,990
$8,390
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
AT75A-UL.220 Vacuum Oven, 5 Heated Shelves, SST Tubing/Valves, UL/CSA Certified 7.5 cu ft ambient to 480°F 220V, 50/60Hz 1 Each
$8,990
$8,390
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

The Ai AccuTemp 7.5 cu ft vacuum ovens are UL/CSA certified, this certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. Also come standard is the secondary over-temp protection dial, stainless steel tubing, stainless steel vacuum & vent valve, oil-filled vacuum gauge, and two year warranty. With our new internal shelf heating technology, each shelf in these ovens has its own heater, in-shelf temperature sensor and temperature controller, together with great thermal-conductive aluminum and our new low proportional controller technologies, the result is perfect uniformity, accurate temperature, super-fast heating rates, minimum heat loss/exterior temperature and very low power consumption.

Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is 100% quality controlled.

Important! Never leave your oven unattended while operating.

Features

  • KF25 inlet filter keeps your oven clean at all time (included with oven purchase).
  • All stainless steel internal tubing provides higher ultimate vacuum, holds vacuum 10 times longer, and require minimum maintenance.
  • Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
  • All stainless steel vacuum and vent valves gives you cleaner connection, more accurate control and long term durability.
  • Five aluminum heating shelves with individual in-shelf temperature sensor, heater and digital temperature controller.
  • 3rd gen low proportional gain temperature controllers keep your oven temperature within +/- 1°F accuracy, in either °F or °C.
  • Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
  • Dual layer observation window with 3/4" tempered safety glass.
  • 3" thermal insulation prevents heat loss and minimizes the enclosure's outer surface temperature.
  • Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
  • A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
  • Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
  • Built-in station-able swivel casters with locks for ultra-portability.
  • For improved temperature tracking, run the auto-tune procedure as outlined in the manual.
  • All ovens shipped from our New Jersey or Nevada location for quick delivery, and come with two year warranty and lifetime US-based parts and service support.

Manufactured in accordance with

  • UL 61010-1
  • CSA C22.2
  • ISO 9001:2000
  • ISO 12100-1:2003, ISO 12100-2:2003
  • EN1050:1996, EN294:1992, EN60204-1:2006
  • CE

Specifications

Specifications AT75a-UL
Electrical 110V +/-10% 50/60Hz 1-PH 13.6A, 1500 watts
or
220V +/-10% 50/60Hz 1-PH 6.8A, 1500 watts
Heaters 300 watts x 5, built into 5 aluminum shelves, for the fastest, most energy efficient and uniform heating.
Chamber Dimensions 22 x 23.5 x 25" (WxDxH)
Chamber Material Stainless steel
Chamber Capacity 7.5 cubic feet
Temperature Controller 3rd gen low proportional gain, microcomputer PID controlled with LCD display
Temperature Range ambient to 480°F
Temperature Accuracy +/- 1°F
Temperature Uniformity +/- 5% of setpoint
Timer Range 1 to 9999 minutes
Warm-up Time to 100°F: 45 minutes
to 480°F: 2 hours 15 minutes
Ultimate Vacuum Level better than 500 microns/millitorrs
(may vary based on your altitude)
Vacuum Gauge Range 0 to 30 inch mercury
Vacuum Port KF25 flange x 1
Vent Port 3/8" hose barb
Weight Unit: 410 Lbs, shipping: 630 Lbs
Dimensions (WxDxH) Unit: 35 x 31 x 38"
Shipping: 38 x 35 x 43"
Heated Shelves 5 non-removable aluminum shelves, 22 x 23.25" (WxD) each
Optional Stackable Shelves 22 x 23.25 x 2.25" (WxDxH)
Shelves Maximum Area 512 x 5 = 18 sq ft or 2560 inch2
(512 x 10 = 36 sq ft or 5120 inch2 with 5 optional stackable shelves)
Distance Between Shelves 4.5 inches
(2.25 inches with 5 optional stackable shelves)
Door Gasket Silicone
Observation Window 1/2" tempered safety glass
Safety Built-in circuit breaker, controller overheat protection, secondary over-temp protection dial
In-Door Lights White LED
Compliance UL (E482564), CSA, CE
Warranty Two Years
