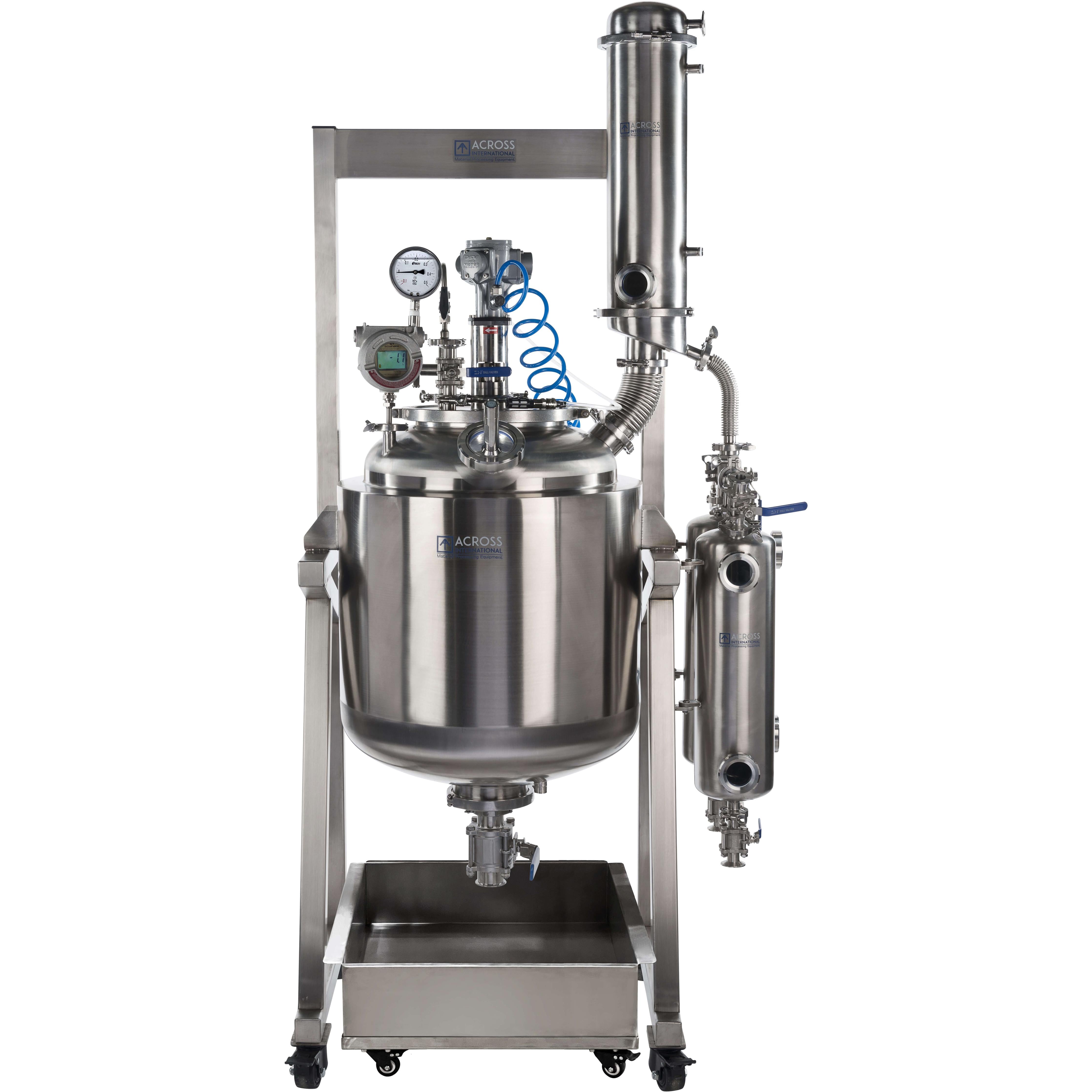

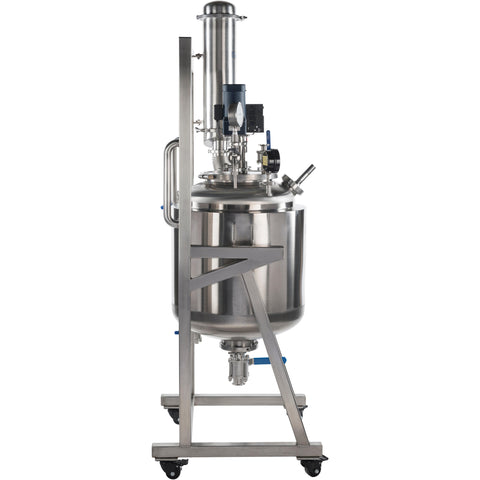

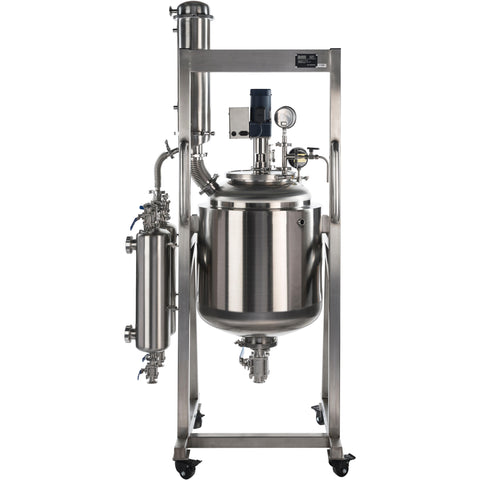

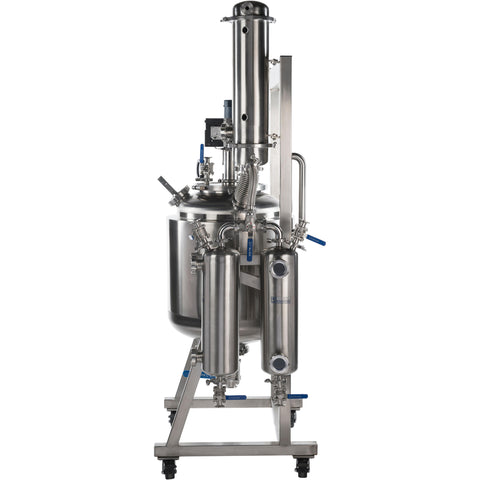

Ai 50L Dual-Jacketed, 316L-Grade Stainless Steel Reactor
- Mobile Splash Bin sold separately
$20,990
$19,940
| Image | SKU | Description | Motor Type | Collection Tank | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|
|
SR50.E.K10 | 50L Dual-Jacketed Stainless Steel Reactor | Electric Stirring Motor (ETL, UL, CSA) | Dual 10L 316L SST tanks w/ manifold | 1 Kit |
|
|
|
SR50.E.K50 | 50L Dual-Jacketed Stainless Steel Reactor | Electric Stirring Motor (ETL, UL, CSA) | 50L 304 SST tank w/ dolly | 1 Kit |
|
|
|
SR50.E.K100 | 50L Dual-Jacketed Stainless Steel Reactor | Electric Stirring Motor (ETL, UL, CSA) | 100L 304 SST tank w/ dolly | 1 Kit |
|
|
|
SR50.PR.K10 | 50L Dual-Jacketed Stainless Steel Reactor | Pneumatic Stirring Motor | Dual 10L 316L SST tanks w/ manifold | 1 Kit |
|
|
|
SR50.PR.K50 | Pneumatic Stirring Motor | Pneumatic Stirring Motor | 50L 304 SST tank w/ dolly | 1 Kit |
|
|
|
SR50.PR.K100 | 50L Dual-Jacketed Stainless Steel Reactor | Pneumatic Stirring Motor | 100L 304 SST tank w/ dolly | 1 Kit |
|
Description
Ai 316L Grade Stainless Steel Reactor Features
- Dual jacketed. Sealed outer insulation jacket provides best temperature performance inside chamber
- All wetted parts on main vessel and lid built with pharmaceutical grade 316L SST
- Shell and tube heat exchanger for the best condensing results
- ElectroPolished internal chamber; Greatly reduces surface roughness by leveling micro-peaks and valleys
- Improved vacuum pressures, out-gassing rates, and pumping speed
- Prolong equipment lifespan by reducing friction and wear
- Much better sterilized and semiconductor grade surface
- Essential for the food and pharmaceutical industries
- Detachable condenser and collection tanks
- Dual collection tanks with big sight glass allows you to drain without breaking vacuum
- High drain port clearance for easy draining or added filtration
- Large ports (top 12" bottom 6") allows easy chamber cleaning
- Top placed vacuum port on condenser provides better flow and condensing results
- No messy cable, with space saving integrated stirring motor controller
- Heavy-duty stainless-steel frame with swivel casters
- Tons of tri clamps adapters available, e.g. tri clamp to hose barb/KF25/NPT
- Flexible bellow condenser connection reduces shipping damage
- Electric motor and controller model is ETL certified to UL and CSA standards
CAUTION!
- The manufacturer is not responsible for caustic chemical related damage to the stainless steel reactor internal and external parts and components.
- Never fill circulated heaters or chillers with water, always use Ai or manufacturer's recommended thermal fluid
- Always leave ample fluid space in heater reservoir to allow fluid heat expansion
Specifications
| Model | SR50 |
|---|---|
| Electric stirring motor | 220V, 50/60Hz, 1~Phase, 200 watts, 1/4 HP Rotation: 450 rpm max. (±8%) Starting torque: 3.0 N.m Rated torque: 1.54 N.m Built-in gearbox ratio: 3:1 to 180:1 Controller: Delta, UL listed |
| Pneumatic stirring motor | Power: 1/4 HP Rotation: 450 rpm max. (±8%) Compressed air pressure range: 30 to 80 psi (0.2 to 0.55 MPa) - Working temperature: -10C to +70C - For constant use: set rpm to 80% of maximum rpm - Motor lubricant Daphne Eponex EP-No. 1 Check/replenish/replace every 500 hours - Air lubricant Type: JIS K2213-1 (ISOVG32) Recommended products: Shell Vitrea Oil 32, JOMO Turbine 32, COSMO Turbine 32 Speed: 2-3 drops per minute - For safety purpose, detach compressed air supply when not in use, left un-attended or at night - Do not run motor un-loaded - Set Air Adjuster to minimum at initial run, make sure motor is working properly, before increasing CFM - Before inspecting unit, stop the motor and detach air supply. Do NOT inspect unit when motor is in action. - Make sure exhaust port/hole is clear from any debris or blockage - Check every 2-3 days: Air Lubricant, Air Filter water drain |
| Port configuration | Vessel lid: 12" triclamp Center motor port: 3" triclamp Drain port: 6" triclamp Drain port on/off valve: 2" triclamp Vacuum port: 1.5" triclamp Condenser recirculating fluid port: 1/2" female NPT Vessel jacket recirculating fluid ports: 1" female NPT 50L/100L collection tanks * Lid: 6" tri-clamp, with 1.5" tri-clamp x 4 * Top of tank: 1.5" tri-clamp with sight glass x 2 * Drain port: 1.5" tri-clamp |
| Main vessel | Volume: 50L Minimum fill volume: 12.5L Material: 316L grade stainless steel Interior finish: ElectroPolished |
| Agitator | Structure: propeller, 3-blade, dual-layer (standard) Style: quick-change Material: 316L grade stainless steel Detachable length: 20 inches |
| Center fluid jacket | Volume: 14L Material: 304 grade stainless steel |
| Outer insulation jacket | Insulation material: perlite, 2", sealed Housing material: 304 grade stainless steel |
| Collection tank | Option 1: 10L x 2, 316L stainless steel, with manifold Option 2: 50L x 1, 304 stainless steel, with dolly (15.5" diameter, 23.5" height, 30" with dolly) Option 3: 100L x 1, 304 stainless steel, with dolly (15.5" diameter, 43" height, 49.5" with dolly) |
| Material | All wetted parts 316L grade stainless steel on main reactor body Rest of reactor in 304 grade stainless steel |
| Main Condenser | Style: shell and tube heat exchanger Condensing area: 0.89 m2 |
| Pressure | Ultimate vacuum level: 1 Torr Maximum positive pressure (C1D1 peer reviewed to 15 psi) Main vessel: atmosphere Fluid jacket: 14 psi |
| Temperature range | -55°C to +250°C (-67°F to +482°F) |
| Temperature sensor/display | Regular: BOOST.TTA.0101, -200C to 480C, 50.5 clamp Explosion proof: BOOST.TTA.0102, -200C to 480C, 50.5 clamp |
| Sealing gasket | Food grade Viton |
| Main Mounting Frame | Heavy duty 2 x 2" 304 grade stainless steel, mounted on four casters |
| Drain port ground clearance | Drain port: 19.5 inches Drain valve: 14 inches |
| Unit/shipping weight | 410 lbs (electric) 385 lbs( air)/ 676 (electric) | 651( Air) |
| Unit/shipping dimensions | Full assembly – 38" x 29" x 76" (WxDxH) Shipping Dimensions – 46" x 35" x 77" (electric) | 46" x 35" x 77" (WxDxH) |
