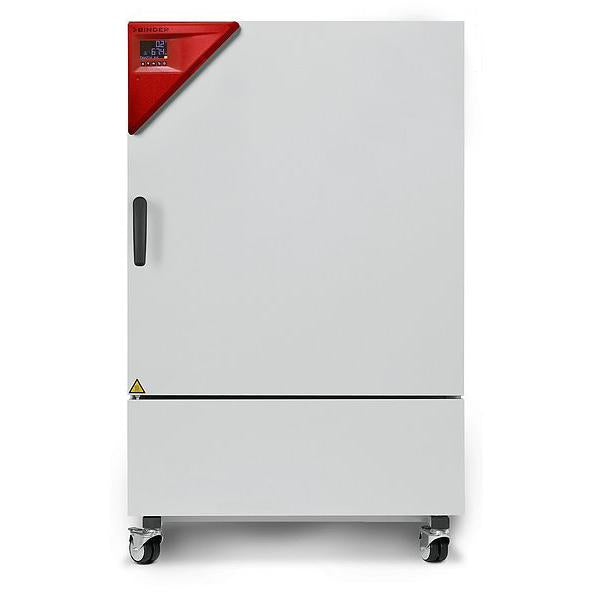

BINDER KBF-S Solid.Line Humidity Test Chambers with large temperature / humidity range
$14,872
and up
| Image | SKU | Description | Capacity | Temperature Range | Humidity Range | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|
|
9020-0367 | Model KBF-S 240 Humidity Test Chamber | 8.7 cu ft | 10 °C to 70 °C | 20 to 80 % RH | 200-240 V, 50/60 Hz, 16 A, UL Certified | 1 Each | $14,872 | |
|
9020-0369 | Model KBF-S 720 Humidity Test Chamber | 24.7 cu ft | 10 °C to 70 °C | 20 to 80 % RH | 200-240 V, 50/60 Hz, 16 A, UL Certified | 1 Each | $20,328 |
Description
The new Solid.Line KBF-S climate chamber is a custom-made solution for long-term testing and accelerated stability testing for pharmaceutical products in accordance with the ICH Q1A guideline. The corrosion-free and condensation-free interior also ensures exceptionally stable temperature and moisture levels, even when fully loaded.
Features:
- Temperature range: 0 °C to 70 °C
- Humidity range: 20% to 80% RH
- APT.line™ preheating chamber technology
- Humidity regulation with capacitive humidity sensor and steam humidification
- LCD to display temperature and humidity along with additional information and alarms
- Internal data logger, measured values can be read out in open format via USB Unit self-test for comprehensive status analysis
- Inner chamber made completely of stainless steel
- 2 stainless steel racks, incl. shelf supports
- Access port with silicone plug, 30 mm, left
- Robust twin casters with brakes, from 240 L
- Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
- Computer interface: Ethernet
- Independent water supply via tank
Documentation
| Product Data Sheets |
|---|
| KBF | KBF-S | KBF P | KBF LQC | KMF Series Brochure |
| KBF-S Series Operating Manual |
Specifications
| SKU | 9020-0367 | 9020-0369 |
|---|---|---|
| Model | KBFS240UL-240V | KBFS720UL-240V |
| Capacity | 8.7 cu ft | 24.7 cu ft |
| Temperature Range | 10 °C to 70 °C | 10 °C to 70 °C |
| Temperature Stability | ±0.1 K at 40 °C | ±0.1 K at 40 °C |
| Temperature Uniformity | ±0.3 K at 40 °C | ±0.3 K at 40 °C |
| Humidity Range | 20 to 80 % RH | 20 to 80 % RH |
| Humidity Stability | 1.5 % RH at 25 °C and 60 % RH | 1.5 % RH at 25 °C and 60 % RH |
| Recovery Time | 11 mins at 40 °C and 75 % RH | 17 mins at 40 °C and 75 % RH |
| Doors | 1 | 2 |
| Interior Dimensions | 19.11" D x 30.93" H x 25.61" W | 22.69" D x 49.3" H x 38.34" W |
| Exterior Dimensions | 31.52" D x 57.5" H x 36.45" W | 35.07" D x 75.8" H x 49.3" W |
| Number of Shelves | 2 standard (9 max.) | 2 standard (15 max.) |
| Maximum Load | 220 lbs | 331 lbs |
| Electrical | 200-240 V, 50/60 Hz, 16 A, UL Certified | 200-240 V, 50/60 Hz, 16 A, UL Certified |
| Energy Consumption | 400 Wh/h at 40 °C and 75 % RH | 500 Wh/h at 40 °C and 75 % RH |
| Noise Level | 52 dB(A) | 52 dB(A) |
| Weight | 355 lbs | 626 lbs |
