Caframo High Speed Collet Set
$658
| SKU | Description | For Use With | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|
| A600SET | High Speed Collet Set | BDC3030 or BDC6015 | 1 Set | $658 |
Description

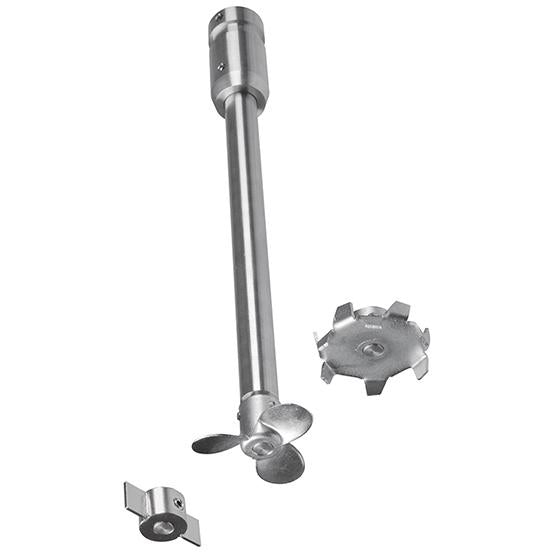

Achieve greater stability stirring at speeds 1800-6000 rpm. Set includes collet, 16 mm (⅝ in) 440 stainless steel shaft with an end turned down to 8 mm (⁵⁄₁₆ in), and three impeller 316 stainless steel blades with 8 mm (⁵⁄₁₆ in) bores. Shaft and blades have polished finish.
Set includes straight blade A163, dispersion blade A164, and pitched blade propeller A165. Tools and hardware are included for installation to a 13 mm (½ in) motor output shaft of overhead stirrer. To be used with BDC3030 or BDC6015 overhead stirrers.
Specifications
| Speed Range | 1800-6000 rpm |
|---|---|
| Fits Motor Shaft | 13 mm (½ in) |
| Collet Material | 316 stainless steel |
| Shaft Material | Polished 440 stainless steel |
| Shaft Length | 260 mm (10 ¼ in) |
| Shaft Diameter | 16 mm (⅝ in) |
| Impeller bores | 8 mm (⁵⁄₁₆ in) |
| A163 Diameter | 40 mm (1 ⁹⁄₁₆ in) |
| A164 Diameter | 64 mm (2 ½ in) |
| Blade Rotation | Left hand |
| Weight | 660 g (1.5 lb) |
