FREE SHIPPING

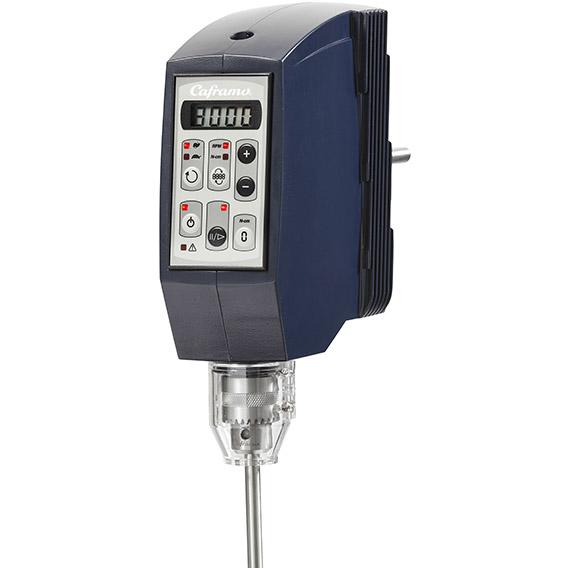

Caframo Universal Model BDC3030 Overhead Stirrer
- Three Year Warranty
- Support Stand, Clamp and Stirring Shaft sold separately
$1,889
| Image | SKU | Description | Volume Maximum | Speed | Viscosity Maximum | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|
|
BDC3030 | Universal Model BDC3030 Overhead Stirrer | 60 L (15.5 US Gallons) | 20 to 3000 rpm | 50,000 mPa·s (50,000 cP) | 120V/230V; 50/60 Hz | 1 Each | $1,889 |
Description
Caframo's high torque stirrers are designed and engineered specifically to meet the continuous demands of heavy industrial use. The heart of the BDC line is the high performance Brushless Direct Current (BDC) motor. A unique two speed transmission provides incredible amounts of power. Caframo stirrers are quiet, dependable, maintenance free and ideal for continuous use.
Features
- Brushless DC motor
- Totally enclosed metal housing
- Electronic control
- Smart two-speed transmission
- Through shaft
- Chuck guard included
Benefits
- High efficiency (less heat)
- Protection from dust and product splashing
- Precise speed adjustment and speed maintenance as viscosity changes
- Transmission selects high-torque or high-speed range
- Easy impeller adjustment saves time
- Safely encloses spinning chuck to protect user
- Protects chuck from splashes
Includes
Stirrer, Calibration certificate, chuck, chuck guard, chuck key, support rod and power cord. Impellers and stands sold separately.
Documentation
| Product Data Sheets |
|---|
| Model BDC3030 Universal Datasheet |
| Model BDC3030 Universal User Manual |
Specifications
| SKU | BDC3030 |
|---|---|
| Speed | 20 to 3000 rpm |
| Volume Maximum | 60 L (15.5 US Gallons) |
| Viscosity Maximum | 50,000 mPa·s (50,000 cP) |
| Torque Maximum | 341 Ncm (30 in-lbs = 480 in-oz) |
| Output Power | 150 Watts (⅕ hp) |
| Speed Display | Yes |
| Speed Accuracy | ± 1 rpm or ± 1% of reading |
| Torque Display | Yes |
| Torque Accuracy | ± 12 Ncm (± 1 in-lb) or ± 5% of reading |
| Zero Torque | Yes |
| Timer | No |
| Through Shaft | Yes |
| Chuck Maximum Shaft Diameter | 10 mm (⅜ in) |
| Chuck Guard | Yes |
| Rotation Direction | Clockwise only |
| Housing Material | Cast aluminum |
| Weight | 5 kg (11 lb) |
| Ambient Temperature Operation | 5-40 °C (41-104 °F) |
| Relative Humidity Operation | 80 % |
| Safety Certifications | CSA listed to Canada and US standards |
| Warranty | 3 years |
