Desiccators, Glass
$94.75
$85
and up
| Image | SKU | Description | Size | Flange OD / ID | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|
|
DSGL150 | Glass Desiccator | 6 in (150 mm) | 150 mm / 140 mm | 1 Each |
|
|
|
DSGL210 | Glass Desiccator | 8 in (200 mm) | 200 mm / 180 mm | 1 Each |
|
|
|
DSGL300 | Glass Desiccator | 12 in (300 mm) | 300 mm / 234 mm | 1 Each |
|
Description

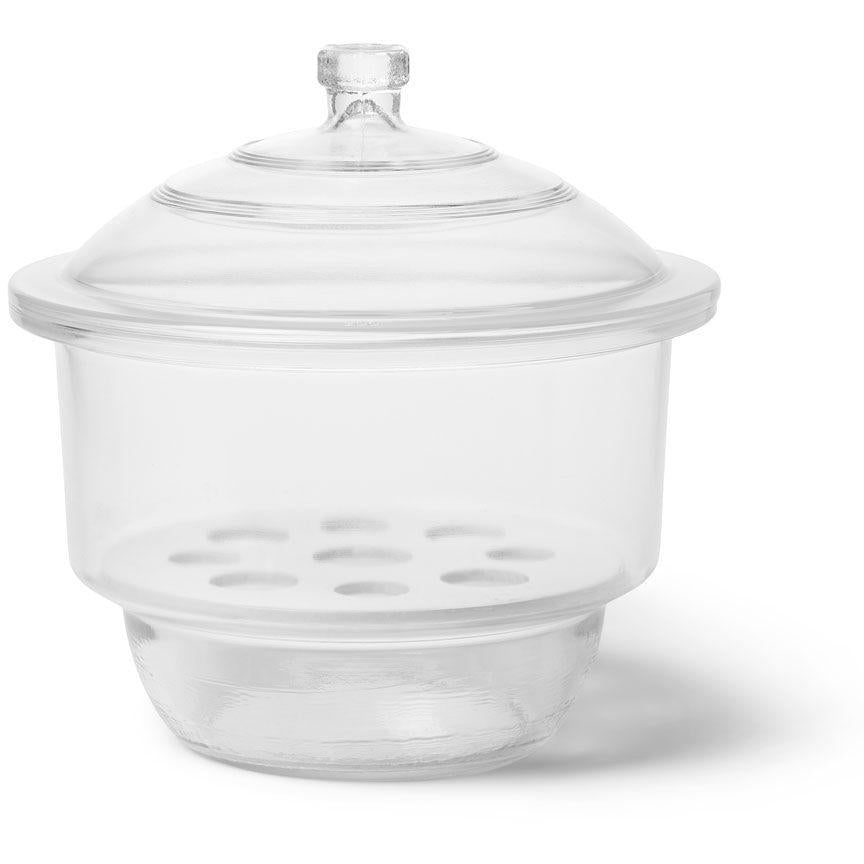

These clear non-vacuum desiccators are manufactured from borosilicate glass and include a borosilicate glass lid with a molded-in knob. Clear glass provides excellent visibility and can be autoclaved. The rims of the desiccator and lid are ground glass and require greasing before use to create an air-tight seal.
Also includes a perforated porcelain desiccator plate that fits onto a ridge above the lower chamber. A standard drying agent such as silica or anhydrous calcium chloride can be positioned in the lower chamber.
Specifications
| Item | Size | Flange O.D. / I.D. | Plate O.D. | Height | Maximum Clearance Above Plate |
|---|---|---|---|---|---|
| DSGL150 | 6" / 150 mm | 208 mm / 155 mm | 132 mm | 230 mm | 130 mm |
| DSGL210 | 8" / 200 mm | 267 mm / 210 mm | 184 mm | 290 mm | 180 mm |
| DSGL300 | 12" / 300 mm | 363 mm / 300 mm | 274 mm | 365 mm | 215 mm |
