Filtering Bottle, Large Volume, Vacuum Hose Connection
| SKU | Description | Capacity | Graduation Range | Graduation Interval | OD x H | Stopper Size | For Tubing Size | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| FFB5340-10000 | Heavy Wall Vacuum Filtering Bottle | 10 Liter | 2000 - 8000 mL | 1000 mL | 218 x 495 mm | #13 | 0.5 in | 1 Each |
|
|
| FFB5340-20000 | Heavy Wall Vacuum Filtering Bottle | 20 Liter | 4000 - 16000 mL | 2000 mL | 290 x 588 mm | #13.5 | 0.5 in | 1 Each |
|
Description

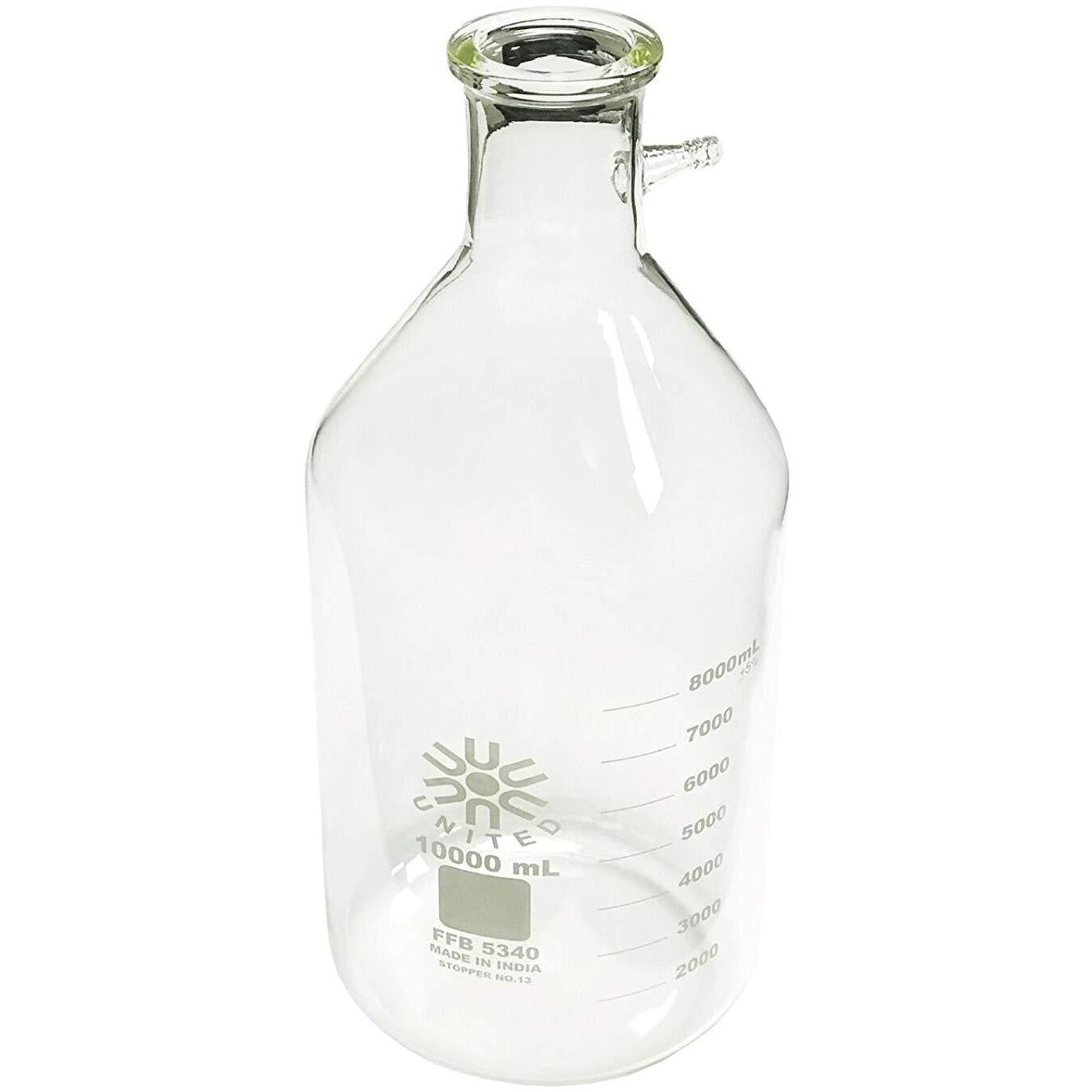

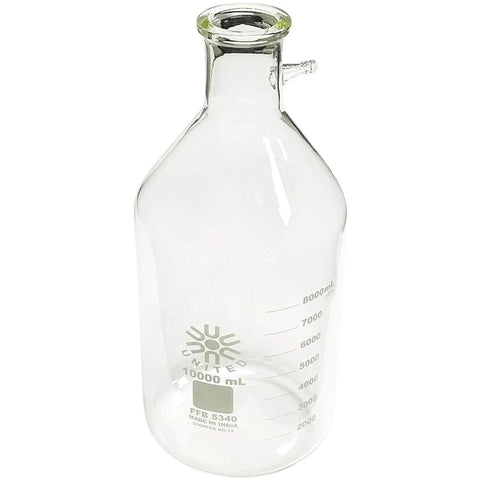

The Heavy Wall Borosilicate Glass Filtering Bottles are perfect for filtering large volumes of liquid. The thick walls and sturdy design enables this filtering bottle to withstand vacuum filtration without imploding.
The 10 Liter bottle is graduated in 1000mL increments on a scale from 2000mL to 8000mL, with an accuracy of +/- 5%.
The 20 Liter bottle is graduated in 2000mL increments on a scale from 4000mL to 1600mL with an accuracy of +/- 5%.
The 10 Liter & 20 Liter Neck size fits a #13 rubber stopper. Sidearm vacuum hose barb on neck for easy connection to vacuum pump.
For safe use of filtration glassware, always wear eye and face protection when working with a vacuum or pressure apparatus. Know the chemistry of the filter flask contents to make sure that they are appropriate for use under high vacuum.
- Capacity 10L (10000mL) or 20L (20000mL)
- Borosilicate 3.3 glass for lower thermal expansion
- Neck size fits #13 rubber stopper
- Sidearm tubulation on neck, 1/2" outer diameter
