Hermle Sieva 3 Filtration Centrifuge Rotors
| Image | SKU | Description | Capacity | Type | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|
|
Z600-500-P | Centrifugal Basket | 500 mL | Perforated | 1 Each |
|
|
|

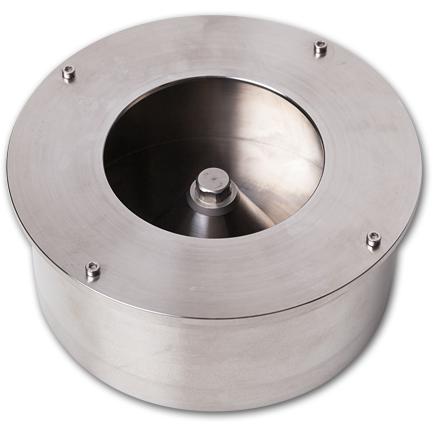

Z600-500-NP | Centrifugal Basket | 500 mL | Non-Perforated | 1 Each |
|
Description
Optional 500mL filtration baskets are available in both perorated and non perforated for use with the Hermle Sieva 3 Filtration Centrifuge.
Clarified liquids exit the unit via the drain located on the side of the unit.
The lid of the basket is closed with four screws. Please loosen the screws with the supplied allen key and remove it. Now you can gather the solids from the basket remaining in there after the run. The sealing made of NBR-rubber is replaceable.
To guarantee an evenly spread out of the centrifugal material and the possible rinsing agent, the center of the basket is molded cone-shaped towards the lid.

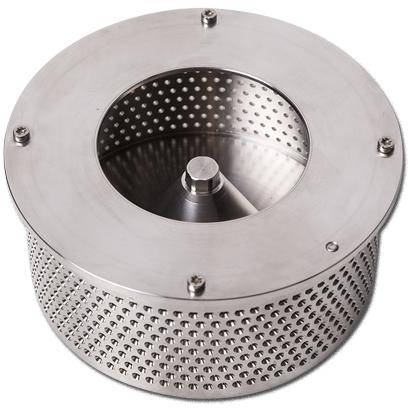

The Z600-500-P Perforated Centrifugal Basket Due features the distance of 2.3 mm from the upper row of perforation to the top and 5.2 mm from the lower row to the bottom of the rotor the filter paper sheets can easily be inserted, without any danger of underwashing.
- There are 10 rows of perforations at this rotor.
- Diameter of the perforation holes: 2.5 mm
- Horizontal Distance from hole to hole: 5.5 mm
- Vertical distance from hole to hole: 5.5 mm
- Inner diameter of the basket: 140 mm
- Outer diameter of the basket: 148 mm
