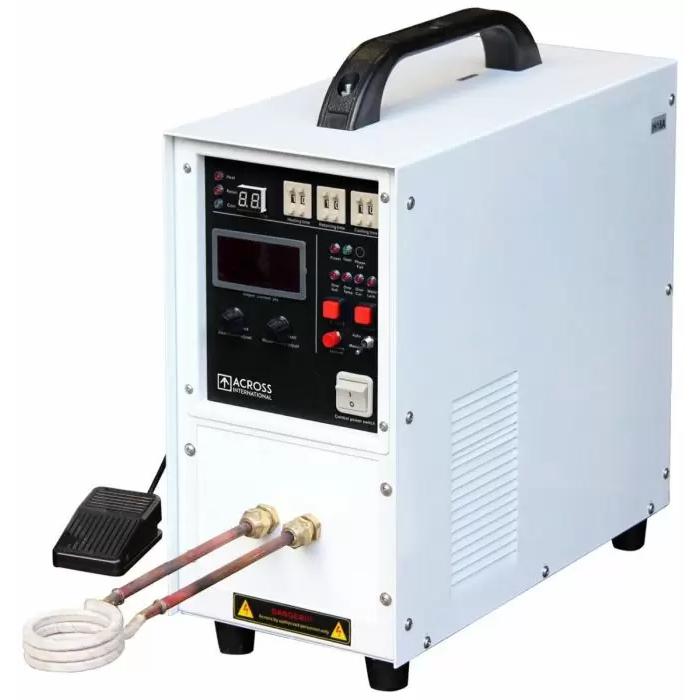

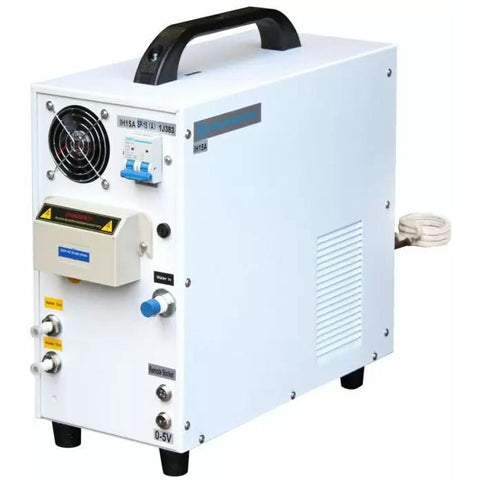

Induction Heater, Mid-Frequency, Compact, 15kW, 30-80KHz

The IH series mid-frequency induction heaters are designed to operate between 30 and 80 kHz. Mid-frequency heaters are excellent for small parts heating, cutting, diamond tool brazing, soldering copper plumbing fittings, auto parts heat-treating, annealing of stainless steel containers and more.

Mid-frequency induction heaters are the simplest in terms of design and implementation. With their low cost of ownership and maintenance, they are the most popular and reliable machines. The 15kW models are especially popular for their large power capacity and small footprint at an affordable price. This makes them standard equipment for many factories, labs and workshops where 230V AC is available.

IH15A Induction Heater Features

• Ease of use: just plug in the power and connect the water cooling system, our simple instruction allows you to use the heater in 15 minutes.
• Light weight (only 40 Lb), portable (with handle), instant heat and up to 90% energy savings
• Precise control with digital time and current displays.
• Remote foot switch for safer operation.
• Dual automatic and manual modes.
• Optional graphite, MgO and SiO2 crucibles available. (melting material decides crucible type, weight and size of the material decide crucible size)

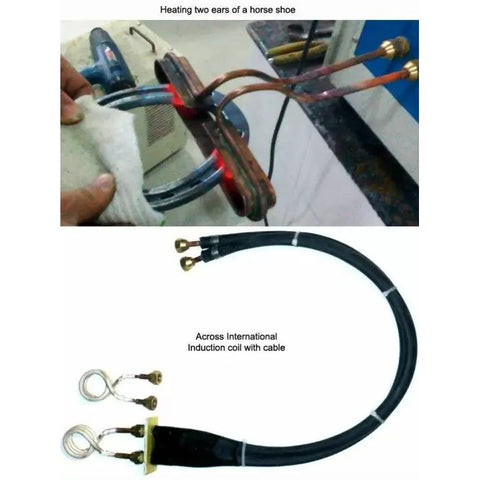

• Custom coil design available (fixed coil or coil on a cable so it can be used by hand like a wand)
• Frequency is non-adjustable, it depends on the coil design (diameter of turns, numbers of turns, copper tubing diameter and total length).
• ISO 9001:2008 registered manufacturer.

Safety Features

• Overvoltage protection: machine shuts down when input voltage is over 245V. Overvoltage light will turn on and buzzer will sound continuously. Alarm and light shut off automatically when voltage goes below 245V.
• Overheat protection: if sensor detects IGBT heat sink temperature is over 55⁰C, machine will shut down, overheat light will turn on and buzzer will sound continuously. Increase water pressure or lower water temperature until alarm goes off itself.
• Overcurrent/malfunction protections: machine will shut down, indicator light will turn on and buzzer will sound continuously if one of these situations occurs:

  One of the machine parts becomes overheated.
  Interfering signal detected.
  Short circuit between work pieces and induction coils
  Machine failures.
  Induction coils touching each other.
  The input voltage is too low.
  Low water pressure protection: if water pressure goes below 29 PSI.

Important

• Always wear protective gear including goggles when operating the machine. Crucibles must be covered at all times during operation. Across International is not responsible for any injury or damage caused by misuse.
• Do not run no-load operation for a long period of time, it might cause damage to the machine.

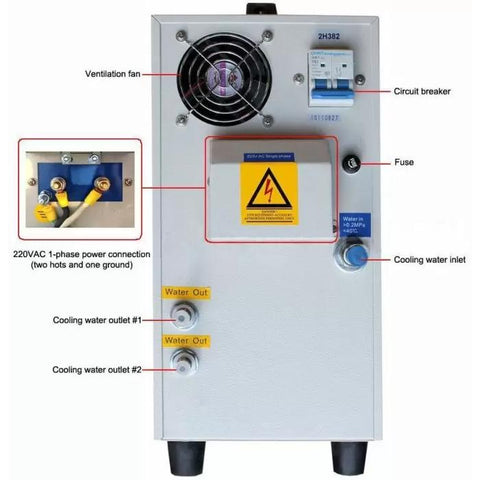

• Circulating water must be pure, soft and below 45C.
• Machine must be grounded properly at all times.
• Do NOT use single-turn coil if coil diameter is smaller than 4 inches, it will cause high frequency damage to the machine.
• Absolutely no thread tape (or related material) may be used in the installation of induction coils.
