Lab Armor® Bead Baths
| Image | SKU | Description | Volume | Temperature Range | Temperature Stability | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|
|

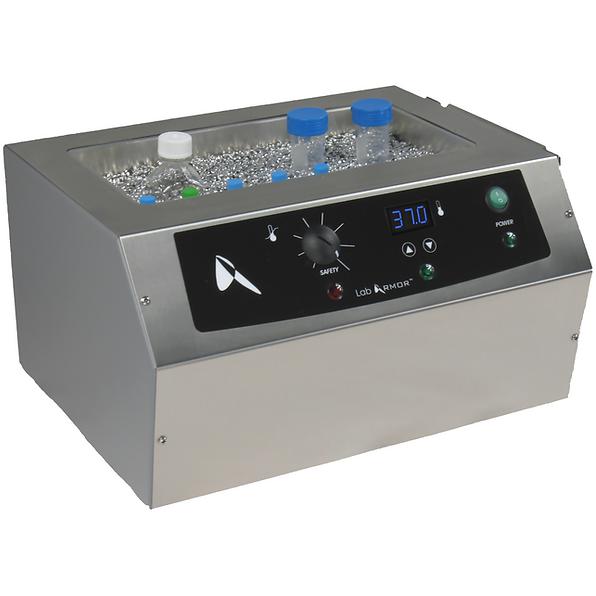

74300-706 | Lab Armor® Bead Bath without Beads | 6 L (0.21 cu ft) | ambient +5 to 80 °C | 0.1 °C | 100-120 V, 50/60 Hz | 1 Each | $1,428 | |
|
74309-706 | Lab Armor® Bead Bath with 5L Lab Armor Beads | 6 L (0.21 cu ft) | ambient +5 to 80 °C | 0.1 °C | 100-120 V, 50/60 Hz | 1 Each | $1,670 | |
|

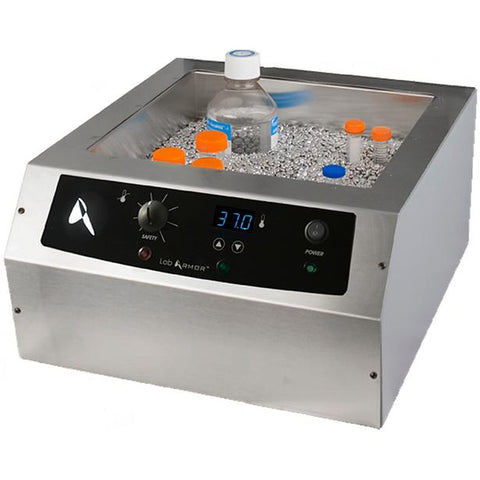

74300-714 | Lab Armor® Bead Bath without Beads | 14 L (0.5 cu ft) | ambient +5 to 80 °C | 0.1 °C | 100-120 V, 50/60 Hz | 1 Each | $1,466 | |
|
74309-714 | Lab Armor® Bead Bath with 12L Lab Armor Beads | 14 L (0.5 cu ft) | ambient +5 to 80 °C | 0.1 °C | 100-120 V, 50/60 Hz | 1 Each | $2,342 | |
|

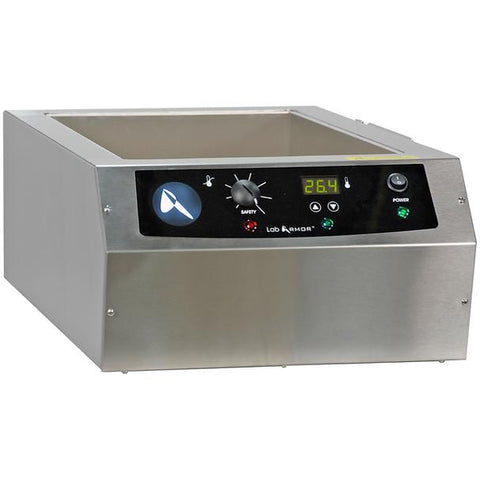

74300-720 | Lab Armor® Bead Bath without Beads | 20 L (0.71 cu ft) | ambient +5 to 80 °C | 0.1 °C | 100-120 V, 50/60 Hz | 1 Each | $1,701 | |
|
74309-720 | Lab Armor® Bead Bath with 15L Lab Armor Beads | 20 L (0.71 cu ft) | ambient +5 to 80 °C | 0.1 °C | 100-120 V, 50/60 Hz | 1 Each | $2,813 |
Description
Eco-friendly. State of the art design. Breakthrough contamination control. Three sizes. No more harmful germicides. 50% more energy efficient than a lab water bath.
Gable Cover Lid included with each unit.
Unique Design
Lab Armor Bead Baths were specifically designed to work with Lab Armor Beads to optimize their performance.
Uniform Temperatures
With Bead Bath designed expressly for beads, temperatures are consistent and uniform everywhere in the bath. Thermal uniformity is +/-1.0 at 37ºC.
Always On
The bath always stays on, so you don’t have to plan around warmup times. You don’t need to worry about refilling or low water burnout because there is no water to evaporate.
Lab Armor Bead Baths are up to 50% more energy efficient than a standard lab water bath.
Stays Clean
Lab Armor reduces the risk of contamination.
Contaminated samples and reagents result in distorted data and unpredictable outcomes.
Stays Organized
Unlike water baths that require racks, floats, and bottleneck weights, Bead Bath naturally holds things in place without accessories. So no more floating accidents.
Specifications
| Model | Lab Armor® Bead Bath 6 Liter | Lab Armor® Bead Bath 14 Liter | Lab Armor® Bead Bath 20 Liter |
|---|---|---|---|
| Volume | 0.21 cu.ft. (6 L) | 0.5 cu.ft. (14 L) | 0.71 cu.ft. (20 L) |
| Operating Temperature Range | Ambient +5°C to 80°C | Ambient +5°C to 80°C | Ambient +5°C to 80°C |
| Temperature Uniformity (Midrange) | 1.0°C | 1.0°C | 1.0°C |
| Temperature Stability (Midrange) | 0.1°C | 0.1°C | 0.1°C |
| Controller Type | Digital | Digital | Digital |
| Display Resolution | 0.1°C | 0.1°C | 0.1°C |
| Overtemperature Protection | Yes | Yes | Yes |
| Exterior Dimensions (W × D × H) | 15.9 × 12.3 × 8.5 in. | 15.9 × 18.5 × 8.5 in. | 15.9 × 23.4 × 8.5 in. |
| Interior Dimensions | 12 × 6.1 × 6 in. | 12 × 12.1 × 6 in. | 12 × 17.1 × 6 in. |
| Max HVAC Load | 1.63K BTUs/hr | 2.45K BTUs/hr | 3.27K BTUs/hr |
| Unit Weight (without beads) | 13.0 lbs | 18.0 lbs | 22.0 lbs |
| Safety Certifications | UL 61010-1, EN 61010-1, CSA 61010-1, CE | UL 61010-1, EN 61010-1, CSA 61010-1, CE | UL 61010-1, EN 61010-1, CSA 61010-1, CE |
| Volume | 0.21 cu.ft. (6 L) | 0.5 cu.ft. (14 L) | 0.71 cu.ft. (20 L) |
Documentation
| Product Data Sheets |
|---|
| Lab Armor Bead Bath User Manual |
