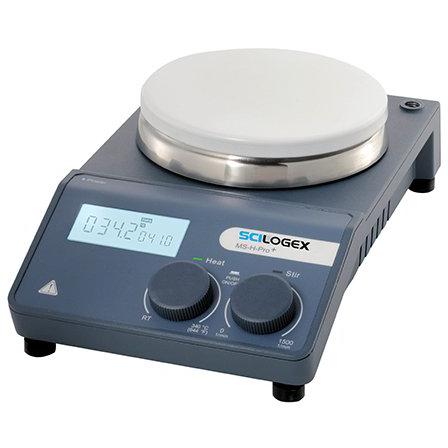

Scilogex SCI340-Pro Circular-top LCD Digital Hotplate Stirrer
$774
$580
SKU | Description | Plate Dimensions | Temperature Range | Speed Range | Plate Material | Electrical | Quantity | Price | Add to Cart |
---|---|---|---|---|---|---|---|---|---|
861442019999 | Scilogex SCI340-Pro Digital Hotplate Stirrer | 5 in diameter | Ambient to 340 °C | 100 to 1500 rpm | Ceramic Coated Stainless Steel | 110V, 50/60Hz | 1 Each |
|
Description
The SCI340-Pro is one of the most technically advanced hotplate-stirrers in the marketplace. With independent back-lit LCD displays for both heat and stirring functions and PID technology and controls temperature at +/- 1ºC. It also incorporates a DC brushless motor for extremely long life and excellent performance.
Scilogex 340°C magnetic hotplate stirrers include all leading safety standards and features for superior ease of use and are cost-effective. They are widely used in chemical synthesis, physical and chemical analysis, biopharmaceuticals, etc.
Features
- Heat only, stir only or heat and stir together functions, High-resolution LCD display shows actual temperatures and speed
- Digital speed control with max. speed up to 1500rpm
- External temperature control is possible by connecting the optional temperature sensor(PT-1000) with accuracy at ±0.2°C
- Max. stirring quantity of H2O at 20L
- RS232 function provides PC control and data transmission (free software available)
- The "HOT" warning will flash if the plate temperature is above 50°C even when the hotplate is turned off
- Automatic spin bar retrieval
- Low temperature stability
- Microprocessor temperature control
- Stainless steel work plate with ceramic coating provides excellent chemical-resistance
- Accessory reaction blocks for flasks and vessels sold separately
- Electronic speed control for constant speed even during changes in load
- Brushless DC motor is maintenance free
- High magnetic adhesion
- Free software for control data logging by PC
- Comes with a free 50mm L x 5mm Dia. Magnetic Stir bar
- cTUVus approved for UL and CSA
- 2 Year Warranty
Specifications
Specifications | 861442019999 |
---|---|
Work plate dimension | φ135mm (5 inch) |
Work plate material | stainless steel cover with ceramic |
Motor type | Brushless DC motor |
Motor input power | 18W |
Motor output power | 10W |
Power | 550W |
Heating output | 500W |
Voltage | 110V, 50/60Hz |
Stirring positions | 1 |
Max. stirring quantity [H2O] | 20L |
Max. magnetic bar [length] | 80mm |
Speed range | 100 to 1500rpm, resolution ±1rpm |
Speed display | LCD |
Temperature display | LCD |
Heating temperature range | Room Temp.to 340°C, increment 1°C |
Temperature control accuracy | ±1°C (<100°C); ±1% (>100°C) |
Over temperature protection | 360°C |
Temperature display accuracy | ±0.1°C |
External temperature sensor | PT1000 (accuracy ±0.2) |
"Hot" warning | 50°C |
Data connector | RS232 |
Protection Class | IP42 |
Dimension [WxDxH] | 160×280×85mm |
Weight | 2.8kg |
Permissible ambient temperature and humidity | 5-40°C, 80%RH |
