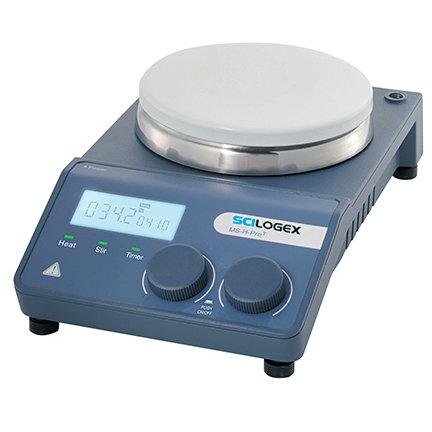

Scilogex SCI340-ProT Circular-top LCD Digital Hotplate Stirrer
SKU | Description | Plate Dimensions | Temperature Range | Speed Range | Plate Material | Electrical | Quantity | Price | Add to Cart |
---|---|---|---|---|---|---|---|---|---|
861492019999 | Scilogex SCI340-ProT Digital Magnetic Hotplate Stirrer | 5 in diameter | Ambient to 340 °C | 100 to 1500 rpm | Ceramic Coated Stainless Steel | 110V, 50/60Hz | 1 Each |
|
Description
The SCI340-ProT is one of the most technically advanced hotplate-stirrers in the marketplace and features an independent back-lit LCD display for both heat, stirring and timer functions and PID technology. The MS-H-Pro-T controls temperature at +/- 1ºC. Simply set the timer from 1min to 99hr-59min and the hotplate will heat at the target temperature for the set time period and automatically turn off. If the stirring function is activated, the unit will continue to stir until switched off. The SCI340-ProT also has a DC brushless (spark free) motor for extremely long life and excellent performance.
Scilogex 340°C magnetic hotplate stirrers include all leading safety standards and features for superior ease of use and are cost-effective. They are widely used in chemical synthesis, physical and chemical analysis, biopharmaceuticals, etc.
Features
- Heat only, stir only or heat and stir together functions, High-resolution LCD display shows actual temperatures and speed
- Digital speed control with max. speed up to 1500rpm
- External temperature control is possible by simply connecting a PT-1000 temperature sensor (sold separately) with accuracy at ±0.2°C
- Max. stirring quantity of H2O at 20L
- RS232 function provides PC control and data transmission (free software available)
- Wide range timer function from 1min to 99h59min
- The "HOT" warning will flash if the plate temperature is above 50°C even when the hotplate is turned off
- Automatic spin bar retrieval
- Low temperature stability
- Digital temperature control with max. temperature at 340°C
- Stainless steel work plate with ceramic coating provides good chemical-resistant performance
- Accessory reaction blocks for flasks and vessels available - sold separately
- Electronic speed control for constant speed even during changes in load
- Brushless DC motor is maintenance free
- High magnetic adhesion
- Comes with a free 50mm L x 5mm Dia. Magnetic Stir bar
- cTUVus approved for UL and CSA
- 2 Year Warranty
Specifications | 861492019999 |
---|---|
Work plate dimension | φ135mm (5 inch) |
Work plate material | stainless steel cover with ceramic |
Motor type | Brushless DC motor |
Motor input power | 18W |
Motor output power | 10W |
Power | 550W |
Heating output | 500W |
Voltage | 110V, 50/60Hz |
Stirring positions | 1 |
Max. stirring quantity [H2O] | 20L |
Max. magnetic bar [length] | 80mm |
Speed range | 100 to 1500rpm, resolution ±1rpm |
Speed display | LCD |
Temperature display | LCD |
Heating temperature range | Room Temp.to 340°C, increment 1°C |
Temperature control accuracy | ±1°C (<100°C); ±1% (>100°C) |
Over temperature protection | 360°C |
Temperature display accuracy | ±0.1°C |
External temperature sensor | PT1000 (accuracy ±0.2) |
"Hot" warning | 50°C |
Timer function | 1min to 99h 59min |
Data connector | RS232 |
Protection Class | IP42 |
Dimension [WxDxH] | 160×280×85mm |
Weight | 2.8kg |
Permissible ambient temperature and humidity | 5-40°C, 80%RH |
