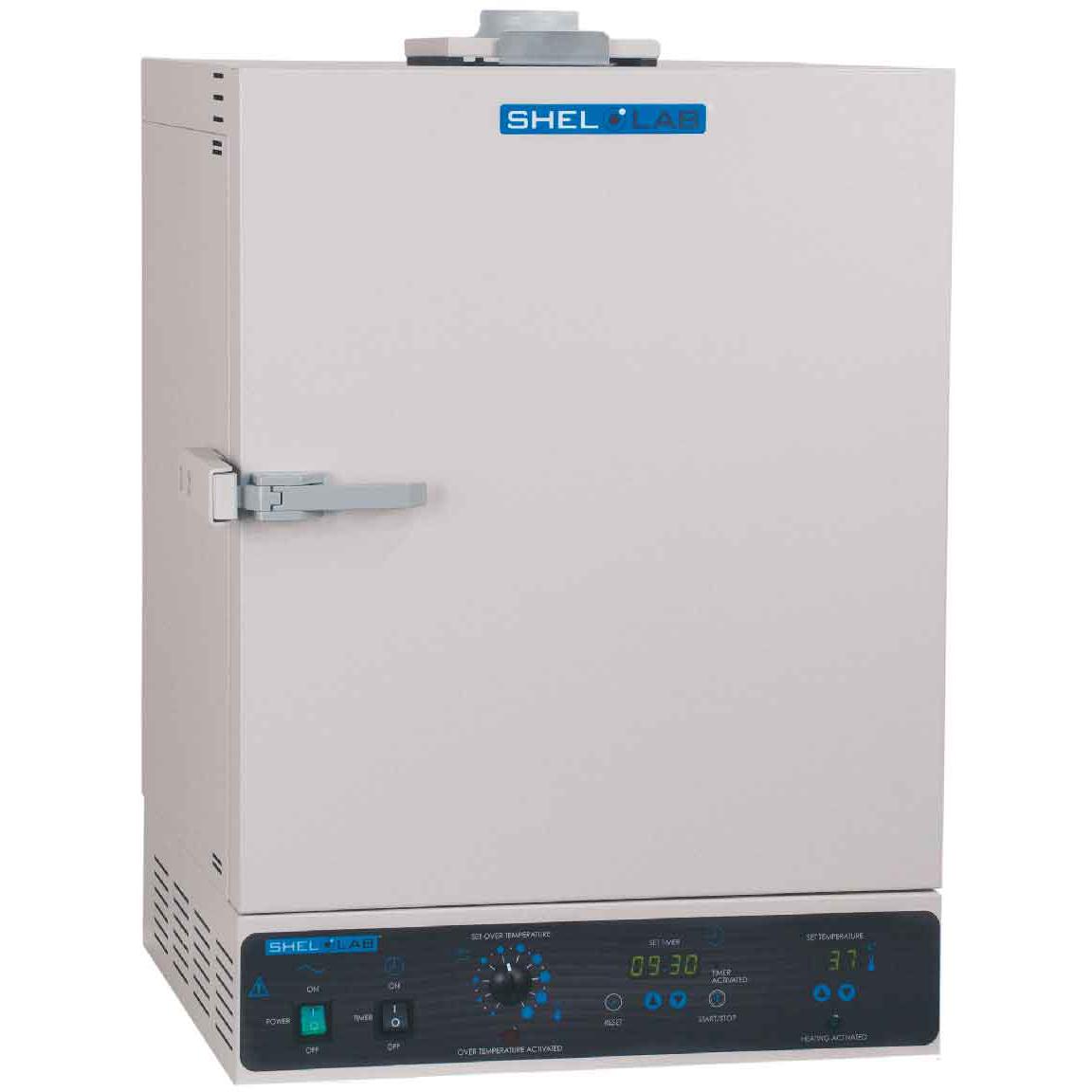

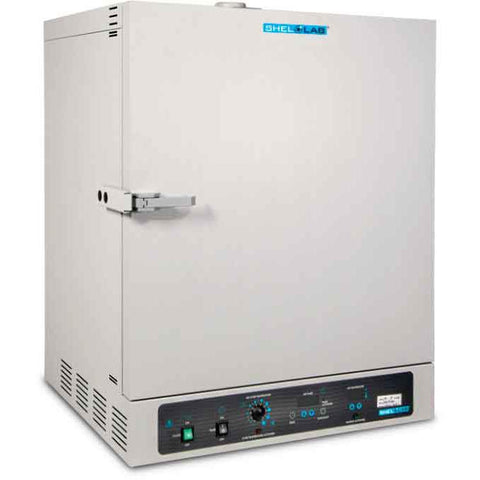

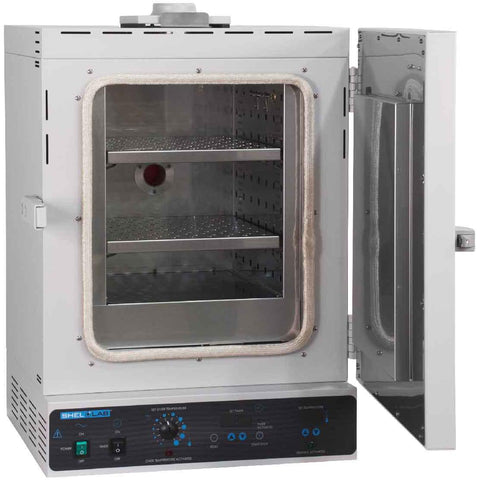

The SMO1 and SMO3 have a quick ramp-up time to 306°C for faster cycle times. These units include an advanced PID temperature control system for sensitive response. These ovens are recommended for critical and analytical use in laboratory and pilot plant product research. Typical applications for the oven include aging, asphalt testing, curing, drying, pre-heating, conditioning, and life cycle testing. These units are equipped with a stainless-steel interior for long-life operation and easy cleaning. Their triple wall construction minimizes external wall temperature which meets CE requirements to keep work spaces cool.The SMO Series forced air ovens deliver precise uniformity, air distribution and the peace of mind expected of the SHEL LAB brand.
Features
- Embedded Microprocessor Control with Countdown Timer
- Horizontal Forced Airflow
- 1.75in (45mm) Access Port
- UL/CSA Approved
- CE Approval
- DIN 12880 Compliant
- 24 Month Limited Warranty
Specifications
| Model |
SMO1 |
SMO3 |
SMO5 |
| Exterior Dimensions (W × D × H) |
22.7" × 23.5" × 31.5" |
26.9" × 28.6" × 34" |
31.4" × 28.1" × 38.8" |
| Interior Dimensions (W × D × H) |
12.1" × 13.7" × 14.5" |
16.5" × 19.5" × 16.2" |
21" × 19.4" × 20.7" |
| Volume |
1.4 cu. ft. |
3.0 cu. ft. |
4.9 cu. ft. |
| Shelf Dimensions |
11.9" × 13.6" |
16.1" × 18.8" |
20.6" × 18.8" |
| Unit Weight |
126.0 lbs |
170.5 lbs |
208.0 lbs |
| Interior Metal |
430 Stainless Steel |
430 Stainless Steel |
430 Stainless Steel |
| Exterior Metal |
Painted Cold Roll Steel |
Painted Cold Roll Steel |
Painted Cold Roll Steel |
| Operating Temperature Range |
Amb +20°C - 306°C |
Amb +20°C - 306°C |
Amb +20°C - 306°C |
| Temperature Uniformity - Midrange |
2.3 °C |
1.8 °C |
1.8 °C |
| Temperature Stability - Midrange |
0.2 °C |
0.3 °C |
0.3 °C |
| Controller Type |
Digital |
Digital |
Digital |
| Display Resolution |
0.1 °C |
0.1 °C |
0.1 °C |
| Power Voltage, Frequency |
110-120 VAC, 50/60 Hz, 12.0 Amps |
110-120 VAC, 50/60 Hz, 14.0 Amps |
110-120 VAC, 50/60 Hz, 14.0 Amps |
| Safety Certifications |
UL 61010-1, EN 61010-1, CSA 61010-1, CE |
UL 61010-1, EN 61010-1, CSA 61010-1, CE |
UL 61010-1, EN 61010-1, CSA 61010-1, CE |
