Vacuum Traps, O-Rings, Airfree, Schlenk
$113.80
$90
and up
| SKU | Description | Quantity | Price | Add to Cart |
|---|---|---|---|---|
| AF-0200-01 | Complete Schlenk Vacuum Trap, O-Ring, Airfree | 1 Each |
|
|
| AF-0200-02 | Vacuum Trap Body Only, Airfree, Schlenk, 57mm O-Ring Flange | 1 Each |
|
|
| AF-0200-03 | Vacuum Trap Stopper Only, Airfree, Schlenk, 57mm O-Ring Flange | 1 Each |
|
Description

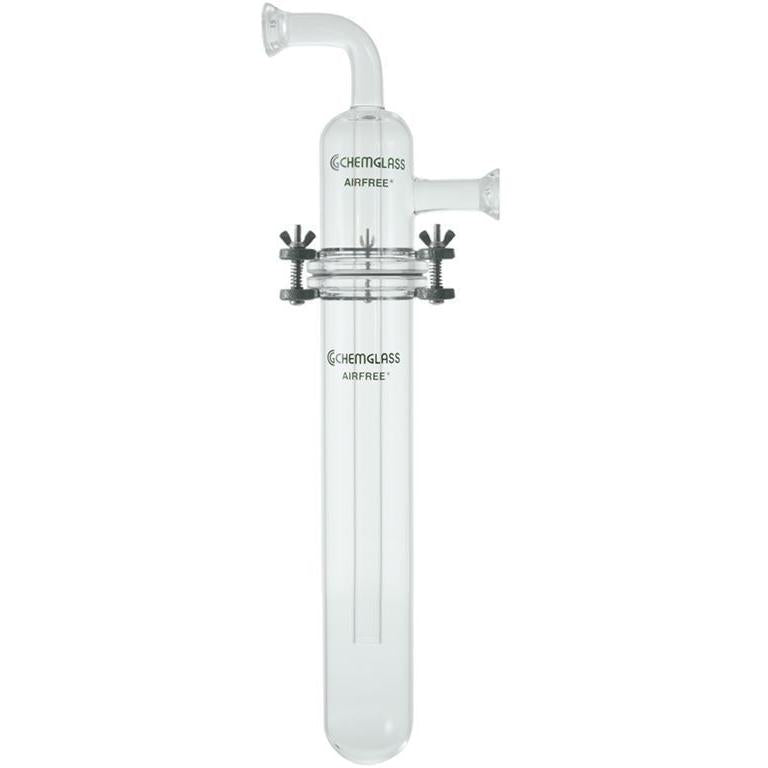

Two-piece vacuum trap with #15 o-ring joints on both the inlet and outlet ports. The seal between the trap stopper and body is made with a 57mm flat o-ring flange for total grease-free operation when used with either the AF-0060 or AF-0061 manifolds. Trap body is 57mm OD x 300mm in length to be used with a 4,300mL dewar flask (CG-1593-05 or CG-1594-05). Complete item consists of the trap stopper and body, one CG-139-02 horseshoe clamp, one #331 Viton o-ring and two #116 Viton o-rings.
