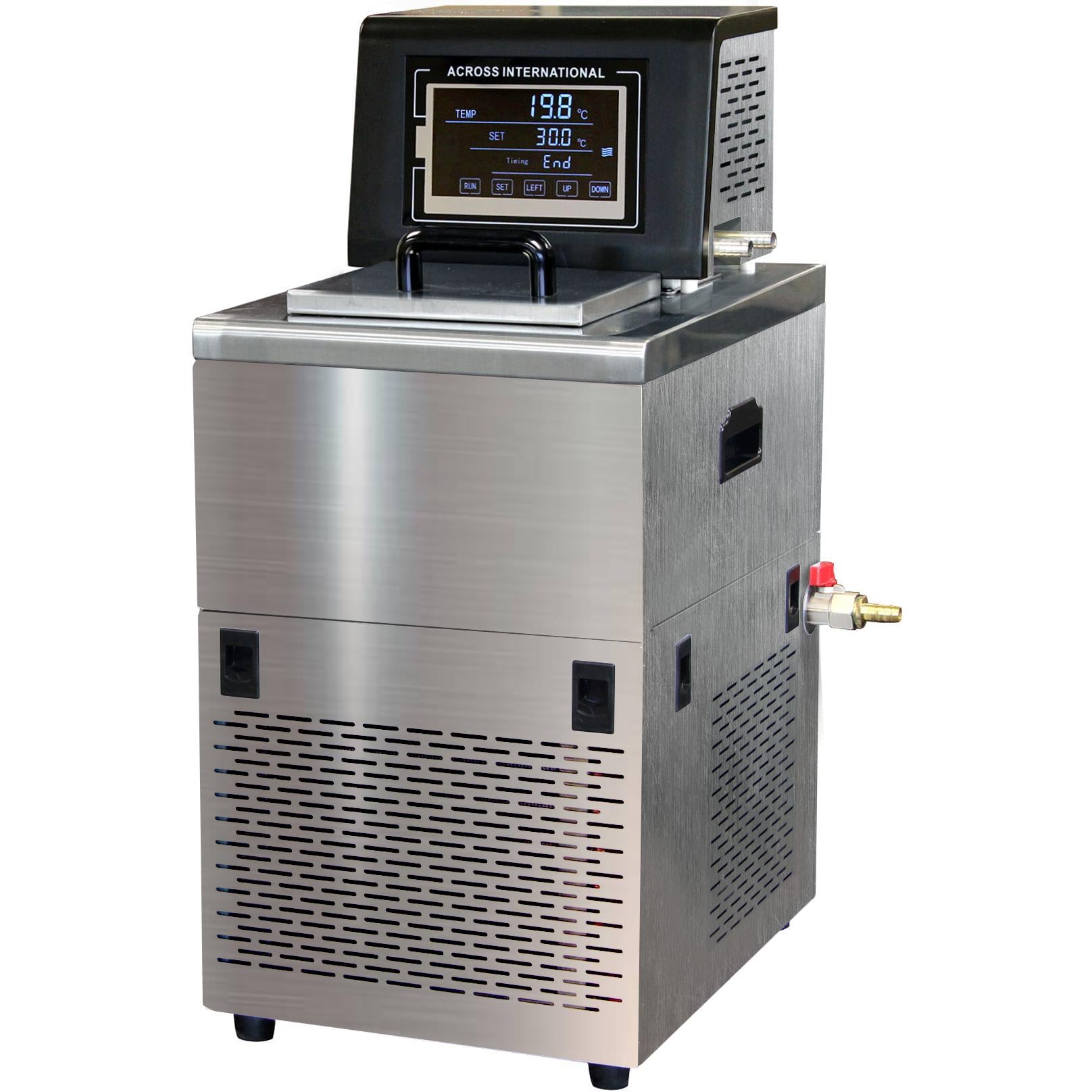

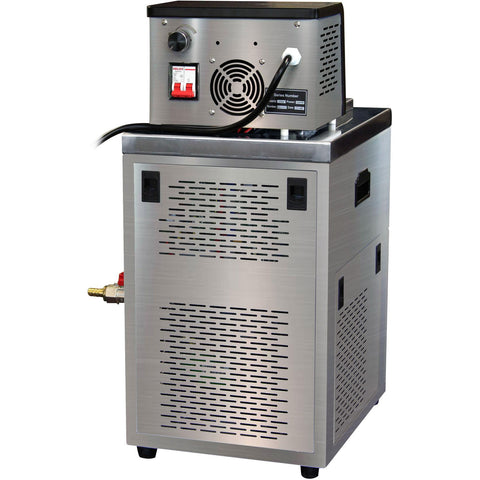

Ai C20 Series Compact Recirculating Chiller, 7 L, -20 to 99°C, Stainless Steel
| SKU | Description | Filling Volume | Temperature Range | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|
| C20-7SST.110 | Ai Compact Recirculating Chiller, Stainless Steel | 7.3 L | -20 to 99 °C (No load) | 110V, 60Hz, 1-PH, 2,500W, UL/CSA Certified | 1 Each |
|
|
| C20-7SST.220 | Ai Compact Recirculating Chiller, Stainless Steel | 7.3 L | -20 to 99 °C (No load) | 220V, 60Hz, 1-PH, 2500W, UL/CSA Certified | 1 Each |
|
Description
Ai C20 series recirculating chillers are the true thermostatic control laboratory chiller, this closed laboratory chiller is ideal for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.
Ai C20 are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while 2nd generation controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.
IMPORTANT! -20°C untimate temperatures are tested under empty load conditions (no rotary evaporators or reactors attached).
Features
- ETL tested to UL and CSA standards
- All stainless steel finish
- Powerful 2,000 watts heater
- Adjustable pumping speed up to 20 liters per minute
- 2nd generation 7" TFT touch screen controller
- No dry ice or liquid nitrogen needed
- ANSI standard all stainless steel reservoir
- All steel construction for durability
- Eco-friendly R404A refrigerant
- Small footprint saves valuable lab space
- Cost saving as the water consumption is completely eliminated
- Connection tubing included
- Recommended for 2L rotary evaporators and 2L-10L distillation systems
Attention! Do NOT use Ai Chill-50 heat transfer fluid with this unit.
Specifications
| SKU | C20-7SST.110 | C20-7SST.220 |
|---|---|---|
| Model | C20-7sst | C20-7sst |
| Temperature Range | -20 to 99 °C (No load) | -20 to 99 °C (No load) |
| Electrical | 110V, 60Hz, 1-PH, 2,500W, UL/CSA Certified | 220V, 60Hz, 1-PH, 2500W, UL/CSA Certified |
| Compressor Make | SECOP (formerly known as Danfoss), Germany | SECOP (formerly known as Danfoss), Germany |
| Number of Compressors | One | One |
| Refrigerant | R404A (190g) | R404A (190g) |
| Cooling Capacity | 420W @ 20°C; 410W @ 10°C; 390W @ 0°C; 350W @ -10°C; 300W @ -20°C | 420W @ 20°C; 410W @ 10°C; 390W @ 0°C; 350W @ -10°C; 300W @ -20°C |
| Heating Capacity | 1,100 watts | 2,000 watts |
| Pumping Speed | 20 L/min, adjustable | 20 L/min, adjustable |
| Maximum Head | 16 feet or 5 meters | 16 feet or 5 meters |
| Reservoir | 304 stainless steel, polished | 304 stainless steel, polished |
| Reservoir Size | 8 x 10 x 5.5" (WxDxH) | 8 x 10 x 5.5" (WxDxH) |
| Filling Volume | 7.3 L | 7.3 L |
| Connection | 3/8" hose barb x 2 | 3/8" hose barb x 2 |
| Controller | Digital microprocessor PID controlled | Digital microprocessor PID controlled |
| Display | 7" TFT touch screen | 7" TFT touch screen |
| Temperature Accuracy | +/- 2 °C | +/- 2 °C |
| Recommended Coolant | > 10 °C distilled water; 10 °C to -20 °C 50% ethylene glycol + 50% distilled water | > 10 °C distilled water; 10 °C to -20 °C 50% ethylene glycol + 50% distilled water |
| Ambient Environmental Temp | -15 °C to 25 °C, at < 66% humidity | -15 °C to 25 °C, at < 66% humidity |
| Dimensions | 12 x 15.5 x 26" | 12 x 15.5 x 26" |
| Weight | 68 lbs | 68 lbs |
| Shipping Dimensions | 15 x 20 x 30" | 100 lbs |
| Shipping Weight | 100 lbs | Compressor over-temp protection, Compressor power surge delay protection, Short circuit and ground protection, Over-current protection, Over-temperature protection, Upper/lower temperature alarm protection, Compressor delay start protection |
| Safety Features | Compressor over-temp protection, Compressor power surge delay protection, Short circuit and ground protection, Over-current protection, Over-temperature protection, Upper/lower temperature alarm protection, Compressor delay start protection | 2L, 5L or 10L short path distillation systems OR 2L rotary evaporators |
| For Use With | 2L, 5L or 10L short path distillation systems OR 2L rotary evaporators | 2L, 5L or 10L short path distillation systems OR 2L rotary evaporators |
| Warranty | One year | One year |
| Compliance | UL 61010-1 :2012 Ed.3+R:29Apr2016; CSA C22.2#61010-1 :2012 Ed.3 | UL 61010-1 :2012 Ed.3+R:29Apr2016; CSA C22.2#61010-1 :2012 Ed.3 |
