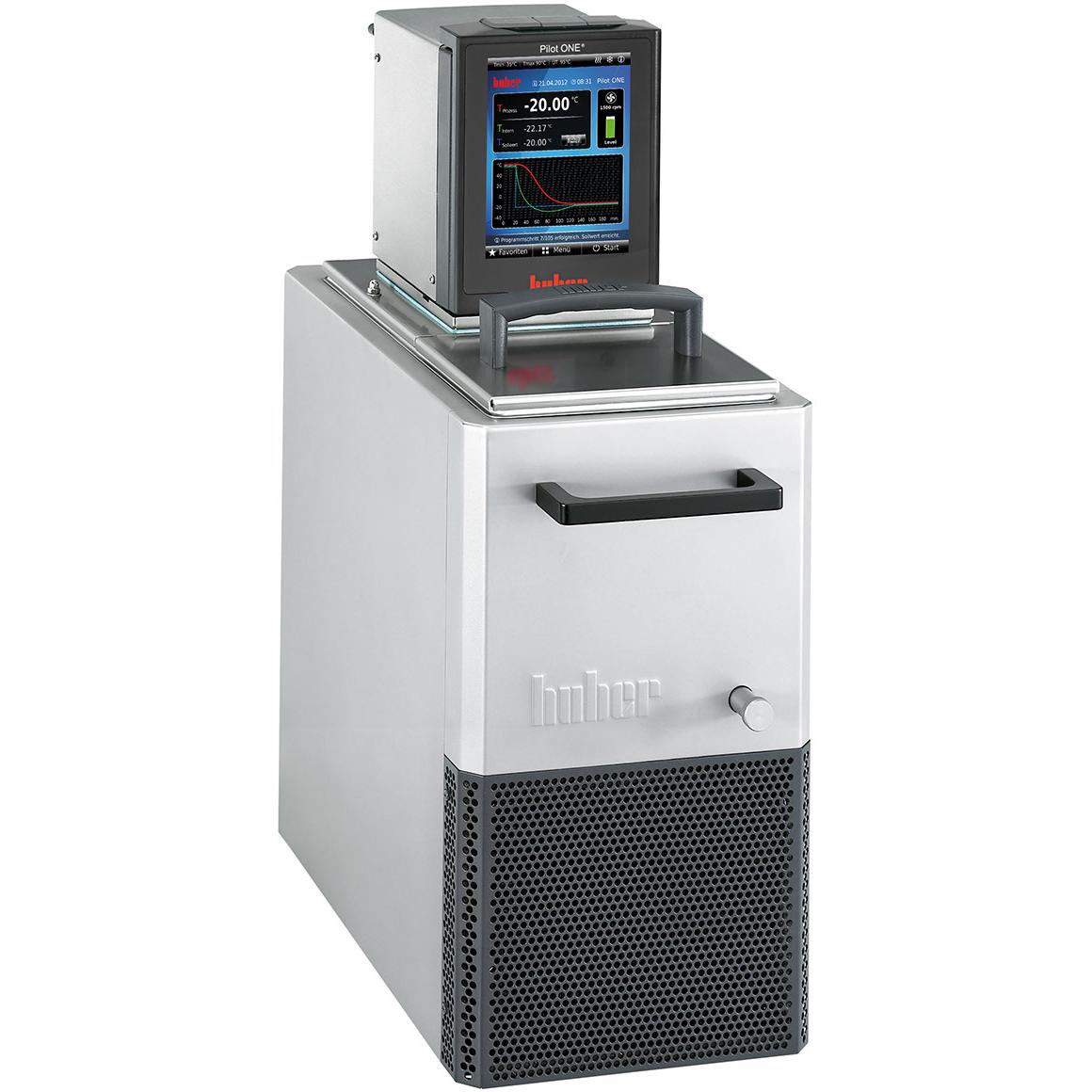

Huber CC-K6 with Pilot ONE, Refrigerated Heating Circulators, -25 to 200°C
| SKU | Description | Filling Volume | Temperature Range | Temperature Stability | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|
| 2008.0006.01 | CC-K6 with Pilot ONE Refrigerated Heating Circulator | 4.5 L | -25 to 200 °C | ±0.02 °C | 110-120V 1~ 50/60Hz | 1 Each |
|
|
| 2008.0006.01.UL | CC-K6 with Pilot ONE Refrigerated Heating Circulator | 4.5 L | -25 to 200 °C | ±0.02 °C | 110-120V 1~ 50/60Hz, UL/CSA Certified | 1 Each |
|
Description
Cooling bath thermostats with insulated cooling baths are an economic solution for thermoregulation of objects directly in the thermostat bath. The units are therefore suitable for a number of typical heating and cooling tasks such as sample temperature control, materials testing, quality control, analyses, etc. Cooling circulator operates with natural refrigerants and are therefore offer an environmentally friendly solution to temperature control. In addition, cooling circulators are fitted with automatic refrigeration capacity adjustment, reducing energy consumption and waste heat down to the absolute essential. With low level protection and adjustable over heating protection the units fulfill the requirements of Safety Class III/FL according to DIN 12876. The thermostats can also be used for externally attached applications using the pump connections at the rear.
The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favorites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.
- Pilot ONE controller with Plug & Play technology
- Precise temperature control
- 5.7" touchscreen and comfortable menu navigation
- Overtemperature and low level protection
- Safety class III/FL (DIN 12876)
- Powerful pressure/suction pump
- Programmer with calendar and clock functions
- 2-point calibration
- RS232 interface and Pt100 connection
Specifications
| Model | 2008.0006.01 CC-K6 with Pilot ONE, 110V |
|---|---|
| General Information & Temperature Controller | |
| Temperature Range | -25 to 200 °C |
| Temperature Stability | ±0.02 °C |
| Temperature Control | TAC, self-optimizing (True Adaptive Control |
| Controller | Pilot ONE (E-grade "Basic") |
| Safety Class | III / FL |
| Protection Class | IP20 |
| Dimensions (W x D x H) | 210 x 400 x 546 mm 8.27 x 15.75 x 21.5 inches |
| Weight | 25 kg / 55.12 pounds |
| Heating / Cooling Capacity | |
| Heating Capacity | 1.5 kW |
| Cooling Capacity | 0.2kW @ 20°C; 0.15kW @ 0°C; 0.1kW @ -10°C; 0.05kW @ -20°C |
| Cooling Machine | Air-Cooled |
| Refrigerant | R290 (A3, H220) (0.047 kg) |
| Circulation Pump | |
| Pressure Pump Max. | 27 lpm ; 0.7 bar / 7.13 gpm ; 10.15 psi |
| Suction Pump Max. | 22 lpm ; 0.4 bar / 5.81 gpm ; 5.8 psi |
| Pump Connection | M16x1 AG male |
| Connections | |
| Pt100 Connection | Pt100 |
| Digital Interface | RS232, Ethernet, USB Device, USB Host |
| Operating Data | |
| Permissible Ambient Temp. | 5 to 40 °C |
| Bath Opening W x D / BD | 140 x 120 / 150 mm; 5.51 x 4.72 / 5.91 inches |
| Bath Volume | 4.5 Liters / 1.19 gal |
| Power Supply | 110-120V 1~ 50/60Hz |
| Current Max. | 15 + 3.2 A |
