BINDER ED Avantgarde.Line Drying and Heating Ovens with gravity convection
BINDER ED Avantgarde.Line Drying and Heating Ovens with gravity convection
BINDER ED Avantgarde.Line Drying and Heating Ovens with gravity convection
FREE SHIPPING

BINDER ED Avantgarde.Line Drying and Heating Ovens with gravity convection

Questions? Quotes? Let's chat!
$1,852 and up
Image SKU Description Capacity Temperature Range Electrical Quantity Price Add to Cart
products/002_4754.jpg
9010-0334 Model ED 56 Oven with gravity convection 2.0 cu ft ambient +5 °C to 300 °C 120 V, 60 Hz, 12.5 A, UL Certified 1 Each $1,852
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/002_5108_71c7af90-327c-4341-9296-12e365e6a51a.jpg
9010-0336 Model ED 115 Oven with gravity convection 4.0 cu ft ambient +5 °C to 300 °C 120 V, 60 Hz, 12.5 A, UL Certified 1 Each $2,709
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/002_5110_c75b6758-da90-44ce-8692-eeab94308284.jpg

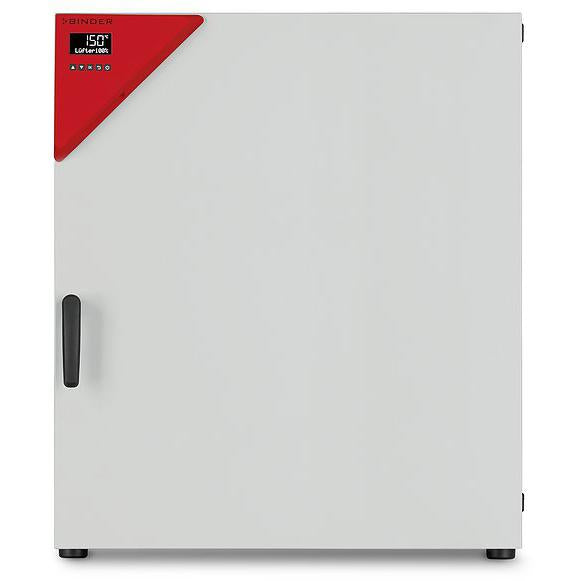

9010-0340 Model ED 260 Oven with gravity convection 9.0 cu ft ambient +5 °C to 300 °C 240 V, 60 Hz, 16 A, UL Certified 1 Each $5,040
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

The strengths of a BINDER ED series drying chamber include routine drying and sterilization tasks up to 300 °C. Thanks to the natural convection, all thermal processes which use this drying chamber are highly efficient. The ED series ensures fast, uniform drying.

Features:

  • Temperature range: ambient temperature plus 5 °C to 300 °C
  • High temperature accuracy thanks to APT.line™ technology
  • Gravity convection
  • Controller with LCD display
  • Electromechanical control of the exhaust air flap
  • 2 chrome-plated racks
  • Units up to 115 L are stackable
  • Class 2 independent temperature safety device (DIN 12880) with visual temperature alarm
  • Ergonomic handle design
  • USB port for recording data

Documentation

Product Data Sheets
E | ED | ED-S | FD | FD-S | FED | FP | M Series Brochure
BD | BF | ED | FD | FED Series Operating Manual

Specifications

SKU 9010-0334 9010-0336 9010-0340
Model ED056UL-120V ED115UL-120V ED260UL-240V
Capacity 2.0 cu ft 4.0 cu ft 9.0 cu ft
Temperature Range ambient +5 °C to 300 °C ambient +5 °C to 300 °C ambient +5 °C to 300 °C
Temperature Stability ±0.4 K at 150 °C ±0.4 K at 150 °C ±0.8 K at 150 °C
Temperature Uniformity ±2.3 K at 150 °C ±1.5 K at 150 °C ±1.8 K at 150 °C
Heat-Up Time 50 mins to 150 °C 45 mins to 150 °C 50 mins to 150 °C
Doors 1 1 1
Interior Dimensions 14.97" D x 16.55" H x 14.18" W 16.74" D x 20.88" H x 20.09" W 21.67" D x 29.94" H x 24.03" W
Exterior Dimensions 22.26" D x 24.63" H x 22.06" W 23.84" D x 27.78" H x 27.97" W 29.94" D x 33.49" H x 31.91" W
Number of Shelves 2 standard (4 max.) 2 standard (5 max.) 2 standard (8 max.)
Maximum Load 154 lbs 331 lbs 187 lbs
Electrical 120 V, 60 Hz, 12.5 A, UL Certified 120 V, 60 Hz, 12.5 A, UL Certified 240 V, 60 Hz, 16 A, UL Certified
Energy Consumption 180 Wh/h at 150 °C 245 Wh/h at 150 °C 355 Wh/h at 150 °C
Weight 86 lbs 119 lbs 187 lbs
