BINDER ED-S Solid.Line Drying and Heating Ovens with gravity convection

Questions? Quotes? Let's chat!
$1,597 and up
Image SKU Description Capacity Temperature Range Electrical Quantity Price Add to Cart
products/002_15439_078c668e-dbf0-4913-876b-147a5dba10e8.jpg

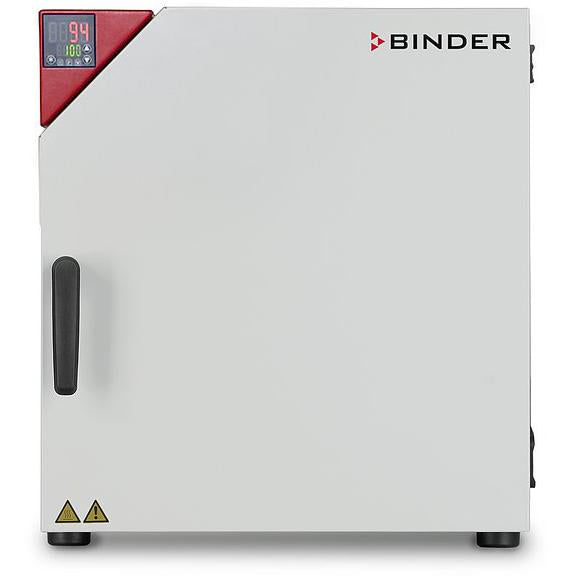

9090-0015 Model ED-S 56 Oven with gravity convection 2.2 cu ft ambient +7 °C to 250 °C 120 V, 60 Hz, 6.3 A, UL Certified 1 Each $1,597
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/002_15439_c78cf366-82c0-4a99-813f-a667fe023543.jpg
9090-0021 Model ED-S 115 Oven with gravity convection 4.2 cu ft ambient +7 °C to 250 °C 120 V, 60 Hz, 6.3 A, UL Certified 1 Each $2,005
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

The products in the Solid.Line impress with their tried-and-tested BINDER quality and reliability. They are suited to drying and heating. The attributes of the Solid.Line are geared towards the application in question and therefore used in research and quality assurance.

Features:

  • Temperature range: ambient temperature +7 °C to 250 °C
  • APT.line™ preheating chamber technology
  • Gravity convection
  • Adjustable exhaust air flap
  • Controller with timer function
  • 1 chrome-plated rack, incl. shelf supports
  • Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm

Documentation

Product Data Sheets
E | ED | ED-S | FD | FD-S | FED | FP | M Series Brochure
BD-S | ED-S | FD-S Series Operating Manual

Specifications

SKU 9090-0015 9090-0021
Model EDS056-120V EDS115UL-120V
Capacity 2.2 cu ft 4.2 cu ft
Temperature Range ambient +7 °C to 250 °C ambient +7 °C to 250 °C
Temperature Stability ±0.8 K at 150 °C ±0.8 K at 150 °C
Temperature Uniformity ±2.8 K at 150 °C ±2.8 K at 150 °C
Heat-Up Time 60 mins 55 mins
Doors 1 1
Interior Dimensions 13.79" D x 17.34" H x 15.76" W 15.37" D x 21.67" H x 21.67" W
Exterior Dimensions 22.73" D x 24.63" H x 24.19" W 24.27" D x 28.96" H x 30.1" W
Number of Shelves 1 standard (3 max.) 1 standard (5 max.)
Maximum Load 66 lbs 165 lbs
Electrical 120 V, 60 Hz, 6.3 A, UL Certified 120 V, 60 Hz, 6.3 A, UL Certified
Energy Consumption 180 Wh/h at 150 °C 310 Wh/h at 150 °C
Weight 75 lbs 104 lbs
