Distilling Heads, Vacuum Jacketed, Vigreux
$1,145.30
$1,131
and up
| SKU | Description | Joint Size | Thermometer Joint | Stopcock | Height x Width | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|
| CG-1247-08 | Vacuum-Jacketed Vigreux Distilling Head | 14/20 | 10/18 | 2 mm Glass | 255 x 310 mm | 1 Each |
|
|
| CG-1247-09 | Vacuum-Jacketed Vigreux Distilling Head | 24/40 | 10/30 | 4 mm Glass | 550 x 325 mm | 1 Each |
|
|
| CG-1247-11 | Vacuum-Jacketed Vigreux Distilling Head | 14/20 | 10/18 | 2 mm PTFE | 225 x 310 mm | 1 Each |
|
|
| CG-1247-12 | Vacuum-Jacketed Vigreux Distilling Head | 24/40 | 10/30 | 4 mm PTFE | 550 x 325 mm | 1 Each |
|
Description

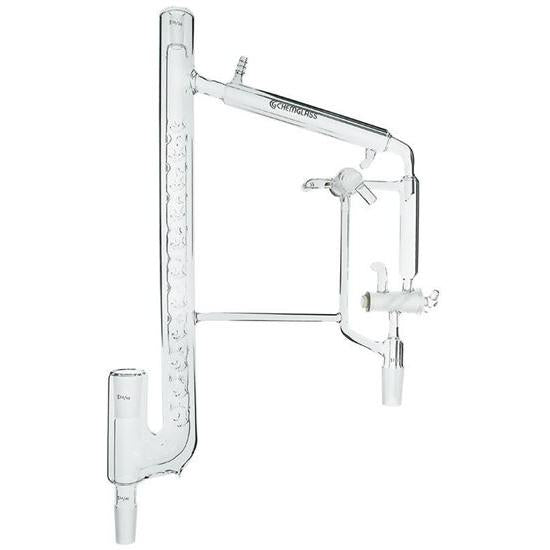

Jacketed fractionation distilling head for use under vacuum. The 10/18 top outer joint is for a 1 immersion thermometer while the 10/30 joints are for a 2 immersion thermometer.
The 24/40 joint size uses 4mm glass or PTFE stopcocks, and are positioned to permit changing of receiver without interruption of the distillation process. The 14/20 size uses 2mm bore glass or PTFE stopcocks.
