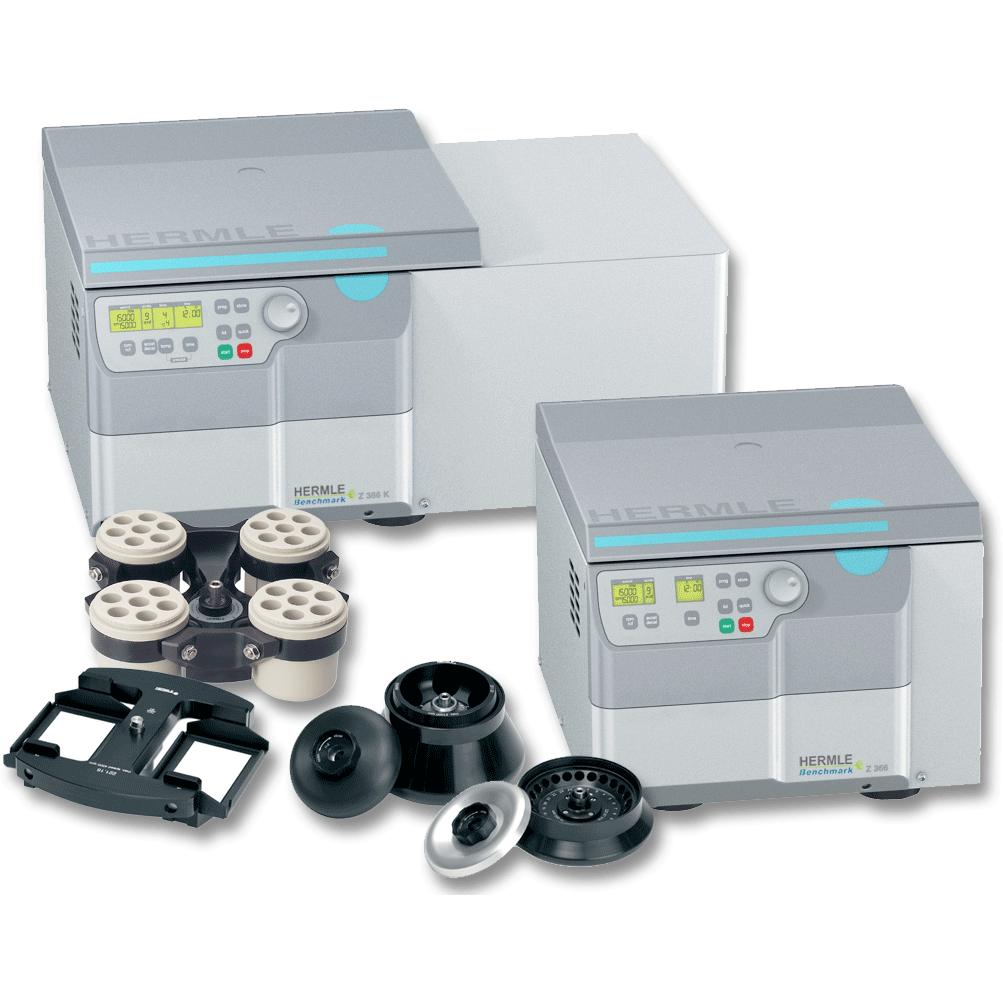

Hermle Z366 Universal Centrifuges
Image | SKU | Description | Speed Range | Max. RCF | Temperature Range | Electrical | Quantity | Price | Add to Cart |
---|---|---|---|---|---|---|---|---|---|
|
Z366 | Universal Centrifuge, without rotor | 200 to 15,000 rpm | 21,379 x g | N/A | 120V, 50/60Hz, 520W | 1 Each |
|
|
|
Z366-K | Universal Centrifuge, Refrigerated, without rotor | 200 to 16,000 rpm | 24,325 x g | -20 to 40 °C | 120V, 50/60Hz, 785W | 1 Each |
|
Description
For applications requiring increased capacity over the Z306 or Z326 series centrifuges, the Z366 series offer a unique "Mid-Range" swing out rotor that accepts a variety of different tubes, including up to 16 x 50ml or 40 x 15ml.
Despite this step up in capacity, the Z366 maintains a surprisingly compact design, with the standard air-cooled model featuring a footprint of 17 x 20 inches.
In addition to the popular 4 x 250ml swing out rotor, a variey of additional rotors are also available. Angled rotors range from a 24 x 1.5ml micro rotor to a high capacity 6 x 250ml rotor. A 2 x 3 position microplate rotor is also available, as well as a 4 x PCR strips (8-strips).
Advanced microprocessor controls allow for instant rotor identification, which automatically converts the rotational speed to the relevant g-force (rcf), preventing the user from setting a speed above the capabilities of the installed rotor. In addition to retrieving saved programs, the easy to use front panel can adjust accel/decel rates, and change the end of run alarm tone.
Features
- 4 x 250ml swing out rotor capacity, up to 16 x 50ml and 40 x 15ml
- Advanced programming with auto-rotor recognition
- Optional high speed rotors, providing up to 24,000 xg
- Available with refrigeration
- Microprocessor Control
- Over-speed protection
- Automatic rotor identification
- Program Storage (99)
- Pre-Cool function (Z366-K only)
- Momentary spin button
- Imbalance detection
- Adjustable Accel/Decel
- Audible end of run alarm
- Maintenance free induction drive
- Motor driven safety lid-lock
- Quiet operation, less than 62 DB
- Splash proof display
- Powerful Refrigeration (Z366-K only)
Specifications
Model | Z366 | Z366-K |
---|---|---|
Speed Range | 200 to 15,000 rpm | 200 to 16,000 rpm |
Max. RCF | 21,379 x g | 24,325 x g |
Max Capacity | 4 x 250 ml (Swing out) 6 x 250 ml (Angle) |
4 x 250 ml (Swing out) 6 x 250 ml (Angle) |
Temp Range | N/A | -20°C to 40°C |
Timer | up to 99 hr, 59 min. | up to 99 hr, 59 min. |
Dimensions (W x D x H) | 17 x 20 x 14.2 in. | 28.3 x 20 x 14.2 in. |
Weight | 114 lbs (52 kg) | 169 lbs (77 kg) |
Electrical | 120V, 50/60 Hz | 120V, 50/60 Hz |
Power Draw | 520W | 785W |
