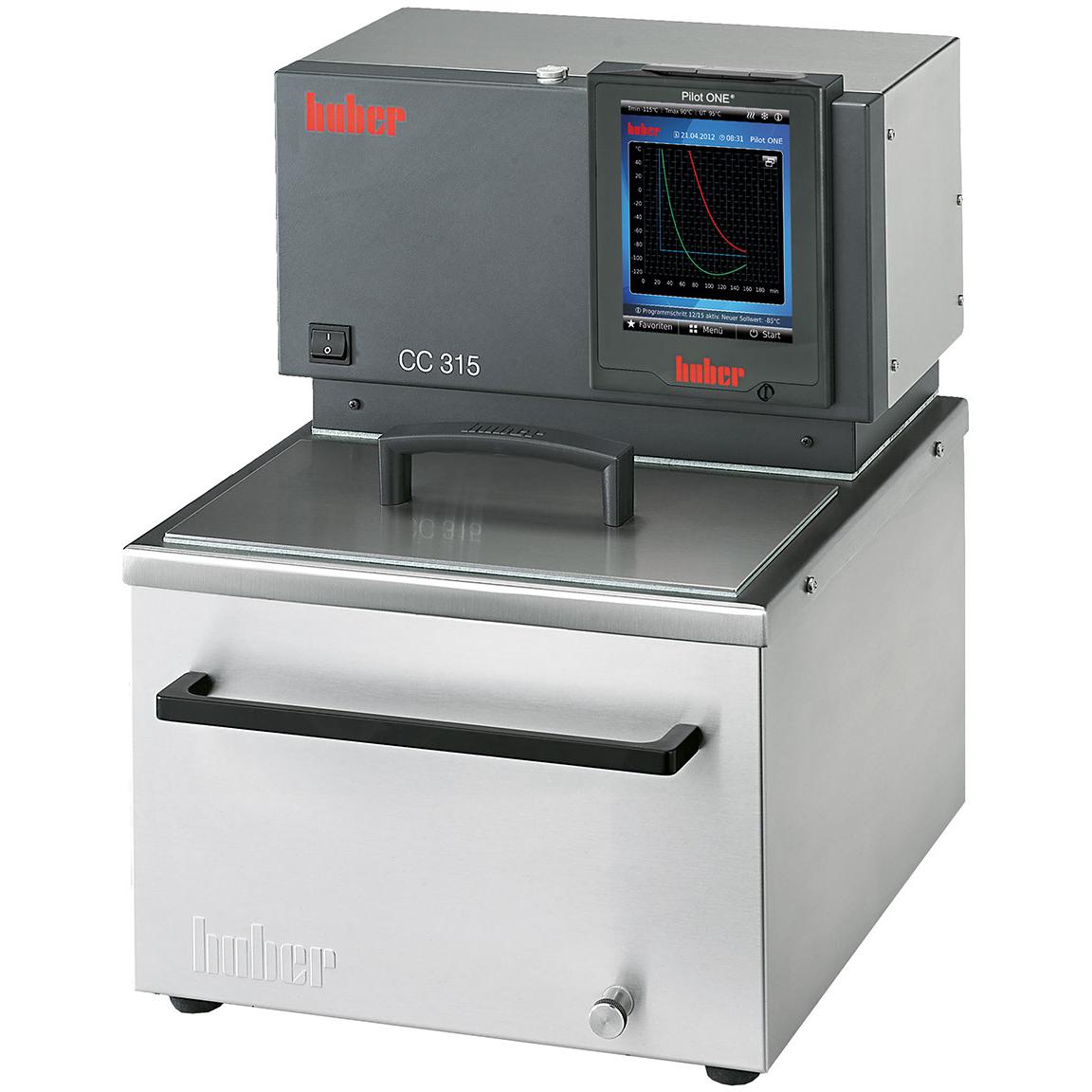

Huber CC-315B with Pilot ONE Heating Circulators, 28 to 300°C
| SKU | Description | Filling Volume | Temperature Range | Temperature Stability | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|
| 2007.0001.01 | CC-315B with Pilot ONE Heating Circulators | 15 L | 28 to 300 °C | ±0.02 °C | 200-240V 1~/2~ 50/60Hz | 1 Each |
|
|
| 2007.0001.01.UL | CC-315B with Pilot ONE Heating Circulators | 15 L | 28 to 300 °C | ±0.02 °C | 200-240V 1~/2~ 50/60Hz, UL/CSA Certified | 1 Each |
|
Description
Heating bath circulation thermostats with a stainless steel bath allow the temperature control of internal and external thermoregulation tasks. Items can be directly thermoregulated by placing them in a thermostat bath and the control of externally connected applications is also possible. The units are suitable for a number of typical temperature control tasks such as sample temperature control, materials testing, quality control, etc. The devices are fitted with over-temperature and low level protection in line with Safety Class III/FL according to DIN 12876. A powerful pressure/suction pump ensures optimal circulation and temperature homogeneity in the thermostat bath and also allows temperature control of externally connected applications using a pump adapter.
The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favorites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.
- Pilot ONE controller with Plug & Play technology
- Precise temperature control
- 5.7" touchscreen and comfortable menu navigation
- Overtemperature and low level protection
- Safety class III/FL (DIN 12876)
- Powerful pressure/suction pump
- Programmer with calendar and clock functions
- 2-point calibration
- RS232 interface and Pt100 connection
Specifications
| Model | 2007.0001.01 CC-315B, 200-240V |
|---|---|
| General Information & Temperature Controller | |
| Temperature Range | 28 to 300 °C |
| Temperature Stability | ±0.02 °C |
| Temperature Control | TAC, self-optimizing (True Adaptive Control) |
| Controller | Pilot ONE (E-grade "Basic") |
| Safety Class | III / FL |
| Protection Class | IP20 |
| Dimensions (W x D x H) | 335 x 382 x 433 mm 13.19 x 15.04 x 17.05 inches |
| Weight | 22 kg / 48.51 pounds |
| Heating / Cooling Capacity | |
| Heating Capacity | 3-3.5 kW |
| Circulation Pump | |
| Pressure Pump Max. | 25 lpm ; 0.7 bar / 6.6 gpm ; 10.15 psi |
| Suction Pump Max. | 18.5 lpm ; 0.4 bar / 4.89 gpm ; 5.8 psi |
| Pump Connection | M16x1 AG male |
| Permissible Viscosity | 50 mm²/s |
| Connections | |
| Pt100 Connection | Pt100 |
| Digital Interface | RS232, Ethernet, USB Device, USB Host |
| Operating Data | |
| Permissible Ambient Temp. | 5 to 40 °C |
| Bath Opening W x D / BD | 270 x 145 / 200 mm; 10.63 x 5.71 / 7.87 inches |
| Bath Volume | 15 Liters / 3.96 gal |
| Filling Volume Min. | 11.5 Liters / 3.04 gal |
| Power Supply | 200-240V 1~/2~ 50/60Hz |
| Current Max. | 14 A |
| Fusing | 16 A |
