Julabo CORIO™ C-B Open Bath Heating Circulators, 20 to 100°C
$1,820
$1,577
and up
| Image | SKU | Description | Filling Volume | Temperature Range | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|
|
9011405.22 | CORIO C-B5 Heating Circulator | 3.5 to 5 L | 20 to 100 °C | 100V-115V/50-60Hz | 1 Each |
|
|
|
9011413.22 | CORIO C-B13 Heating Circulator | 9 to 13 L | 20 to 100 °C | 100V-115V/50-60Hz | 1 Each |
|
|
|
9011417.22 | CORIO C-B17 Heating Circulator | 13 to 17 L | 20 to 100 °C | 100V-115V/50-60Hz | 1 Each |
|
|
|
9011419.22 | CORIO C-B19 Heating Circulator | 14 to 19 L | 20 to 100 °C | 100V-115V/50-60Hz | 1 Each |
|
|
|
9011427.22 | CORIO C-B27 Heating Circulator | 17 to 27 L | 20 to 100 °C | 100V-115V/50-60Hz | 1 Each |
|
Description

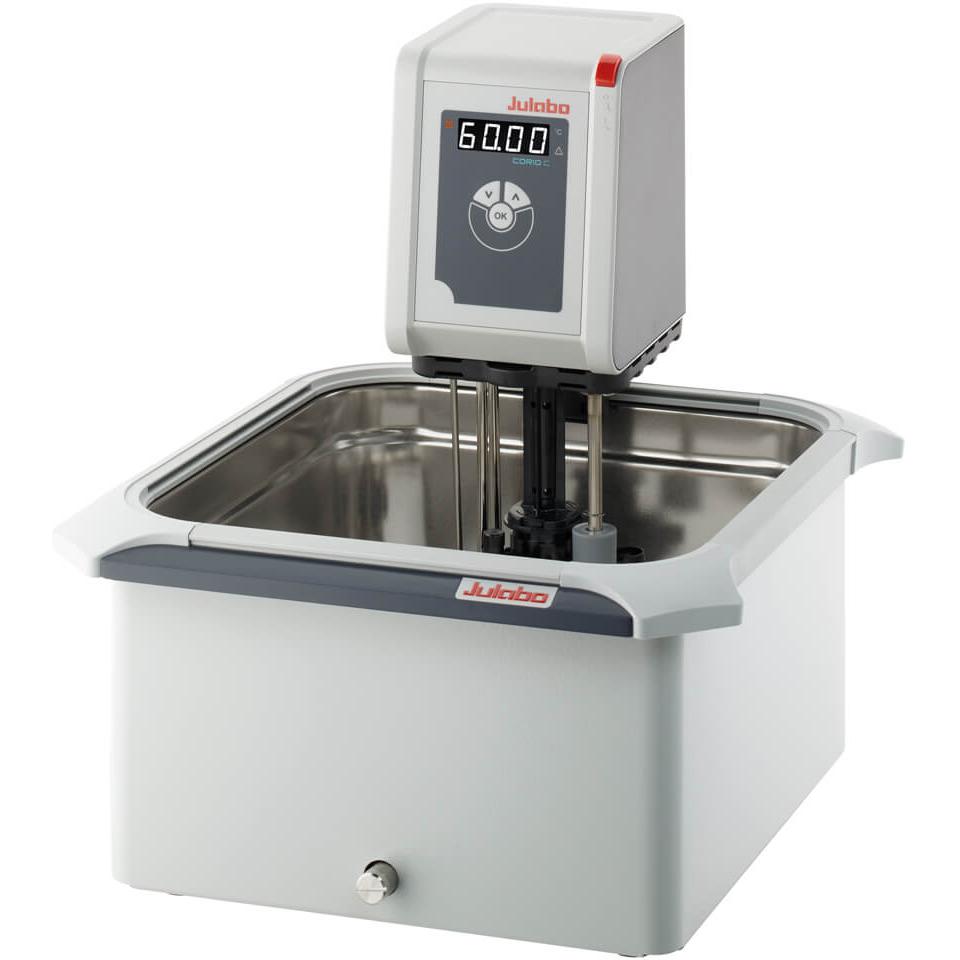

JULABO CORIO™ Immersion Heating Circulator combinations with transparent or stainless steel bath tanks for routine laboratory tasks. Units include bright LED display and easy operation. A quick connect bath clamp is included.
The CORIO™ C immersion circulator provides temperatures to 100 °C for internal bath applications for use with water only.
Products include a quick connect clamp for positioning the CORIO™ C on tank rim. Polycarbonate bath tanks have volume graduations in L and Qt. Stainless steel bath tanks include a drain port (except B5).
Key Benefits
- Models for internal applications
- Bright, white, easy to read display
- Very quiet
- Integrated drain screw (except B5)
Specifications
| Model | C-B5 | C-B13 | C-B17 | C-B19 | C-B27 |
|---|---|---|---|---|---|
| SKU | 9011405.22 | 9011413.22 | 9011417.22 | 9011419.22 | 9011427.22 |
| Working Temp Range | 20 to 100°C | 20 to 100°C | 20 to 100°C | 20 to 100°C | 20 to 100°C |
| Heating Capacity | 1kW | 1kW | 1kW | 1kW | 1kW |
| Voltage Version | 100V-115V/50-60Hz | 100V-115V/50-60Hz | 100V-115V/50-60Hz | 100V-115V/50-60Hz | 100V-115V/50-60Hz |
| Power A | 10A | 10A | 10A | 10A | 10A |
| NRTL | Yes | Yes | Yes | Yes | Yes |
| PCF Pressure | 1.5 psi | 1.5 psi | 1.5 psi | 1.5 psi | 1.5 psi |
| PCF Rate | 6 L/min | 6 L/min | 6 L/min | 6 L/min | 6 L/min |
| Bath Fill Volume | 3.5 to 5L | 9 to 13L | 13 to 17L | 14 to 19L | 17 to 27L |
| External Devices | - | - | - | - | - |
| Fluid Type | Water | Water | Water | Water | Water |
| Heating & Cooling | Heating | Heating | Heating | Heating | Heating |
| Dimensions W x L x H | 9.1 x 15 x 16.2 in. | 15 x 15.8 x 16.6 in. | 15 x 15.8 x 18.6 in. | 15 x 15.8 x 18.6 in. | 15 x 23 x 18.6 in. |
| Weight | 16.1 lbs | 20.1 lbs | 20.5 lbs | 23.2 lbs | 26.5 lbs |
Documentation
| Product Data Sheets |
|---|
| CORIO C-B5 Data Sheet |
| CORIO C-B13 Data Sheet |
| CORIO C-B17 Data Sheet |
| CORIO C-B19 Data Sheet |
| CORIO C-B27 Data Sheet |
| CORIO C User Manual |
