FREE SHIPPING

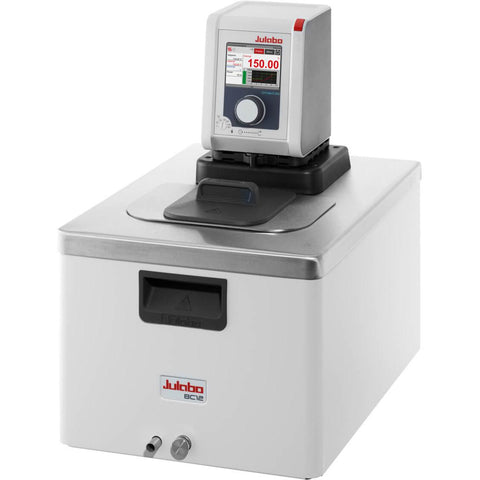

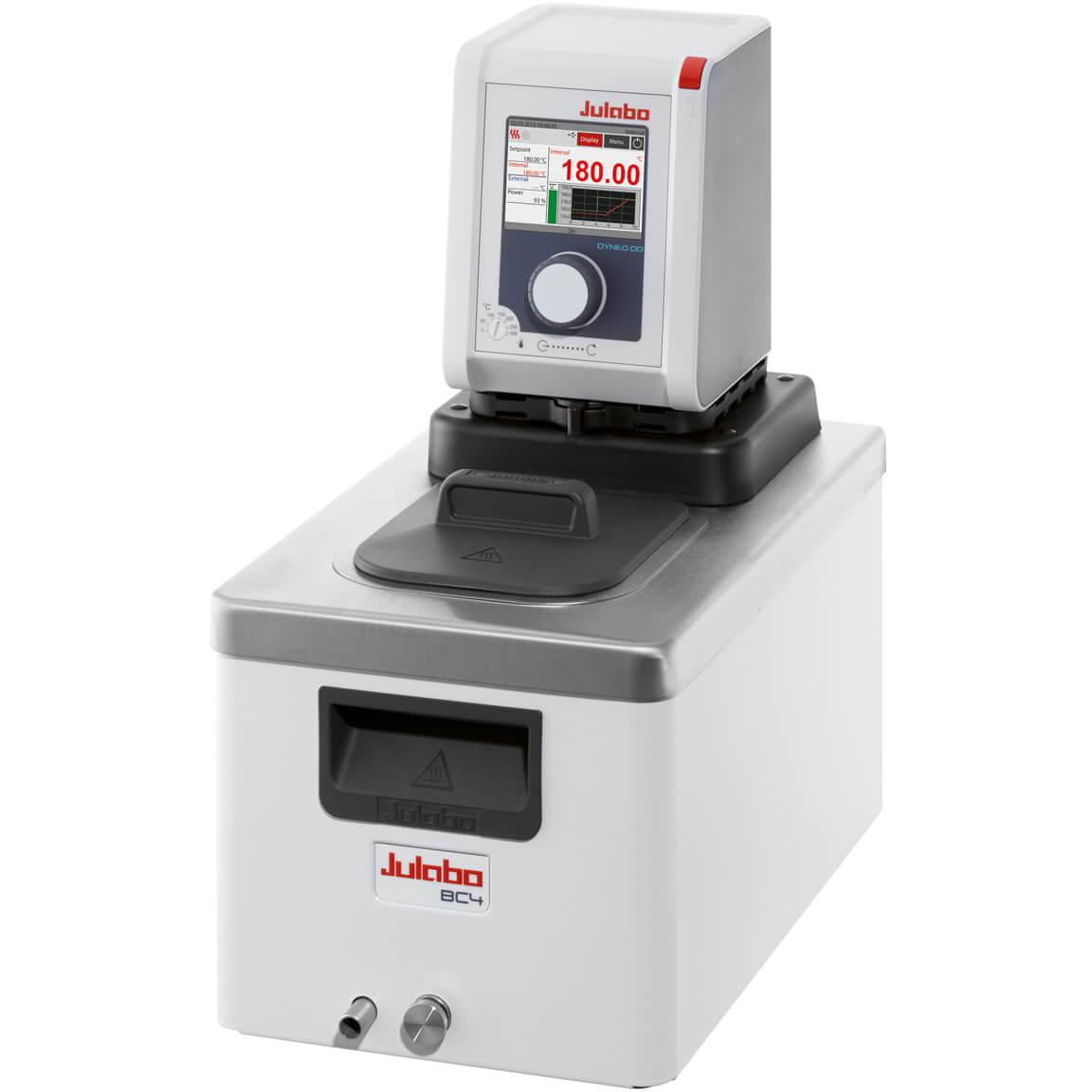

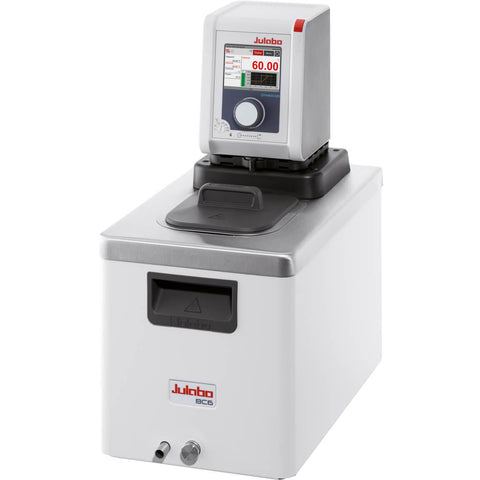

Julabo DYNEO™ DD Heating Circulators, 20 to 200°C
$5,050
$4,545
and up
| Image | SKU | Description | Filling Volume | Temperature Range | Temperature Stability | Interface | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|
|
9021504.22 | DYNEO Heating Circulator DD-BC4 | 4.5 L | 20 to 200°C | ±0.01°C | USB | 100-115V, 50-60Hz | 1 Each |
|
|
|
9021504.22.D | DYNEO Heating Circulator DD-BC4 | 4.5 L | 20 to 200°C | ±0.01°C | RS232 | 100-115V, 50-60Hz | 1 Each |
|
|
|
9021504.22.A | DYNEO Heating Circulator DD-BC4 | 4.5 L | 20 to 200°C | ±0.01°C | Analog | 100-115V, 50-60Hz | 1 Each |
|
|
|
9021506.22 | DYNEO Heating Circulator DD-BC6 | 6 L | 20 to 200°C | ±0.01°C | USB | 100-115V, 50-60Hz | 1 Each |
|
|
|
9021506.22.D | DYNEO Heating Circulator DD-BC6 | 6 L | 20 to 200°C | ±0.01°C | RS232 | 100-115V, 50-60Hz | 1 Each |
|
|
|
9021506.22.A | DYNEO Heating Circulator DD-BC6 | 6 L | 20 to 200°C | ±0.01°C | Analog | 100-115V, 50-60Hz | 1 Each |
|
|
|
9021512.22 | DYNEO Heating Circulator DD-BC12 | 12 L | 20 to 200°C | ±0.01°C | USB | 100-115V, 50-60Hz | 1 Each |
|
|
|
9021512.22.D | DYNEO Heating Circulator DD-BC12 | 12 L | 20 to 200°C | ±0.01°C | RS232 | 100-115V, 50-60Hz | 1 Each |
|
|
|
9021526.22 | DYNEO Heating Circulator DD-BC26 | 26 L | 20 to 200°C | ±0.01°C | USB | 100-115V, 50-60Hz | 1 Each |
|
|
|
9021526.22.D | DYNEO Heating Circulator DD-BC26 | 26 L | 20 to 200°C | ±0.01°C | RS232 | 100-115V, 50-60Hz | 1 Each |
|
|
|
9021526.22.A | DYNEO Heating Circulator DD-BC26 | 26 L | 20 to 200°C | ±0.01°C | Analog | 100-115V, 50-60Hz | 1 Each |
|
Description
DYNEO Heating Circulators are available in different sizes from 4 to 26 liters. DYNEO DD heating circulators for internal and external applications are equipped with closed bath tanks. The tanks are well insulated and include a coil for counter-cooling. An integrated drain tap makes emptying the tank safe and clean. The multilingual 3.5-inch color display and unique rotary knob provide for straightforward and intuitive operation.
Features
- Ideal for internal and external applications
- Bath cover included
- High-quality thermal insulation of the bath tank
- Central rotary knob (controller) simplifies operation
- Built-in drain tap for easy and safe drainage
- Built-in cooling coil for counter cooling
- Continuously adjustable, powerful pressure pump
- Integrated pump connectors M16x1
- Flow rate 22 l/min, pressure 0.6 bar
- Easy switching between internal and external circulation
- Large color TFT display, multilingual interface
- Integrated programmer
- External Pt100 sensor connection
- DYNEO is equipped with USB interface. In addition DYNEO is available with RS232 or analog interface option.
Specfications
| Dyneo Model | DD-BC4 | DD-BC6 | DD-BC12 | DD-BC26 |
|---|---|---|---|---|
| Working Temperature Range | +20 to +200°C | |||
| Temperature Stability | ±0.01°C | |||
| Heating Capacity | 2 kW | |||
| Pump Flow Rate | 22 l/min | |||
| Pump Capacity Bar | 0.6 (pressure) | |||
| External Pt100 sensor connection | Yes | |||
| Bath Opening/Bath Depth | 13cm W × 15cm L / 15cm D | |||
| Filling Volume Liters | 3 to 4.5 Liters | 4.5 to 6 Liters | 8.5 to 12 Liters | 19 to 26 Liters |
| Product Data Sheets |
|---|
| Julabo DYNEO Brochure |
