Process Reactor Systems, Jacketed, Electric Motor, 100L, Tall
$57,807.05
$57,035
| SKU | Description | Capacity | Motor Type | Manifold System | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|
| CG-1968-W6100 | Process Reactor System, Tall, Cylindrical, Jacketed, Glass, 400mm Flange | 100 L | Brushless DC Electric Motor | CG-1969-M Manifold with M30 x 1.5 Circulator Fittings | 1 Each |
|
Description

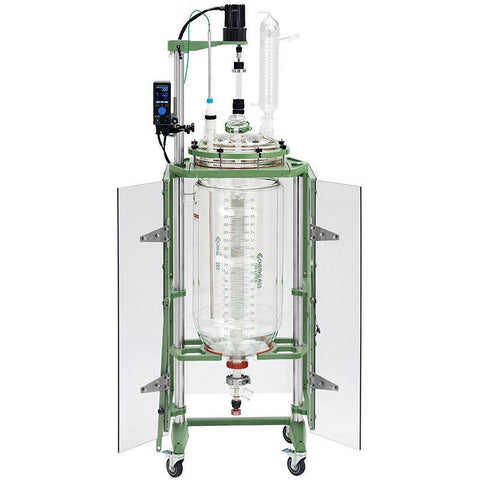

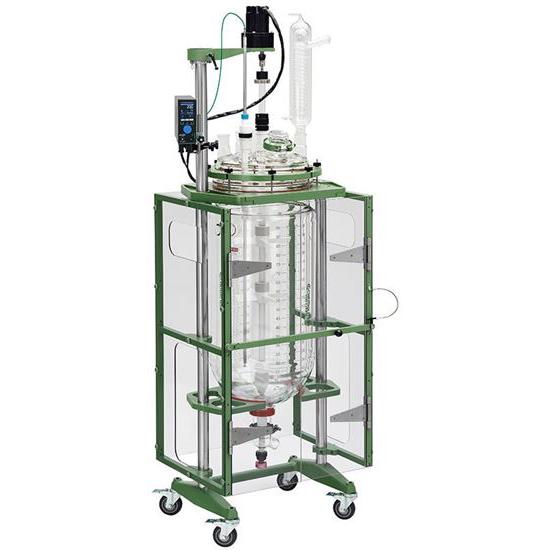

100L Tall glass reactor system with 400mm flange on our innovative Kwik Mount support frame. Lexan safety shields surround the reactor with the front panel hinged for easy access.
Complete 100L Tall Reactor System Features:
- Wider Access: 400mm ID Flange Provides Wider Access For Insertion or Probes, Baffles and Other Accessories without Interfering with Agitators

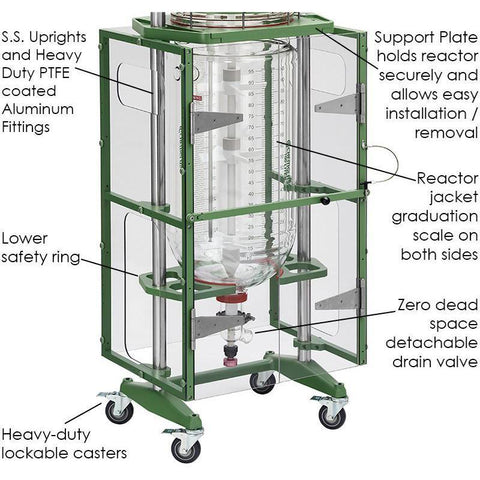

- Heavy Duty 2" Diameter Solid Stainless Steel Uprights and Heavy Duty PTFE Coated Aluminum Fittings Provide Maximum Strength and Chemical Durability
- Digital Temperature Monitor
- Heavy Duty Chemically Resistant Frame: Universal Motor Mount for Electric, Air, or XP Motors: Design Provides Greater Accessibility
- Electric Motor and Controller: Electric and XP Motor has Separate Controller with Digital Display
- Reactor Jacket Graduation Scale on Both Sides
- Large Detachable Drain: 3" Beaded Pipe Zero Dead Space Detachable Drain Valve has Knob With Laser Etched Directional Arrows for Open and Close
- 7-Neck 400mm Inside Diameter Lid with Large 80mm Powder Addition Port
- Reactor Support Plate Holds Reactor Securely and Allows Easy Installation/Removal
- Lexan Safety Shield On All Four Sides
- Pressure Relief Manifold System: Supplied with CG-1969-M High Flow Pressure Relief Manifold System With Insulated Hoses and Bulkhead Fittings
- Mobile: Large Swivel Casters with Locking Mechanisms
Documentation
| Product Data Sheets |
|---|
| 100L "Tall" Jacketed Reactors Product Data Sheet |
| 100L "Tall" Jacketed Reactor Operating Manual |
