Reaction Vessels, Jacketed, Benchtop
Reaction Vessels, Jacketed, Benchtop
FREE SHIPPING

Reaction Vessels, Jacketed, Benchtop

Questions? Quotes? Let's chat!
$779.60
$771 and up
SKU Description Capacity Flange Hose Connection Valve Size Quantity Price Add to Cart
CG-1929-02 Jacketed Benchtop Reaction Vessel 200 mL 80 mm Schott O-Ring GL-14 0-14 mm Stem 1 Each
$779.60
$771
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1929-04 Jacketed Benchtop Reaction Vessel 300 mL 80 mm Schott O-Ring GL-14 0-14 mm Stem 1 Each
$869.40
$859
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1929-06 Jacketed Benchtop Reaction Vessel 500 mL 80 mm Schott O-Ring GL-14 0-14 mm Stem 1 Each
$910.40
$903
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1929-10 Jacketed Benchtop Reaction Vessel 300 mL 100 mm Schott O-Ring GL-14 0-14 mm Stem 1 Each
$930.20
$918
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1929-11 Jacketed Benchtop Reaction Vessel 300 mL 100 mm Schott O-Ring 3/4 in Beaded Pipe 0-14 mm Stem 1 Each
$916.20
$905
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1929-12 Jacketed Benchtop Reaction Vessel 500 mL 100 mm Schott O-Ring GL-14 0-14 mm Stem 1 Each
$981.10
$972
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1929-13 Jacketed Benchtop Reaction Vessel 500 mL 100 mm Schott O-Ring 3/4 in Beaded Pipe 0-14 mm Stem 1 Each
$965.90
$957
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1929-14 Jacketed Benchtop Reaction Vessel 1000 mL 100 mm Schott O-Ring GL-14 0-14 mm Stem 1 Each $1,021
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1929-15 Jacketed Benchtop Reaction Vessel 1000 mL 100 mm Schott O-Ring 3/4 in Beaded Pipe 0-14 mm Stem 1 Each $1,007
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1929-16 Jacketed Benchtop Reaction Vessel 2000 mL 150 mm Schott O-Ring GL-18 20 mm Extended Tip 1 Each
$1,569.90
$1,562
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1929-18 Jacketed Benchtop Reaction Vessel 2000 mL 150 mm Schott O-Ring 3/4 in Beaded Pipe 20 mm Extended Tip 1 Each
$1,543.80
$1,536
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1929-20 Jacketed Benchtop Reaction Vessel 3000 mL 150 mm Schott O-Ring GL-18 20 mm Extended Tip 1 Each
$1,958.30
$1,947
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1929-22 Jacketed Benchtop Reaction Vessel 3000 mL 150 mm Schott O-Ring 3/4 in Beaded Pipe 20 mm Extended Tip 1 Each
$1,931.90
$1,921
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1929-24 Jacketed Benchtop Reaction Vessel 4000 mL 150 mm Schott O-Ring GL-18 20 mm Extended Tip 1 Each
$2,096.70
$2,094
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1929-26 Jacketed Benchtop Reaction Vessel 4000 mL 150 mm Schott O-Ring 3/4 in Beaded Pipe 20 mm Extended Tip 1 Each
$2,087.60
$2,085
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
CG-1929-28 Jacketed Benchtop Reaction Vessel 5000 mL 150 mm Schott O-Ring 3/4 in Beaded Pipe 20 mm Extended Tip 1 Each
$2,168.40
$2,164
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

Features:

  • Chemically resistant perfluoro o-rings on all drain valves
  • Graduation scale on both sides showing the approximate volume
  • Sidearm on lower drain valve can be used with a standard 1/2 or 3/4in tfe, pfa or pp compression fitting
  • All vessels are serial numbered
  • GL thread inlet/outlets are supplied with removable high temperature pfa hose connections and pps screw caps
  • 3/4in beaded pipe inlet/outlets are for use with couplings or adapters

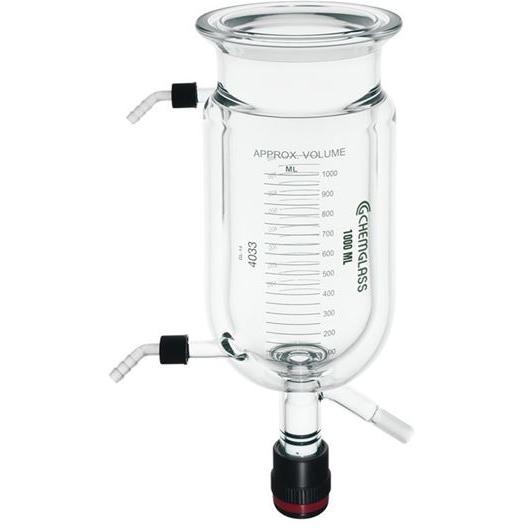

Jacketed reaction vessel with graduation scale on both sides. Vessels with capacities 200mL to 1000mL are available with our 0-14mm drain valve supplied complete with one-piece plug and control knob with red indicator band used for high temperature applications up to 230°C. A low temperature plug and control knob, designated by a blue indicator band, is available as an optional item listed below, and can be used down to -60°C.

The sidearm on the valve is 1/2in Swagelok®. Vessels with capacities 2L and larger use a drain valve that is 3/4in Swagelok®. Both valves are designed to seal flush with the bottom of the flask avoiding the dead space normally associated with stopcock drains. This feature permits total mixing and draining of the contents of the reactor. Reaction vessel is constructed with a flange having a groove formed in the sealing surface of the flange.

Please note: beaded pipe couplings and adapters must be purchased separately.
