Vacuum Manifolds, Inert Free, Airfree, Schlenk, Double Bank
SKU Description Number of Ports Length Quantity Price Add to Cart
AF-0060-01 Airfree Schlenk Inert Gas Vacuum Manifold, Double Bank 3 410 mm 1 Each
$1,600.60
$1,146
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
AF-0060-02 Airfree Schlenk Inert Gas Vacuum Manifold, Double Bank 4 510 mm 1 Each
$2,002
$1,432
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
AF-0060-03 Airfree Schlenk Inert Gas Vacuum Manifold, Double Bank 5 610 mm 1 Each
$2,351.50
$1,681
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

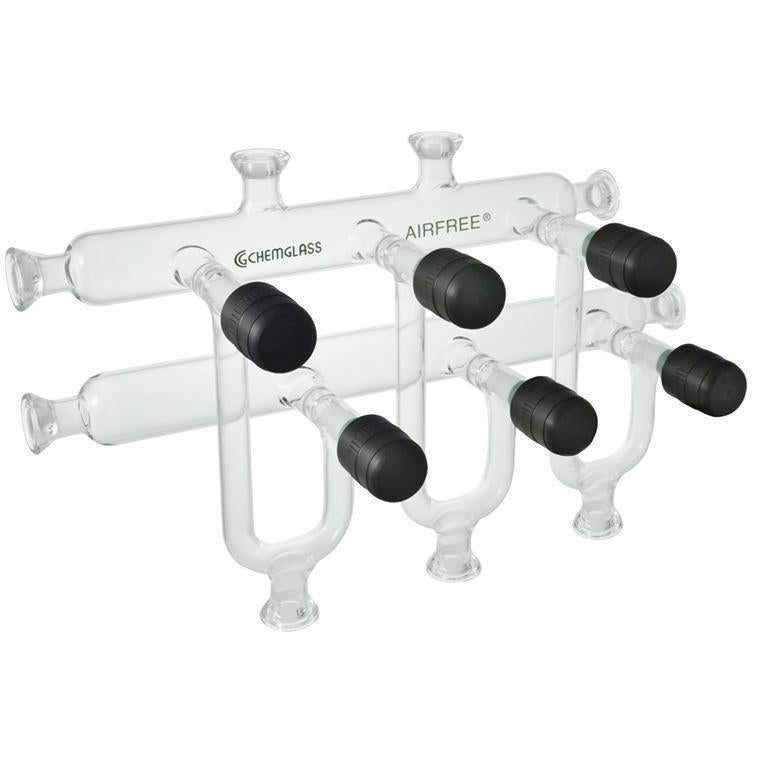

Double bank manifold available in 3, 4 or 5 port configuration. Forward facing 0-8mm Chem-Vac™ Chem-Cap® valves permit easy operation of manifold inside of a fume hood. Main ports are spaced 100mm center to center with an additional 2 ports on the upper bank that can be used for gauging or sealed with AF-0210 stoppers. All connection ports are #15 o-ring joint connections that incorporate a greaseless o-ring seal. Manifold is modular in design allowing the user tremendous flexibility in performing experiments. Adapters from #15 o-ring joints to standard taper components, serrated hose connections or 3/8" Cajon® fittings are available to allow the ports to be used with existing glassware. Replacement Chem-Vac™ Chem-Cap® plug is listed below.
