VELP LH Analog Overhead Stirrer, 80 Ncm, Up to 40 L
- Support Stand, Clamp and Stirring Shaft sold separately.
| SKU | Description | Volume Maximum | Speed | Viscosity Maximum | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|
| F201A0156 | LH Analog Overhead Stirrer | 40 L | 50 - 2000 rpm | 50,000 mPa·s | 110-230 V / 50-60 Hz | 1 Each | $1,455 |
Description

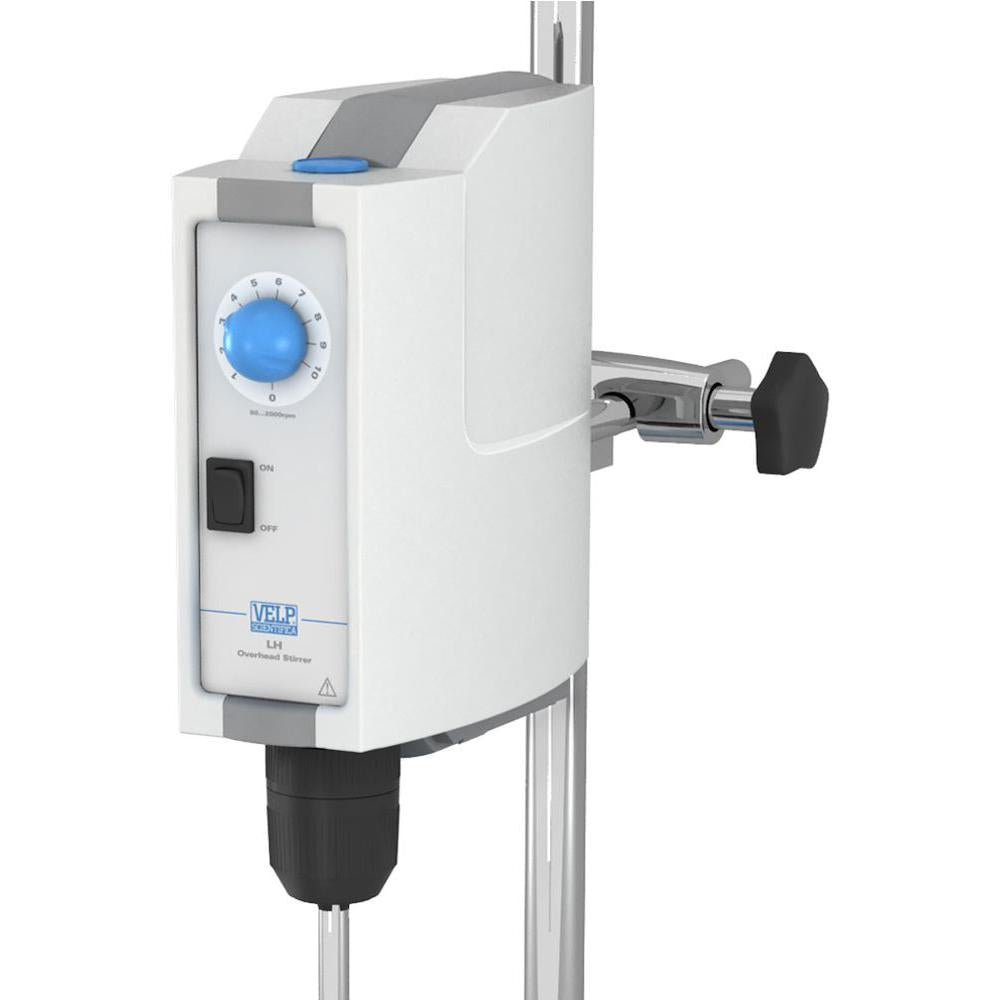

LH Overhead Stirrer
Analog overhead stirrer with 80 Ncm torque able to stir up to 40 L.
Powerful, Safe and Easy to use
The LH is an intuitive overhead stirrer ensuring safety with overload, over-current and overheating protection.
Easy to install, resistant and with a small footprint, LH is your best choice for medium-high viscosity samples.
VELP LH ensures a smooth start and vigorous agitation even at maximum speed!
LH can reach speeds of 2000 rpm and stir up to 40 litres. The device can manage high viscosity, with a maximum of 50,000 mPa*s.
The easy chuck is easy to close and can accommodate shafts with up to 10 mm diameter and does not require any tool.
Resistant and lightweight
LH is designed to offer a long lifespan even in challenging operating conditions.
The special technopolymer structure and the IP 40 guarantee good chemical resistance and special handling, being among the lightest on the market.
The robust motor guarantees continuous operations over the years, without additional maintenance costs.
Specifications
| Construction Material | technopolymer and epoxy painted aluminum alloy |
|---|---|
| Chuck Range | 1 - 10 mm |
| Visualization of Effective Speed | graduated scale |
| Electronic Protection Rating | CEI EN 60529 IP 40 |
| Power | 190 W |
| Weight | 2.9 kg |
| Dimensions (WxHxD) | 80x230x196 mm |
| Stirring Speed | 50 - 2000 rpm |
| Stirring Volume Max (H2O) | 40 liters |
| Max Viscosity | 50,000 (mPa*s) |
| Torque Max | 80 Ncm |
| Allowed Room Temp | 0 - 40 °C |
Documentation
| Product Data Sheets |
|---|
| LH Overhead Stirrer Product Data Sheet |
| PW - LH - LS - ES Overhead Stirrers Instruction Manual |
