VELP Overhead Stirrer Accessories
| Image | SKU | Description | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|
|
A00001312 | Chuck guard for OHS Overhead Stirrers | 1 Each | $100 | |
|
A00001301 | Double clamp | 1 Each | $107 | |
|
A00001302 | Ribbon clamp | 1 Each | $132 | |
|

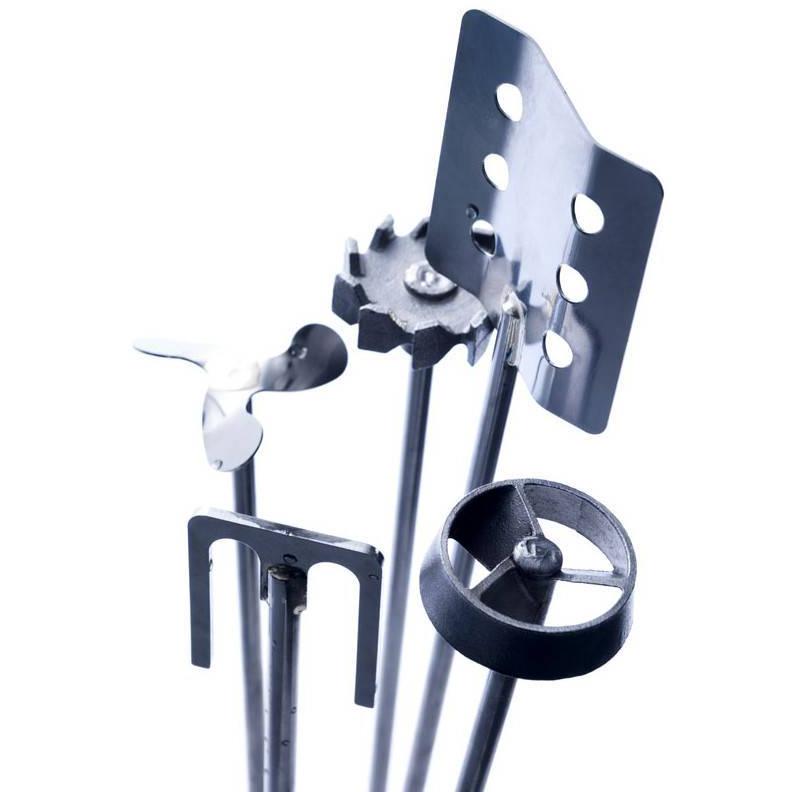

A00001311 | Stirring shaft with anchor; tangential flow. Shaft 7 mm Ø x 400 mm length. Impeller 45 mm Ø. | 1 Each | $120 | |
|
A00001306 | Stirring shaft with fixed blade; radial flow. Shaft 7 mm Ø x 400 mm length. Impeller 50 mm Ø. | 1 Each | $134 | |
|
A00001304 | Stirring shaft with floating blade, radial flow. Shaft 7 mm Ø x 400 mm length. Impeller 93 mm Ø. | 1 Each | $150 | |
|
A00001305 | Stirring shaft with folding blade, radial flow. Shaft 7 mm Ø x 400 mm length. Impeller 60 mm Ø. | 1 Each | $147 | |
|
A00001308 | Stirring shaft with paddle, 6 holes; tangential flow. Shaft 7 mm Ø x 510 mm length. Impeller 69 mm Ø. | 1 Each | $153 | |
|
A00001307 | Stirring shaft with propeller; axial flow. Shaft 7 mm Ø x 400 mm length. Impeller 60 mm Ø. | 1 Each | $147 | |
|
A00001309 | Stirring shaft with turbine; radial flow. Shaft 7 mm Ø x 400 mm length. Impeller 49 mm Ø. | 1 Each | $242 | |
|
A00001310 | Stirring shaft with turbo propeller; axial flow. Shaft 7 mm Ø x 400 mm length. Impeller 46 mm Ø. | 1 Each | $250 | |
|
A00000369 | Telescopic H-Stand; compatible with all VELP Overhead Stirrers. Support Rod 34 mm Ø. Dimensions 461 x 430 mm. Height 615 - 1015 mm. Max Load 10 kg. | 1 Each | $684 | |
|
A00000366 | Universal H-Stand; compatible with all VELP Overhead Stirrers. Support Rod 28 mm Ø. Dimensions 462 x 430 mm. Height 1015 mm. Max Load 10 kg. | 1 Each | $466 |
Description
Overhead stirrers require stirring shaft for precise working. Choosing the correct stirring shaft is an important step to obtain the best stirring performance.
It is important to evaluate the characteristics and the effects on the fluid of the stirring shaft, together with the volume and viscosity:
- Desired type of flow: Axial, Tangential, Radial
- Speed range of your application
VELP H-Stand ensure stability and resistance for lab bench OHS application
VELP H-Stands are the ideal solution when the overhead stirrer is working on laboratory benches.
We have designed our H-Stand to guarantee the maximum stability thanks to the H-shape of the base and the maximum resistance choosing premium materials such as aluminum and stainless steel, properly treated in order to resist to chemicals and corrosion.
The Telescopic H-Stand facilitates the daily operations being easy-to-use when raising and lowering the overhead stirrer from your sample.
Safety first with the Chuck Guard
Chuck Guard is the protective accessory for OHS Overhead Stirrers. The guard helps to protect operators from contact with the upper part of the chuck and prevents potential entanglement with the rotating shafts.
Chuck Guard is built with top quality material, ensuring resistance and excellent visibility.
- Easy-to-use: just fix the support plate using two screws
- Robust construction
- Light weight
Documentation
| Product Data Sheets |
|---|
| Stirring Shaft Comparison |
