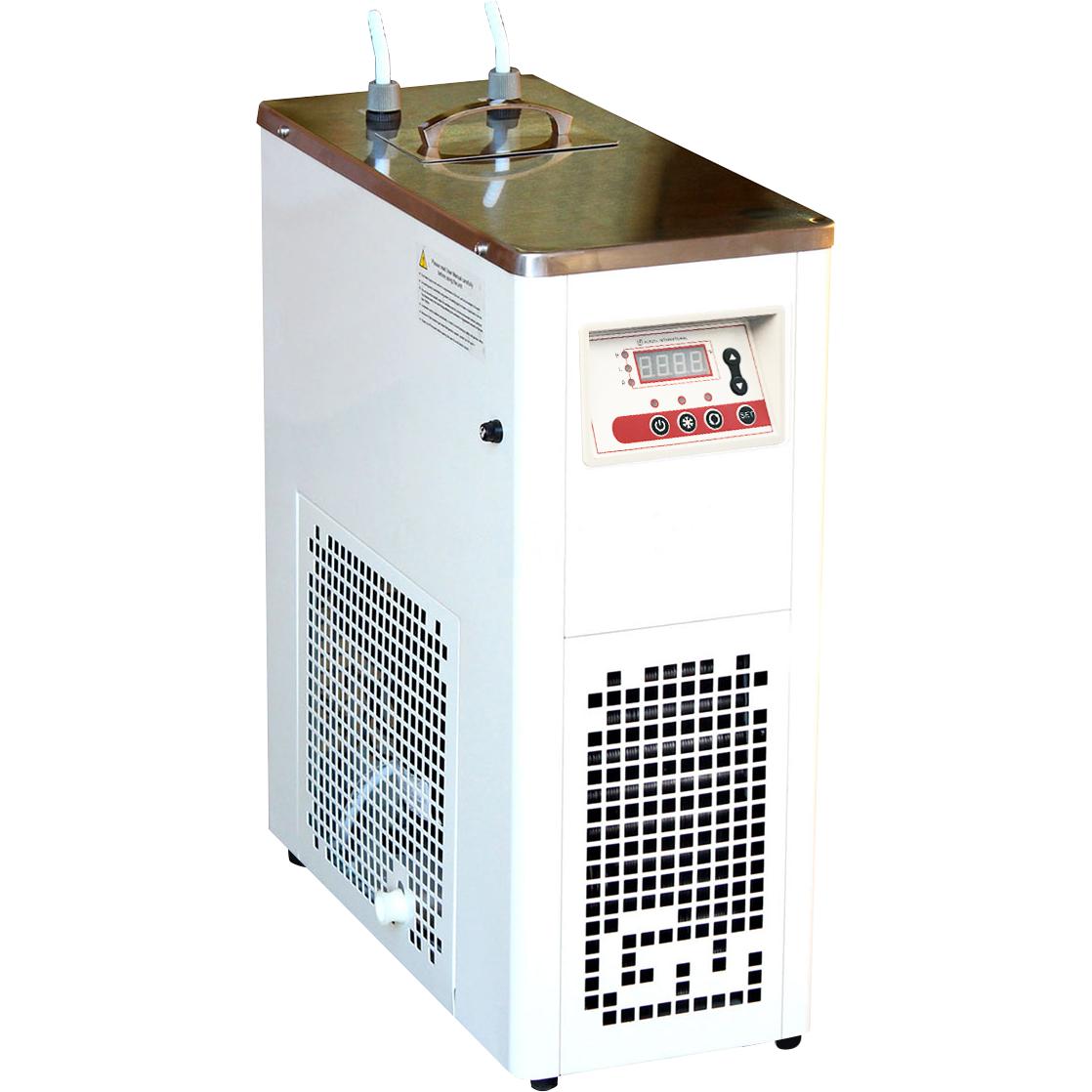

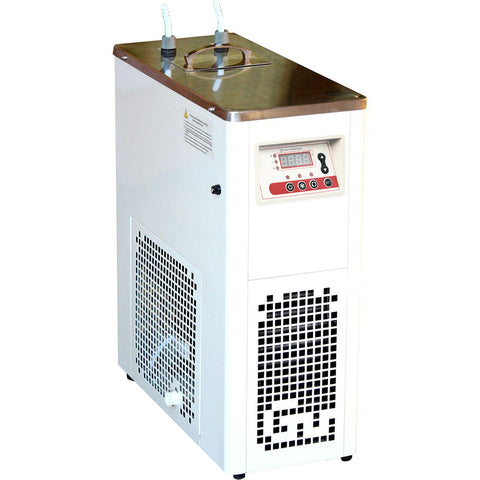

Ai C15 Series Compact Recirculating Chiller, 3 Liter, -15°C, Centrifugal Pump
| SKU | Description | Filling Volume | Temperature Range | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|
| C15-3-2L.110 | Ai Compact Recirculating Chiller, Centrifugal Pump | 3 L | Ambient to -15 °C | 110V 60Hz 1-PH, 500 watts, UL/CSA Certified | 1 Each |
|
Description
Ai C15 series recirculating chillers are the true thermostatic control laboratory chiller, this closed laboratory chiller is ideal for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.
Ai C15 are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while microprocessor PID controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.
IMPORTANT! Please note, the -15°C/5°F Ultimate Temperatures are tested under empty load conditions (No Rotary Evaporators Or Jacketed Reactors Attached).
C15 circulating chiller features
- ETL tested to UL and CSA standards
- No dry ice or liquid nitrogen needed
- 360 degree rotating chilling fluid connectors
- ANSI standard all stainless steel reservoir
- All steel construction for durability
- Small footprint saves valuable lab space
- Cost saving as the water consumption is completely eliminated
- Eco-friendly R404A refrigerant
- Insulated tubing included
- Recommended for 2L rotary evaporators
- Plug and play, no assembly required
Attention! Do NOT use Ai Chill-50 heat transfer fluid with this unit.
Specifications
| SKU | C15-3-2L.110 |
|---|---|
| Model | C15-3-2L |
| Electrical | 110V 60Hz 1-PH, 500 watts, UL/CSA Certified |
| Compressor Make | Embraco (Brazil) |
| Compressor Power | 115V 60Hz 1 HP |
| Number of Compressors | One |
| Refrigerant | R404A (Eco-friendly) |
| Cooling Capacity @ 25 °C | @0°C: 400W |
| Recirculating Pump Type | Centrifugal; Shanghai XinXiShan MP-20R |
| Output Power | 15W; 110V 50/60Hz 310mA 2650-3100 rpm |
| Pumping Speed | 17 L/min or 4.5 gallon/min |
| Maximum Head | 6.6 feet or 2 meter |
| Max Pressure | 2.9 psi |
| Reservoir | 304 stainless steel, polished |
| Hose Connection | 3/8" hose barb x 2 |
| Filling Volume | 3 L |
| Controller | Digital microprocessor PID controlled |
| Display | Celsius °C |
| Temperature Accuracy | +/- 2 °C |
| Temperature Range | Ambient to -15 °C |
| Temperature Sensor | Pt100 |
| Housing Material | Powder coated type 42 stainless steel |
| Recommended Coolant | > 10 °C distilled water; 10 °C to -15 °C 50% ethylene glycol + 50% distilled water |
| Ambient Environmental Temp | -15 °C to 25 °C, at < 66% humidity |
| Dimensions | 16 x 9 x 22" |
| Weight | 60 lbs |
| Shipping Dimensions | 24 x 14 x 30" |
| Shipping Weight | 105 lbs |
| Safety Features | Compressor over-temp protection, Short circuit & ground protection, Over-current protection, Compressor delay start protection |
| For Use With | 2L rotary evaporators |
| Warranty | One year |
| Compliance | UL 61010-1 :2012 Ed.3+R:29Apr2016; CSA C22.2#61010-1 :2012 Ed.3 |
