Ai C30 Series Recirculating Chillers, -30°C, Centrifugal Pump
- Across International C30 Chillers are ideal for both rotary evaporators and jacketed reactors
- Available in 5L, 10L, 20L, and 40L sizes
- Each unit available with optional UL and CSA certification
$5,390
$5,120
and up
| Image | SKU | Description | Filling Volume | Temperature Range | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|
|
C30-10-5L.220 | Ai Recirculating Chiller, 20L/Min Centrifugal Pump | 10 L | Ambient to -30 °C | 220V 60Hz 1-PH, 1100 watts, UL/CSA Certified | 1 Each |
|
|
|

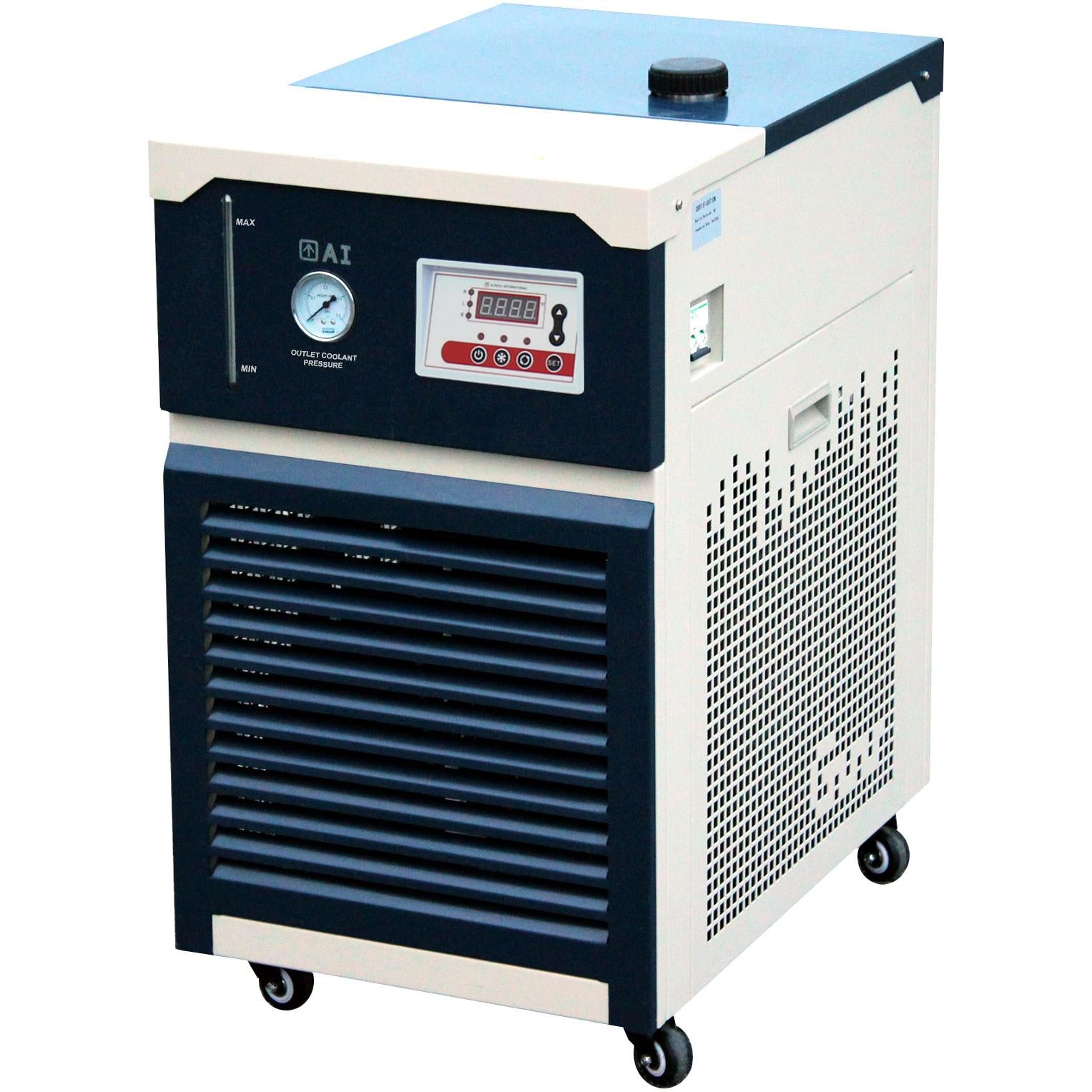

C30-17-10L.220 | Ai Recirculating Chiller, 20L/Min Centrifugal Pump | 17 L | Ambient to -30 °C | 220V 60Hz 1-PH, 1200 watts, UL/CSA Certified | 1 Each |
|
|
|

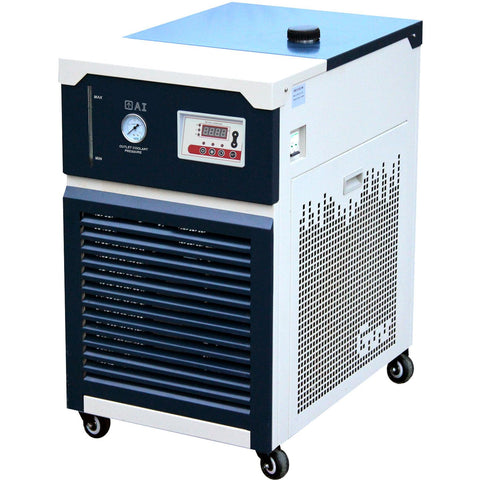

C30-30-20L.220 | Ai Recirculating Chiller, 20L/Min Centrifugal Pump | 30 L | Ambient to -30 °C | 220V 60Hz 1-PH 9A, 1990 watts, UL/CSA Certified | 1 Each |
|
|
|

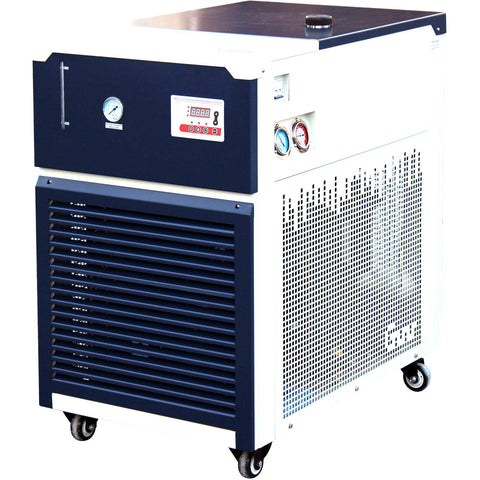

C30-40-50L.220 | Ai Recirculating Chiller, 30L/Min Centrifugal Pump | 40 L | Ambient to -30 °C | 220V 60Hz 1-PH 18A, 3960 watts, UL/CSA Certified | 1 Each |
|
Description
Ai C30 series recirculating chillers are the true thermostatic control laboratory chiller. These closed laboratory chillers are ideal for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.
Ai C30 are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease-of-use. The powerful force/suction pump provides constant flow rates, while microprocessor PID controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.
Note that -30°C/-22°F ultimate temperatures are tested under empty load condition (no rotary evaporators or jacketed reactors attached).
C30 circulating chiller features
- ETL tested to UL and CSA standards
- No dry ice or liquid nitrogen needed
- Advanced PID digital temp controller
- Built-in chilling fluid filter protects the recirculating pump and prevent blockage
- All steel construction for durability
- Eco-friendly R410A refrigerant
- Cost saving as the water consumption is completely eliminated
- Built-in casters for mobility
- Insulated tubing included
- Recommended for 10L rotary evaporators
Specifications
| SKU | C30-10-5L.220 | C30-17-10L.220 | C30-30-20L.220 | C30-40-50L.220 |
|---|---|---|---|---|
| Model | C30-10-5L | C30-17-10L | C30-30-20L | C30-40-50L |
| Temperature Range | Ambient to -30 °C | Ambient to -30 °C | Ambient to -30 °C | Ambient to -30 °C |
| Electrical | 220V 60Hz 1-PH, 1100 watts, UL/CSA Certified | 220V 60Hz 1-PH, 1200 watts, UL/CSA Certified | 220V 60Hz 1-PH 9A, 1990 watts, UL/CSA Certified | 220V 60Hz 1-PH 18A, 3960 watts, UL/CSA Certified |
| Cooling Capacity @ 25 °C | @ 0°C: 1,250W; @ -10°C: 800W; @ -20°C: 300W; @ -30°C: 150W | @ 0°C: 1,750W; @ -10°C: 1,100W; @ -20°C: 700W; @ -30°C: 300W | @ 0°C: 2,800W; @ -10°C: 1,800W; @ -20°C: 1,000W; @ -30°C: 500W | @ 0°C: 5,000W; @ -10°C: 3,000W; @ -20°C: 1,800W; @ -30°C: 1,000W |
| Compressor Make | Panasonic | Panasonic | Panasonic | KK |
| Compressor Power | 208-230V 60Hz 1-PH | 208-230V 60Hz 1-PH | 208-230V 60Hz 1-PH | 208-230V 60Hz 1-PH |
| Number of Compressors | One | One | One | One |
| Refrigerant | R410A | R410A | R410A | R404A (3.2 kgs) |
| Recirculating Pump Type | Centrifugal | Centrifugal | Centrifugal | Centrifugal; 25PLBR30-10 |
| Output Power | 100W | 100W | 100W | 280W |
| Pumping Speed | 20 L/min or 5.3 gallon/min | 20 L/min or 5.3 gallon/min | 20 L/min or 5.3 gallon/min | 30 L/min or 8 gallon/min |
| Maximum Head | 20 feet or 6 meters | 20 feet or 6 meter | 20 feet or 6 meter | N/A |
| Max Pressure | 5.8 psi | 5.8 psi | 5.8 psi | 1 bar |
| Reservoir | 304 stainless steel, polished | 304 stainless steel, polished | 304 stainless steel, polished | 304 stainless steel, polished |
| Filling Volume | 10 L | 17 L | 30 L | 40 L |
| Hose Connection | 3/8" hose barb x 2 | 3/8" hose barb x 2 | 3/8" hose barb x 2 | 3/4" NPT (1/2" NPT drain port; 3/8" hose barb overflow port) |
| Controller | Digital microprocessor PID controlled | Digital microprocessor PID controlled | Digital microprocessor PID controlled | Digital microprocessor PID controlled |
| Display | Celsius °C | Celsius °C | Celsius °C | Celsius °C |
| Temperature Accuracy | +/- 2 °C | +/- 2 °C | +/- 2 °C | +/- 2 °C |
| Temperature Sensor | Pt100 | Pt100 | Pt100 | Pt100 |
| Housing Material | Powder coated type 42 stainless steel | Powder coated type 42 stainless steel | Powder coated type 42 stainless steel | Powder coated type 42 stainless steel |
| Recommended Coolant | > 10 °C distilled water; 10 °C to -30 °C 50% ethylene glycol + 50% distilled water | > 10 °C distilled water; 10 °C to -30 °C 50% ethylene glycol + 50% distilled water | > 10 °C distilled water; 10 °C to -30 °C 50% ethylene glycol + 50% distilled water | > 10 °C distilled water; 10 °C to -30 °C 50% ethylene glycol + 50% distilled water |
| Ambient Environmental Temp | -15 °C to 25 °C, at < 66% humidity | -15 °C to 25 °C, at < 66% humidity | -15 °C to 25 °C, at < 66% humidity | -15 °C to 25 °C, at < 66% humidity |
| Dimensions | 26.5 x 17 x 27" | 26.5 x 18 x 30.5" | 30 x 19.5 x 34" | 40 x 25 x 41" |
| Weight | 155 lbs | 175 lbs | 220 lbs | 365 lbs |
| Shipping Dimensions | 32 x 22 x 36" | 32 x 23 x 40" | 38 x 25 x 45" | 46 x 30 x 51" |
| Shipping Weight | 210 lbs | 235 lbs | 280 lbs | 480 lbs |
| Safety Features | Compressor over-temp protection, Compressor delay start protection, Short circuit & ground protection, Over-current protection | Compressor over-temp protection, Compressor delay start protection, Short circuit & ground protection, Over-current protection | Compressor over-temp protection, Compressor delay start protection, Short circuit & ground protection, Over-current protection | Compressor over-temp protection, Compressor delay start protection, Short circuit & ground protection, Over-current protection |
| For Use With | 5L rotary evaporators | 10L rotary evaporators | 20L rotary evaporators | 50L rotary evaporators |
| Warranty | One year | One year | One year | One year |
| Compliance | UL 61010-1 :2012 Ed.3+R:29Apr2016; CSA C22.2#61010-1 :2012 Ed.3 | UL 61010-1 :2012 Ed.3+R:29Apr2016; CSA C22.2#61010-1 :2012 Ed.3 | UL 61010-1 :2012 Ed.3+R:29Apr2016; CSA C22.2#61010-1 :2012 Ed.3 | UL 61010-1 :2012 Ed.3+R:29Apr2016; CSA C22.2#61010-1 :2012 Ed.3 |
