Ai EasyVac Compact Vacuum Pumps with Oil Mist Filter
$590
$532
and up
| Image | SKU | Description | Free Air Displacement | Ultimate Vacuum | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|
|
EV7.110 | Ai EasyVac Compact Vacuum Pump with Oil Mist Filter | 7 cfm (110V), 6 cfm (220V) | 150 micron/millitorr | 110V/220V, 50/60Hz | 1 Each |
|
|
|
EV9.110 | Ai EasyVac Compact Vacuum Pump with Oil Mist Filter | 9 cfm (110V), 8 cfm (220V) | 15 micron/millitorr | 110V/220V, 50/60Hz | 1 Each |
|
Description

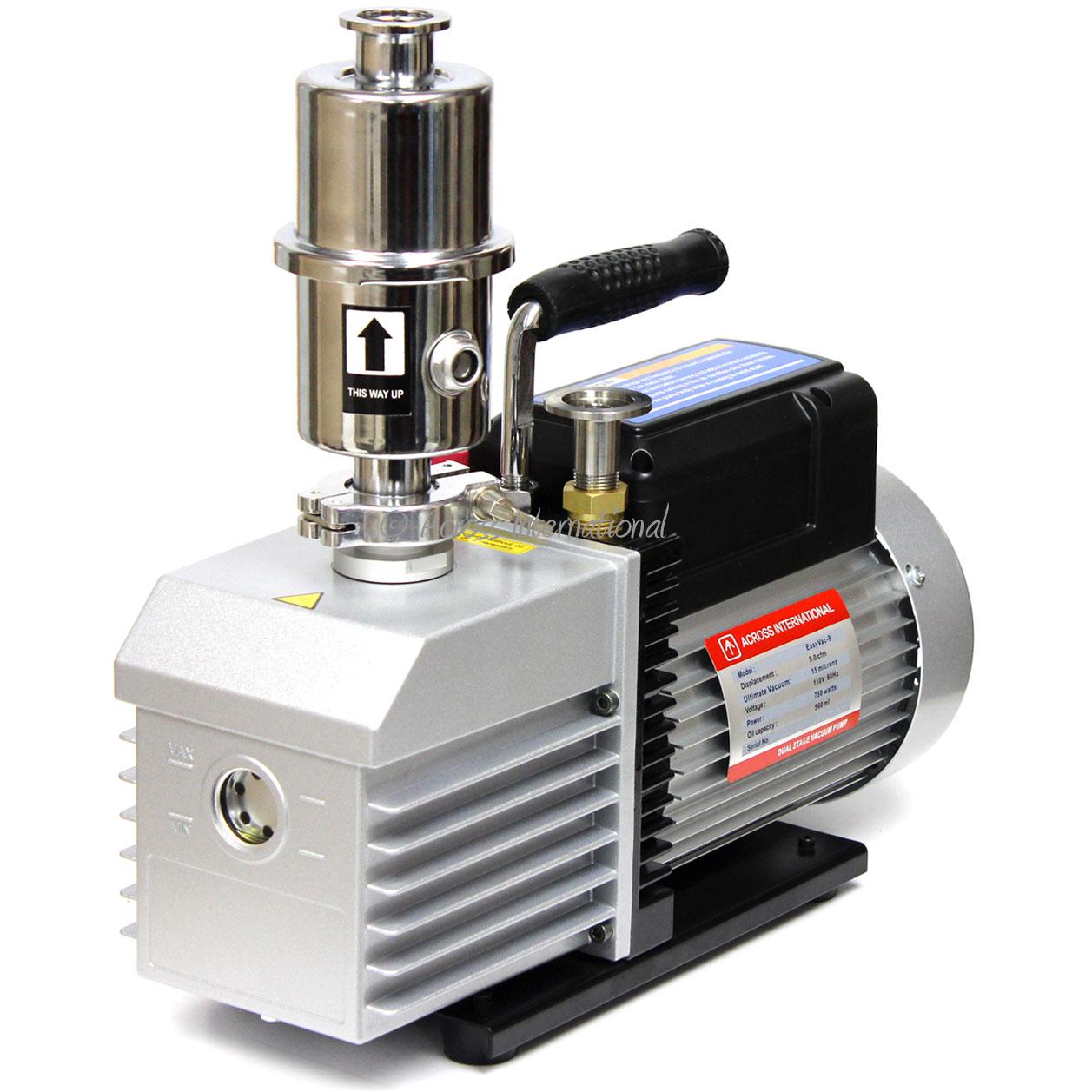

Ai EasyVac's are sliding-vane rotary, compact, vacuum pumps. The EV7 model is single-stage pump and the Ai EV9 model is a dual-stage pump. Both models come with all necessary fittings and a exhaust oil mist filter which also returns trapped pump oil back to the pump and makes the pump quieter to run. The EasyVac vacuum pumps are 110V/220V 50/60Hz switchable.
It is important to note that pumps should always be ran in a well ventilated area.
Specifications
| Model | EV7 | EV9 |
|---|---|---|
| Pumping Rate | 7 cfm (110V), 6 cfm (220V) | 9 cfm (110V), 8 cfm (220V) |
| Vacuum Level | 150 micron/millitorr | 15 micron/millitorr |
| Vacuum Connection | 3/8" hose barb | KF25/NW25 flange |
| Exhaust Filter Connection | KF25/NW25 flange | KF25/NW25 flange |
| Oil Volume | 415 mL / 0.44 quart | 560 mL / 0.6 quart |
| Motor Rate | 1720 rpm | 1720 rpm |
| Working Temperature | -5 to 60°C | -5 to 60°C |
| Pump Dimensions | 13" L x 5" W x 10" H | 16.5" L x 6" W x 11" H |
| Pump Weight | 22 lbs | 37 lbs |
| Recommended Oil | Ultragrade 19 | Ultragrade 19 |
| CE Compliance | Yes | Yes |
| Warranty | 1-Year | 1-Year |
| Electrical | 110V/220V 50/60Hz or 220V 50/60Hz, 1-Stage 1/2 HP, 370 watts | 110V/220V 50/60Hz switchable, Dual-Stage, 1 HP, 750 watts |
| Vacuum Hose Included | 3/8" white silicone vacuum hose (3 ft) | KF25 flexible stainless steel bellow (3.3 ft), KF25 clamp and centering ring set (x 2) |
