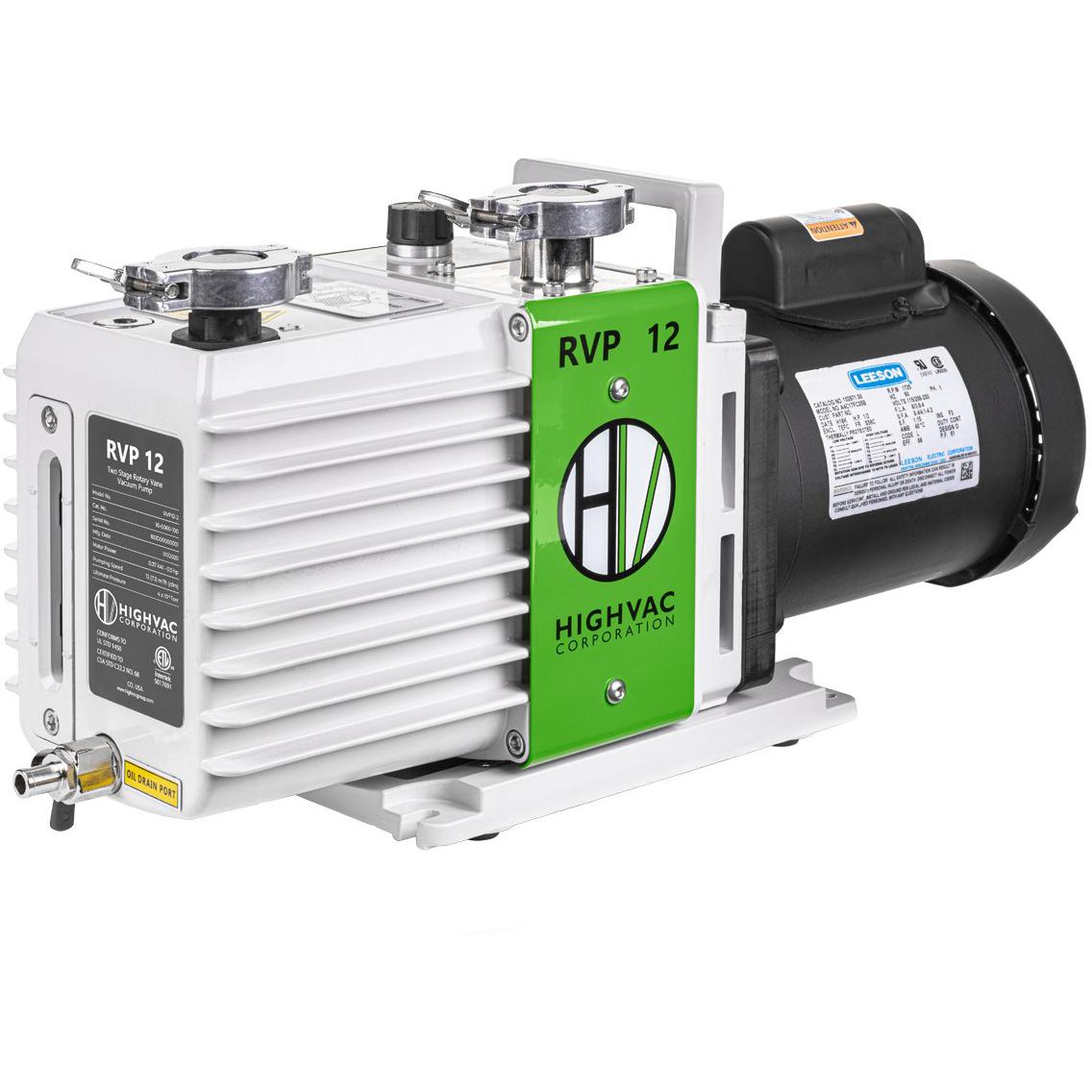

RVP 12 Two Stage Rotary Vane Vacuum Pump
$3,800
$3,423
and up
| SKU | Description | Ultimate Vacuum (without Gas Ballast) | Free Air Displacement | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|

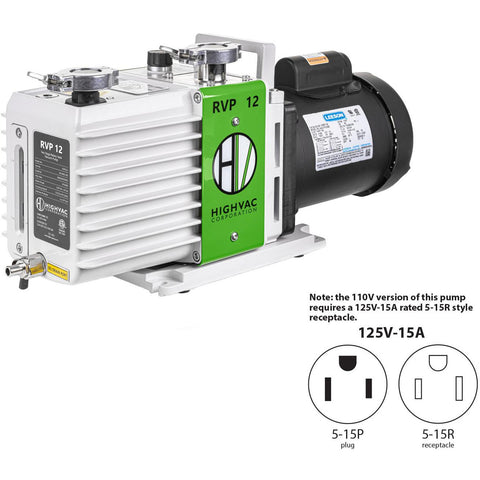

| 10-0060-100 | RVP 12 Two Stage Rotary Vane Vacuum Pump | 3.75x10-3 Torr | 7.1 cfm / 201 L/min | 110V, 1PH, 60Hz, ETL/CSA/UL Certified | 1 Each |
|
|
| 10-101-1101 | RVP 12 Two Stage Rotary Vane Vacuum Pump, Explosion Proof | 3.75x10-3 Torr | 7.1 cfm / 201 L/min | 110V, 1PH, 60Hz, ETL/CSA/UL Certified | 1 Each |
|
|

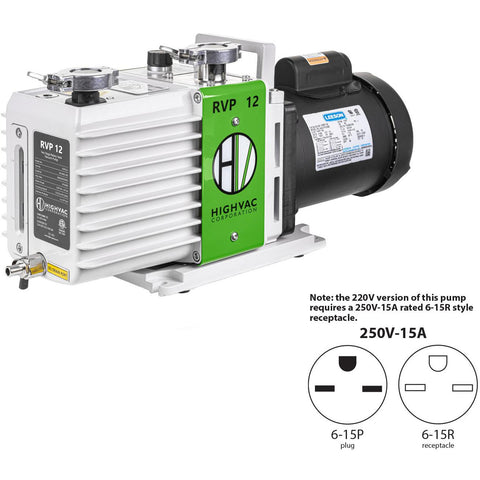

| 10-0060-300 | RVP 12 Two Stage Rotary Vane Vacuum Pump | 3.75x10-3 Torr | 7.1 cfm / 201 L/min | 220V, 1PH, 60Hz, ETL/CSA/UL Certified | 1 Each |
|
|
| 10-101-2101 | RVP 12 Two Stage Rotary Vane Vacuum Pump, Explosion Proof | 3.75x10-3 Torr | 7.1 cfm / 201 L/min | 220V, 1PH, 60Hz, ETL/CSA/UL Certified | 1 Each |
|
|
| 10-101-3101 | RVP 12 Two Stage Rotary Vane Vacuum Pump, Explosion Proof | 3.75x10-3 Torr | 7.1 cfm / 201 L/min | 230V, 3PH, 60Hz, ETL/CSA/UL Certified | 1 Each |
|
|
| 10-101-4101 | RVP 12 Two Stage Rotary Vane Vacuum Pump, Explosion Proof | 3.75x10-3 Torr | 7.1 cfm / 201 L/min | 460V, 3PH, 60Hz, ETL/CSA/UL Certified | 1 Each |
|
Description
RVP 12 2 stage, oil sealed rotary vane vacuum pumps. 12 cubic meter/hr, 2 stage, oil sealed rotary vane vacuum pump. 3.75x10-3 Torr ultimate pressure (3.75 millitorr).
Options available for ordinary location and Hazardous Location (C1D2).HIGHVAC's RVP series of two stage rotary vane vacuum pumps sprouts from the company's roots in the vacuum industry, now over 40 years deep. Having serviced almost every major make and model of rotary vane vacuum pump, we know a thing or two, and are proud to bring this high-quality product to market.
ETL, CSA Certified, Conforms to UL STD 1450
| Model | RVP 12-2 |
|---|---|
| ETL Listed | Yes |
| Phase | 1/3 |
| Voltage | 110V/220V/230V/460V |
| Motor Power | 0.5 HP |
| Motor Power | 0.4 kW |
| Pumping Speed | 12 m3/h |
| Pumping Speed | 7.1 CFM |
| Ultimate Total Pressure w/o Gas Ballast | 3.75x10-3 Torr |
| Ultimate Total Pressure w/ Gas Ballast | 3.75x10-2 Torr |
| Frequency | 60 Hz |
| Rotational Speed of Pump | 1750 RPM |
| Oil Type | Hydrocarbon (Standard) |
| Oil Quantity | 0.55-1.1 L |
| Inlet Connection | KF25 |
| Outlet Connection | KF25 |
| Dimensions | 454 x 170 x 242 mm |
| Common Industry Use | For CBD, General Industrial, Semiconductor, Coating, Laboratory |
