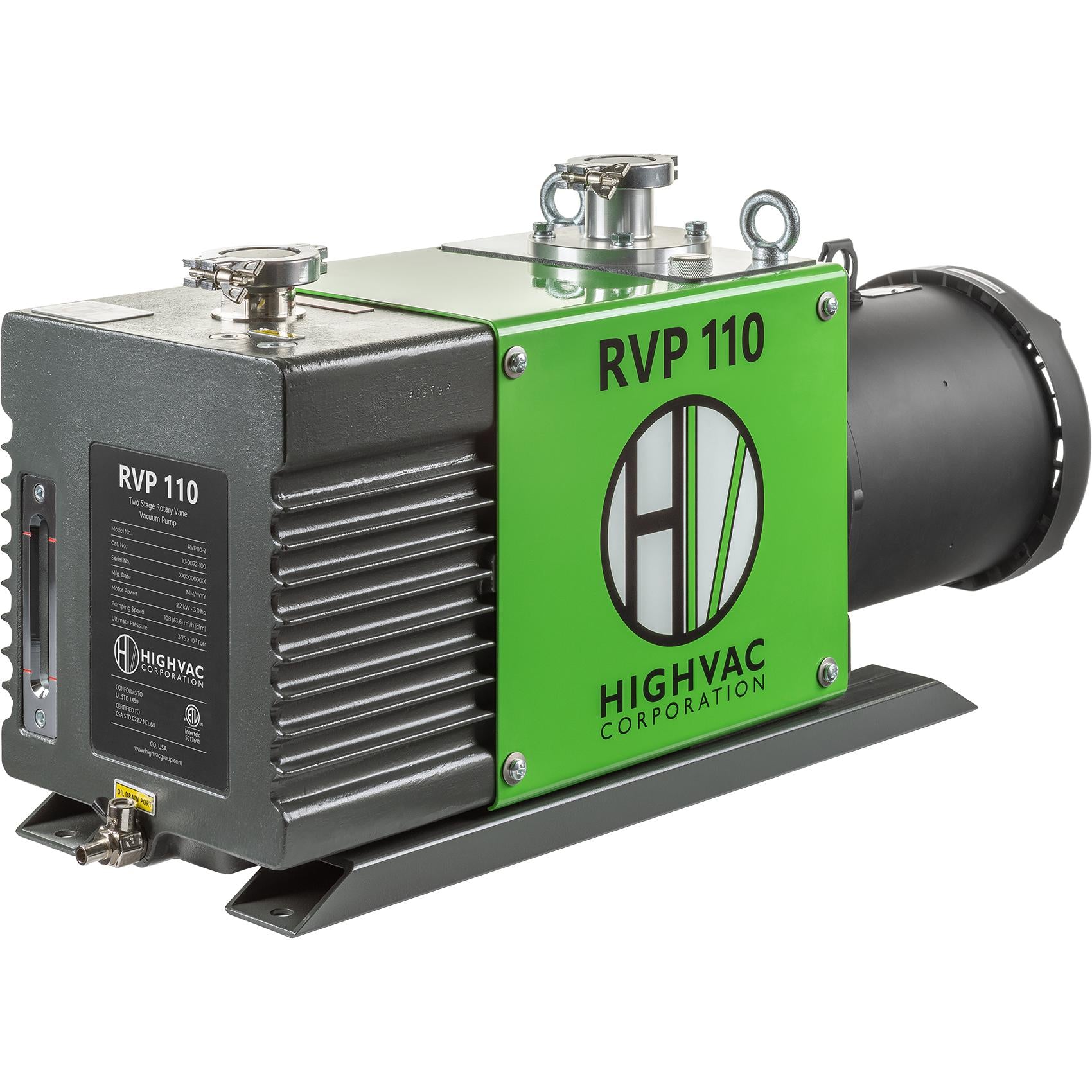

RVP 110 Two Stage Rotary Vane Vacuum Pump
RVP 110 Two Stage Rotary Vane Vacuum Pump
FREE SHIPPING

RVP 110 Two Stage Rotary Vane Vacuum Pump

Questions? Quotes? Let's chat!
$13,400
$12,129 and up
SKU Description Ultimate Vacuum (without Gas Ballast) Free Air Displacement Electrical Quantity Price Add to Cart
10-0072-100 RVP 110 Two Stage Rotary Vane Vacuum Pump 3.75x10-3 Torr 63.6 cfm / 1800 L/min 230V, 3PH, 60Hz, ETL/CSA/UL Certified 1 Each
$13,400
$12,129
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
10-0072-300 RVP 110 Two Stage Rotary Vane Vacuum Pump, Explosion Proof 3.75x10-3 Torr 63.6 cfm / 1800 L/min 230V, 3PH, 60Hz, ETL/CSA/UL Certified 1 Each
$16,000
$14,423
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
10-0073-100 RVP 110 Two Stage Rotary Vane Vacuum Pump 3.75x10-3 Torr 63.6 cfm / 1800 L/min 460V, 3PH, 60Hz, ETL/CSA/UL Certified 1 Each
$13,400
$12,129
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
10-0073-300 RVP 110 Two Stage Rotary Vane Vacuum Pump, Explosion Proof 3.75x10-3 Torr 63.6 cfm / 1800 L/min 460V, 3PH, 60Hz, ETL/CSA/UL Certified 1 Each
$16,000
$14,423
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

RVP 110 2 stage, oil sealed rotary vane vacuum pumps. 3 phase 230V, or 460V. US Motors. 108 cubic meters/hr.

Options available for Ordinary location and Hazardous Location (C1D2).

HIGHVAC's RVP series of two stage rotary vane vacuum pumps sprouts from the company's roots in the vacuum industry, now over 40 years deep. Having serviced almost every major make and model of rotary vane vacuum pump, we know a thing or two, and are proud to bring this high-quality product to market.

ETL, CSA Certified, Conforms to UL STD 1450

Model RVP 110
ETL Listed Yes
Phase 3
Voltage 208-230V or 460V
Motor Power 5.0 HP
Motor Power 3.7 kW
Pumping Speed 108 m3/h
Pumping Speed 63.6 CFM
Ultimate Total Pressure w/o Gas Ballast 3.75x10-3 Torr
Ultimate Total Pressure w/ Gas Ballast 1.55x10-2 Torr
Frequency 60 Hz
Rotational Speed of Pump 1750 RPM
Oil Type Hydrocarbon (Standard)
Oil Quantity 2.5-4.2 L
Inlet Connection KF40
Outlet Connection KF40
Dimensions 606 x 210 x 340 mm
Common Industry Use For CBD, General Industrial, Semiconductor, Coating, Laboratory
