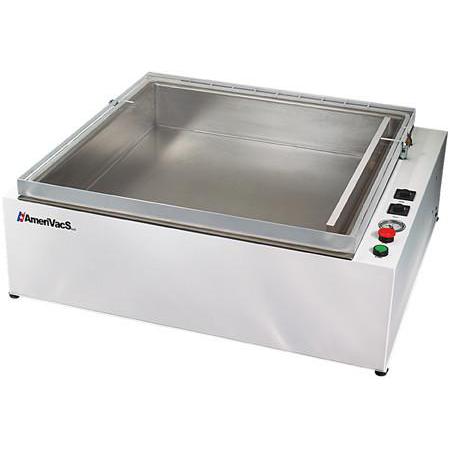

AmeriVacs AVCG-Series Chamber Vacuum Sealers, Gas Purge
SKU | Description | Maximum Vacuum | Vacuum Flow | Seal Size | Chamber Dimensions | Dimensions | Quantity | Price | Add to Cart |
---|---|---|---|---|---|---|---|---|---|
AVCG-20 | Chamber Vacuum Sealer with Gas Purge | 28.5 inHg | 18 cfm | 20 x 0.25 in | 22 x 22 x 4 in | 28 x 24 x 9.5 in | 1 Each |
|
Description
The solution for any general application packaging program, the AVCG is the ideal solution for valuable items to be protected from oxygen, moisture and static charge.
The AVCG is hand-assembled using top-grade materials and components. The AVCG has a compressed air-driven vacuum pump, eliminating any concern regarding noise, vibration, magnetic fields, or heat generation. Unlike electromechanically driven vacuum sealers, our characteristic AmeriVacS design prevents particle generation and oil contamination that often leads to costly maintenance and downtime.
Clean room compatible, the AVCG is the ideal choice for medical and electronic device manufacturers including tray, tape and reeled products; food industry retailers; and pharmaceutical and aerospace corporations. Precision components guide the AVCG’s industry setting seal speed and ensure clean, wrinkle-free seals without any bag distortion.
Order the optional second seal bar and the AVCG instantly doubles smaller package volume. One button touch sealing, preset vacuum controls, and a large 22" x 22" x 4" stainless steel vacuum chamber best defines this no-nonsense workhorse.
Specifications
Model | AVCG-20 |
---|---|
Seal Length | 20 in. |
Seal Width | 1/4 in. seal |
Vacuum Flow | 18CFM |
Max. Vacuum Pressure | 28.5 inHg |
Air Requirements | 18CFM @ 90PSI |
Suggested Minimum Air Compressor Size |
50+ Gallon |
Dimensions | 28"L x 24"W x 9.5"H |
Weight (lbs) | Net: 118 / Gross: 143 |
Electrical | 120V ac |
