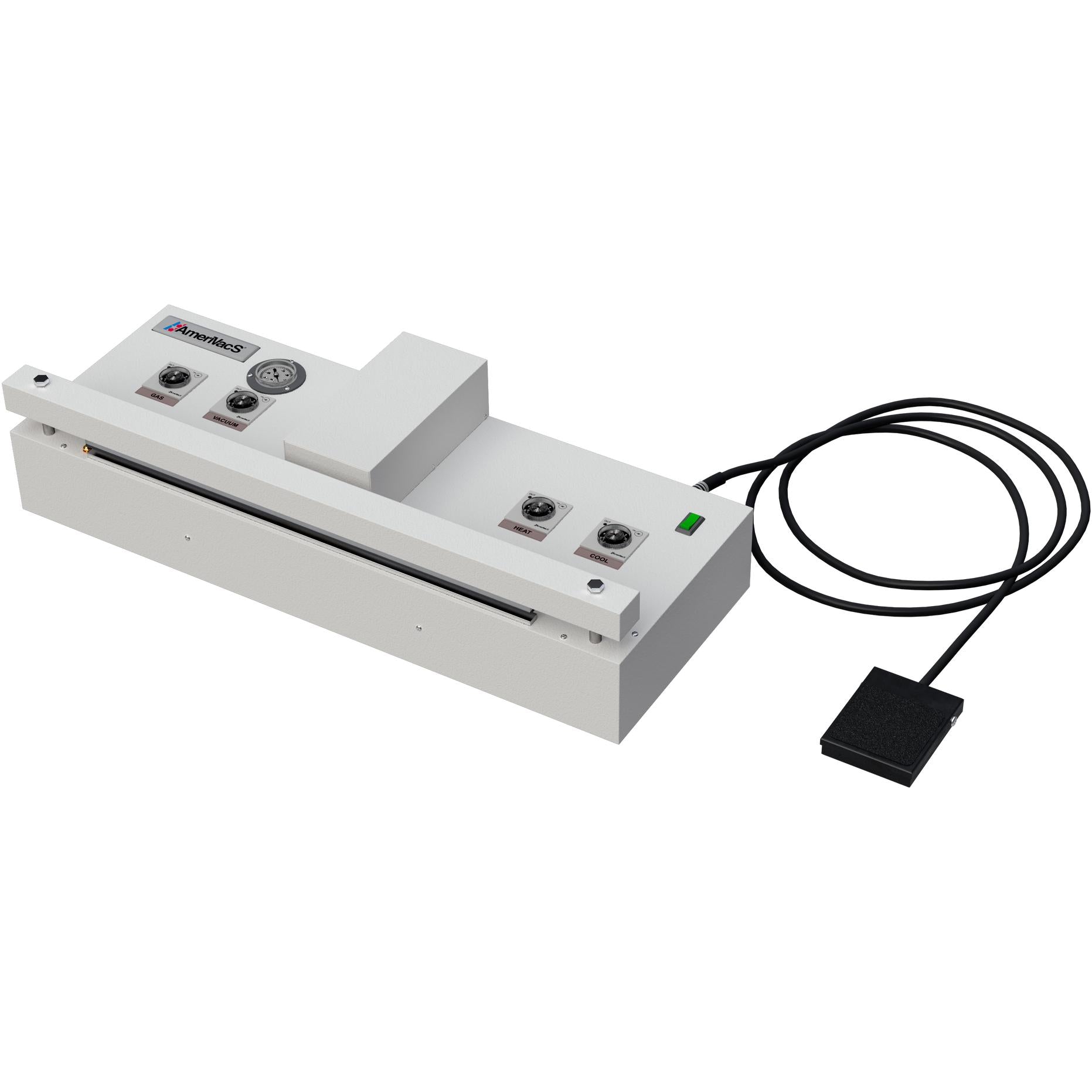

AmeriVacs AVN-Series Retractable Nozzle Vacuum Sealers, Gas Purge
- Requires an External Air Compressor
- 2-year Limited Warranty
| SKU | Description | Maximum Vacuum | Vacuum Flow | Seal Size | Dimensions | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|
| AVN-20 | Vacuum Sealer with Gas Purge | 25 inHg | 3 cfm | 20 x 0.25 in | 28 x 10 x 7 in | 1 Each |
|
|
| AVN-25 | Vacuum Sealer with Gas Purge | 25 inHg | 3 cfm | 25 x 0.25 in | 33 x 10 x 7 in | 1 Each |
|
|
| AVN-30 | Vacuum Sealer with Gas Purge | 25 inHg | 3 cfm | 30 x 0.25 in | 38 x 10 x 7 in | 1 Each |
|
|
| AVN-35 | Vacuum Sealer with Gas Purge | 25 inHg | 3 cfm | 35 x 0.25 in | 43 x 10 x 7 in | 1 Each |
|
|
| AVN-50 | Vacuum Sealer with Gas Purge | 27 inHg | 3 cfm | 50 x 0.25 in | 52 x 10 x 7 in | 1 Each |
|
Description
Foot pedal activated gas-flush vacuum packaging at its finest. The AVN's 1/4" wide-sealing element delivers a leak proof seal using any kind and thickness of flexible bags including clear, foil (Mylar), mil spec and ESD bags.
The AVN series is perfect for food, pharmaceutical, medical, electronics, clean room, and any general applications where moisture and oxygen are a threat to your product. With one touch of the pedal, the AVN flushes out oxygen and moisture with nitrogen or any other inert gas to protect and extend the life of your product. This quality vacuum sealer is also great for reducing the bulk of items or keeping them from wear due to friction during transportation. Clean room compatible, the AVN is also ideal for dry packaging applications on trays, tape and reel, tubes, and a variety of SMD shipping containers.
Combine the AVN’S precise automation with speed, extensive safety features, and incredible durability. Providing additional functionality and convenience, the AVN’s gas flush or vacuum functions can be switched off for impulse sealing only.
The AVN is hand assembled using only superior grade components. It features five seal lengths (20," 25," 30," 35," 50") and can be custom configured to meet CE certification requirements.
Features
- Clean Room compatible
- Foot Pedal activated
- Gas, Vacuum, Heat and Cool Timers
- Use with or without Gas Flush function
- Vacuum Gauge
- Stainless Steel High Flow Retractable Vacuum Nozzle
- Works with all popular moisture barrier bag materials
- Spare parts, fittings, air and gas tubing included
- Two year limited warranty
Specifications
| Model | AVN-20 | AVN-25 | AVN-30 | AVN-35 | AVN-50 | |
|---|---|---|---|---|---|---|
| Seal Length | 20 in. | 25 in. | 30 in. | 35 in. | 50 in. | |
| Seal Width | 1/4 in seal | |||||
| Vacuum Flow | 3 CFM | |||||
| Max Vacuum Pressure | 25 inHg | 25 inHg | 25 inHg | 25 inHg | 27 inHg | |
| Air Requirements | 6 CFM @ 110 PSI | 6 CFM @ 110 PSI | 6 CFM @ 110 PSI | 6 CFM @ 110 PSI | 12 CFM @ 110 PSI | |
| Suggested Minimum Air Compressor Size | 15+ Gallon | 15+ Gallon | 30+ Gallon | 30+ Gallon | 30+ Gallon | |
| Power Requirements | 120 Volts AC, 6Amps (during heat cycle only | |||||
| Unit Size (L x W x H) | 28" x 10" x 7" | 33" x 10" x 7" | 38" x 10" x 7" | 43" x 10" x 7" | 52" x 10" x 7" | |
| Approx. Weight | 30 lbs | 36 lbs | 42 lbs | 48 lbs | 65 lbs | |
Documentation
| Product Data Sheets |
|---|
| AVN Series User Manual |
