AmeriVacs AVP-Series Pneumatic Impulse Sealers
Image SKU Description Seal Size Dimensions Quantity Price Add to Cart
files/avp_seriespneumaticimpulsesealer_197f62d1-c181-4579-98aa-f889f788f58f.jpg
AVP-20 Pneumatic Impulse Sealer 20 x 0.25 in 28 x 10 x 7 in 1 Each
$1,595
$1,515
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
files/avp_seriespneumaticimpulsesealer_7c80f3ee-c8c6-4c01-b27e-60d868a12af1.jpg
AVP-25 Pneumatic Impulse Sealer 25 x 0.25 in 33 x 10 x 7 in 1 Each
$1,835
$1,743
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
files/avp_seriespneumaticimpulsesealer_5b30fc32-a876-4d5c-bb36-235dbd4d8b8f.jpg
AVP-30 Pneumatic Impulse Sealer 30 x 0.25 in 40 x 10 x 7 in 1 Each
$2,065
$1,961
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
files/avp_seriespneumaticimpulsesealer_1753a7d9-87c7-4270-bf67-1f1f28c4631b.jpg
AVP-35 Pneumatic Impulse Sealer 35 x 0.25 in 45 x 10 x 7 in 1 Each
$2,295
$2,180
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
files/avp_series_size_50_310b42e2-ae23-4ad0-a765-4221150eefd2.jpg

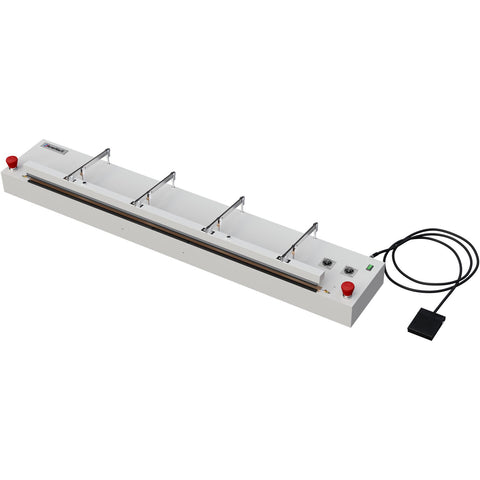

AVP-50 Pneumatic Impulse Sealer 50 in 60 x 10 x 7 in 1 Each
$4,395
$4,175
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

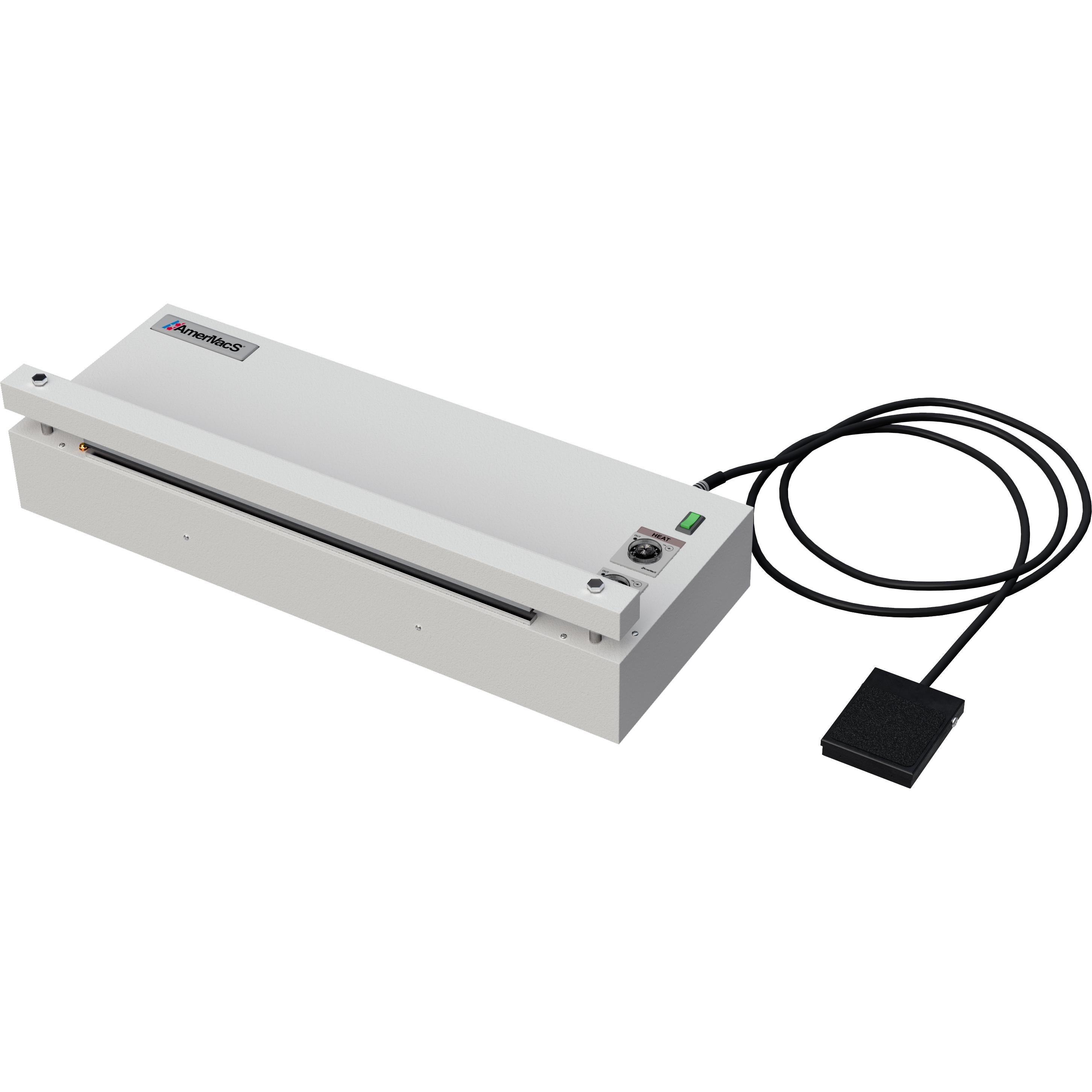

The AVP series was designed for heavy-duty applications. Form follows function providing an expansive clear work surface to hold product ready to be sealed. A one-tap steel encased foot switch provides hands-free operation.

The AVP series was designed for heavy-duty applications. The most evident feature of the AVP is its lack of visible controls. Form follows function providing an expansive clear work surface to hold product ready to be sealed.

Side-mounted heat and cool timers fitted to a powder coated steel chassis regulate seal parameters that are critical to obtaining airtight and watertight seals. A one-tap steel encased foot switch provides hands-free operation. And, of key significance, like the AVN, AVS and CAV, the AVP will not fire an impulse until the upper and lower jaw completely meet, further ensuring operator safety and uncompromised seal integrity.

The pressure bar is powder coated aluminum. Made of professional grade components, the AVP is still lightweight enough (29 lbs.) to be moved effortlessly in your facility.

Specifications

Model AVP-20 AVP-25 AVP-30 AVP-35 AVP-50
Seal Length 20 in. 25 in. 30 in. 35 in. 50 in.
Seal Width 1/4 in. seal 1/4 in. seal 1/4 in. seal 1/4 in. seal 1/4 in. seal
Air Requirements 1 cfm (110 psi) 1 cfm (110 psi) 1 cfm (110 psi) 1 cfm (110 psi) 1 cfm (110 psi)
Max Temperature 500F 500F 500F 500F 500F
Unit Weight 35 lbs 41 lbs 55 lbs 62 lbs 100 lbs
Suggested Minimum
Air Compressor Size
15+ Gallon 15+ Gallon 15+ Gallon 15+ Gallon 15+ Gallon
Electrical 120V ac 120V ac 120V ac 120V ac 120V ac
