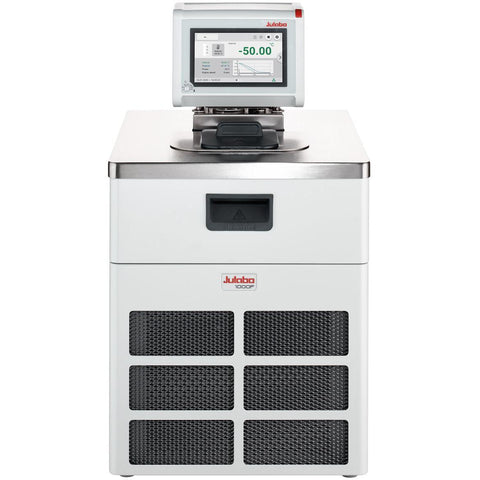

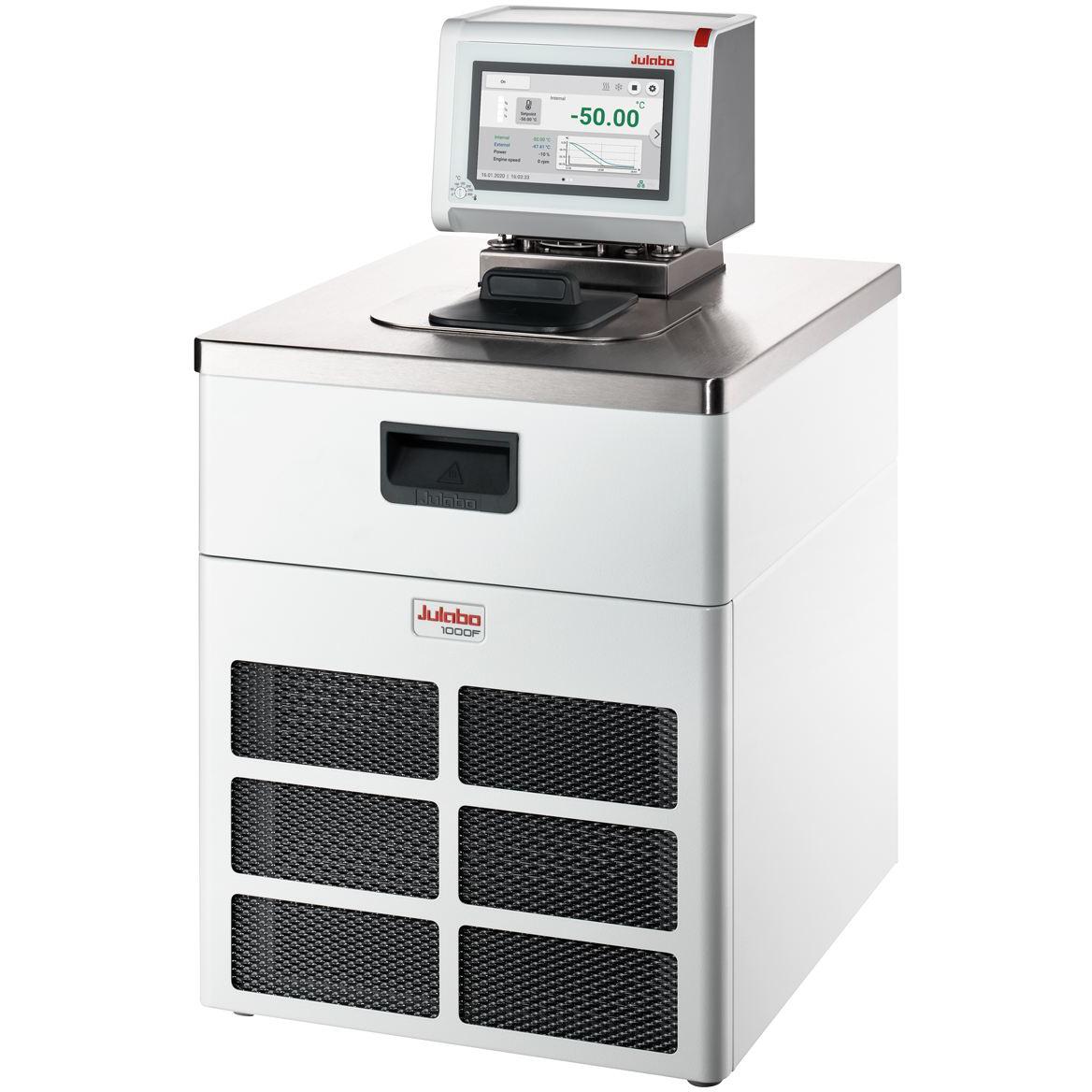

Julabo MAGIO™ MS-1000F Refrigerated/Heating Circulators, -50 to 200°C
| SKU | Description | Filling Volume | Temperature Range | Temperature Stability | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|
| 9032707.02 | MAGIO MS-1000F Refrigerated/Heating Circulator | 5 to 7.5 L | -50 to 200 °C | ±0.01 °C | 100V-115V/50-60Hz | 1 Each |
|
|
| 9032707.33 | MAGIO MS-1000F Refrigerated/Heating Circulator | 5 to 7.5 L | -50 to 200 °C | ±0.01 °C | 200-230V/50-60Hz | 1 Each |
|
|
| 9032707.02.CSA/UL | MAGIO MS-1000F Refrigerated/Heating Circulator | 5 to 7.5 L | -50 to 200 °C | ±0.01 °C | 100V-115V/50-60Hz UL/CSA Certified | 1 Each |
|
|
| 9032707.33.CSA/UL | MAGIO MS-1000F Refrigerated/Heating Circulator | 5 to 7.5 L | -50 to 200 °C | ±0.01 °C | 200-230V/50-60Hz UL/CSA Certified | 1 Each |
|
Description
MAGIO™ refrigerated/heating circulators are suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank.
Refrigeration combinations afford low temperature capabilities from -30 °C to -50 °C with an upper temperature limit of 200 °C. The MAGIO™ MS circulator incorporates easy operation via a large color TFT touchscreen. Unit fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs. A multi-lingual interface, integrated programmer, Pt100 port for external temperature control, RS232/RS485, USB and Ethernet connections for external PC control and data-logging. Modbus TCP/IP incorporated. Stakei port for external accessory control (solenoid valve, etc.).
PID temperature control provides ±0.01 °C stability. Infinitely variable centrifugal pressure/suction pump capacity of 16-31 L/min with pressure to 3.4-13.3 psi. Stainless steel bath tanks with integrated drain port. 115V version with 1 kW heating power; 230V version with 2 kW heating power.
Class III (FL) according to DIN 12876-1.
Included with each unit: 2 each barbed fittings for tubing 8 and 12 mm inner dia. (pump connections M16x1 male).
Key Benefits
- TFT Color Touchscreen
- Multilingual
- Input for setpoints, warning/safety values and menu functions
- ICC (Intelligent Cascade Control), self-optimizing temperature control
- ATC3 3-Point-Calibration
- Pt100 External sensor connection for measurement and control
- Continuously variable pressure/suction pump
- Early warning system for low liquid level (DBGM 203 06 059.8)
- Adjustable high temperature cut-out, visible via display
- RS232/RS485, USB and Ethernet interface for online communication
- Integrated programmer
- Built-in drain tap
Specifications
| Model | MS-1000F | MS-1000F |
|---|---|---|
| SKU | 9032707.02 | 9032707.33 |
| Working Temp Range | -50 to 200°C | -50 to 200°C |
| Heating Capacity | 1kW | 2kW |
| Cooling Capacity | 0.11kW @ -40°C; 0.25kW @ -30°C; 0.51kW @ -20°C; 0.07kW @ -10°C; 0.96kW @ 0°C; 0.96kW @ 10°C; 1kW @ 20°C; 1kW @ 200°C | 0.11kW @ -40°C; 0.25kW @ -30°C; 0.51kW @ -20°C; 0.07kW @ -10°C; 0.96kW @ 0°C; 0.96kW @ 10°C; 1kW @ 20°C; 1kW @ 200°C |
| Voltage Version | 100V-115V/50-60Hz | 200-230V/50-60Hz |
| Power A | 16A | 16A |
| NRTL | Optional | Optional |
| PCF Pressure | 3.5 to 13.3 psi | 3.5 to 13.3 psi |
| PCF Rate | 16 to 31 L/min | 16 to 31 L/min |
| Bath Fill Volume | 5 to 7.5L | 5 to 7.5L |
| External Devices | Pt100|Remote Control | Pt100|Remote Control |
| Fluid Type | Water, Silicone, Water/Glycol | Water, Silicone, Water/Glycol |
| Heating & Cooling | Both | Both |
| Dimensions W x L x H | 16.5 x 19.3 x 27.6 in. | 16.5 x 19.3 x 27.6 in. |
| Weight | 119.3 lbs | 119.3 lbs |
| Refrigerant | R449A | R449A |
Documentation
| Product Data Sheets |
|---|
| MAGIO MS-1000F Data Sheet |
| MAGIO MS User Manual |
