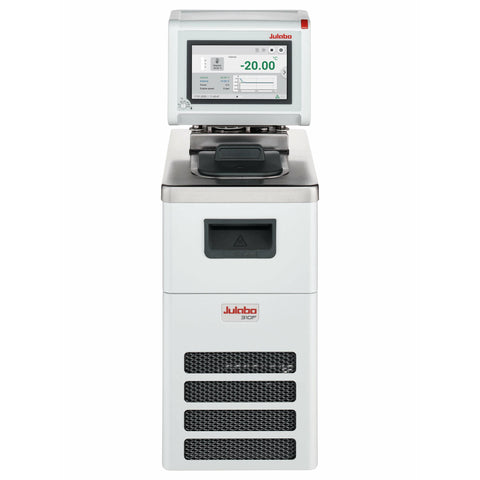

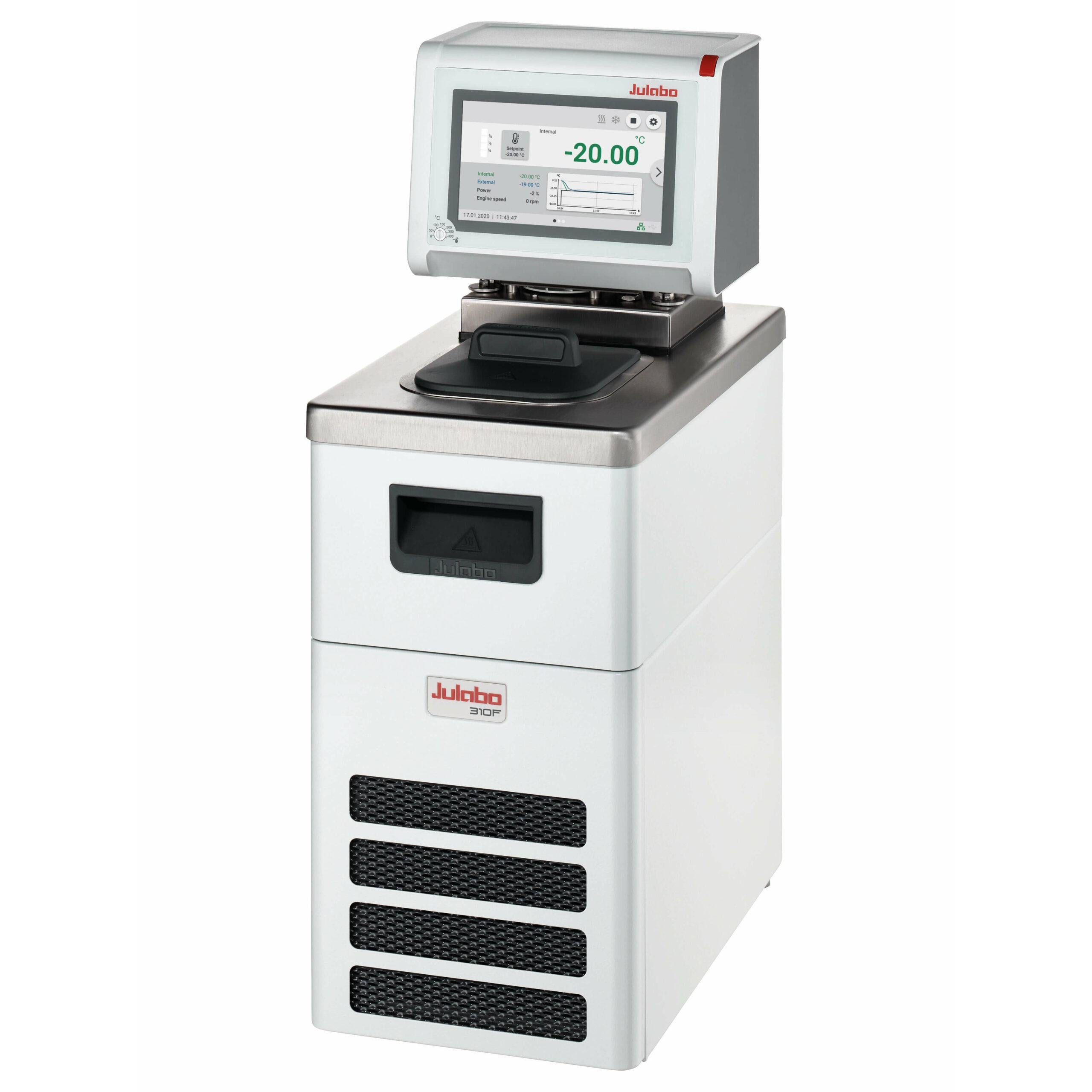

Julabo MAGIO™ MS-310F Refrigerated/Heating Circulators, -30 to 200°C
| SKU | Description | Filling Volume | Temperature Range | Refrigerant | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|
| 9032713.N1.02 | MAGIO MS-310F Refrigerated/Heating Circulator | 3 to 4 L | -30 to 200 °C | R290 (natural refrigerant) | 115V/60Hz | 1 Each |
|
|
| 9032713.S1.02 | MAGIO MS-310F Refrigerated/Heating Circulator | 3 to 4 L | -30 to 200 °C | R449A (synthetic refrigerant) | 115V/60Hz | 1 Each |
|
|
| 9032713.S1.02.CSA/UL | MAGIO MS-310F Refrigerated/Heating Circulator | 3 to 4 L | -30 to 200 °C | R449A (synthetic refrigerant) | 115V/60Hz, UL/CSA Certified | 1 Each |
|
|
| 9032713.N1.33 | MAGIO MS-310F Refrigerated/Heating Circulator | 3 to 4 L | -30 to 200 °C | R290 (natural refrigerant) | 200-230V/50-60Hz | 1 Each |
|
|
| 9032713.S1.33 | MAGIO MS-310F Refrigerated/Heating Circulator | 3 to 4 L | -30 to 200 °C | R449A (synthetic refrigerant) | 200-230V/50-60Hz | 1 Each |
|
Description
MAGIO™ refrigerated/heating circulators are suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank. Refrigeration combinations afford low temperature capabilities from -30 °C to -50 °C with an upper temperature limit of 200 °C.
The MAGIO™ MS circulator incorporates easy operation via a large color TFT touchscreen. Unit fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs. A multi-lingual interface, integrated programmer, Pt100 port for external temperature control, RS232/RS485, USB and Ethernet connections for external PC control and data-logging. Modbus TCP/IP incorporated. Stakei port for external accessory control (solenoid valve, etc.). PID temperature control provides ±0.01 °C stability. Infinitely variable centrifugal pressure/suction pump capacity of 16-31 L/min with pressure to 3.4-13.3 psi. Stainless steel bath tanks with integrated drain port. 115V version with 1 kW heating power; 230V version with 2 kW heating power.
Class III (FL) according to DIN 12876-1.
Included with each unit: 2 each barbed fittings for tubing 8 and 12 mm inner dia. (pump connections M16x1 male).
Key Benefits
- TFT Color Touchscreen
- Multilingual
- Input for setpoints, warning/safety values and menu functions
- ICC (Intelligent Cascade Control), self-optimizing temperature control
- ATC3 3-Point-Calibration
- Pt100 External sensor connection for measurement and control
- Continuously variable pressure/suction pump
- Early warning system for low liquid level (DBGM 203 06 059.8)
- Adjustable high temperature cut-out, visible via display
- RS232/RS485, USB and Ethernet interface for online communication
- Integrated programmer
- Built-in drain tap
Specifications
| Model | MS-310F | MS-310F |
|---|---|---|
| SKU | 9032713.02 | 9032713.33 |
| Working Temp Range | -30 to 200°C | -30 to 200°C |
| Heating Capacity | 1kW | 2kW |
| Cooling Capacity | 0.05kW @ -30°C; 0.13kW @ -20°C; 0.23kW @ -10°C; 0.28kW @ 0°C; 0.33kW @ 20°C; 0.33kW @ 200°C | 0.05kW @ -30°C; 0.13kW @ -20°C; 0.23kW @ -10°C; 0.28kW @ 0°C; 0.33kW @ 20°C; 0.33kW @ 200°C |
| Voltage Version | 115V/60Hz | 200-230V/50-60Hz |
| Power A | 12A | 14A |
| PCF Pressure | 3.5 to 13.3 psi | 3.5 to 13.3 psi |
| PCF Rate | 16 to 31 L/min | 16 to 31 L/min |
| Bath Fill Volume | 3 to 4L | 3 to 4L |
| External Devices | Pt100|Remote Control | Pt100|Remote Control |
| Fluid Type | Water, Silicone, Water/Glycol | Water, Silicone, Water/Glycol |
| Heating & Cooling | Both | Both |
| Dimensions W x L x H | 9.1 x 15.7 x 25.6 in. | 9.1 x 15.7 x 25.6 in. |
| Weight | 63.9 lbs | 63.9 lbs |
| Refrigerant | R290 (9032713.N1) R449A (9032713.S1) |
R290 (9032713.N1) R449A (9032713.S1) |
Documentation
| Product Data Sheets |
|---|
| MAGIO MS-310F Data Sheet |
| MAGIO MS User Manual |
