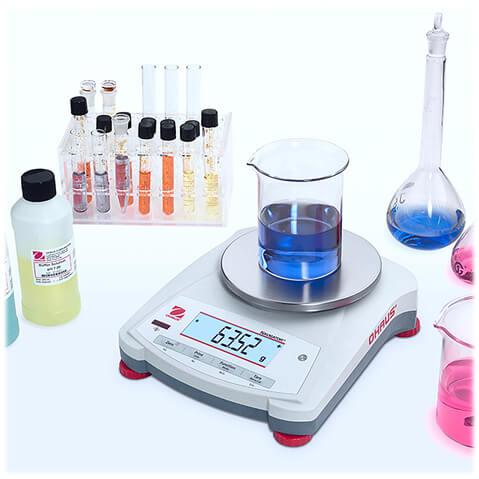

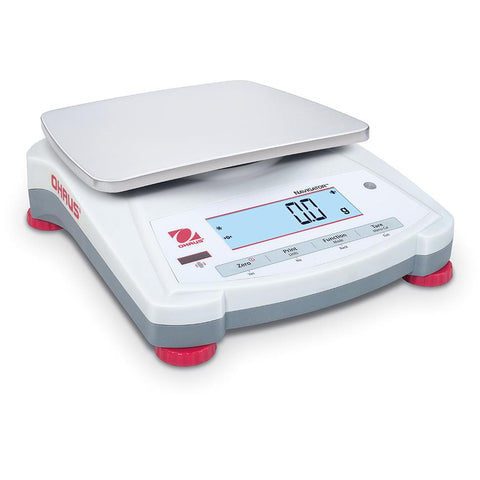

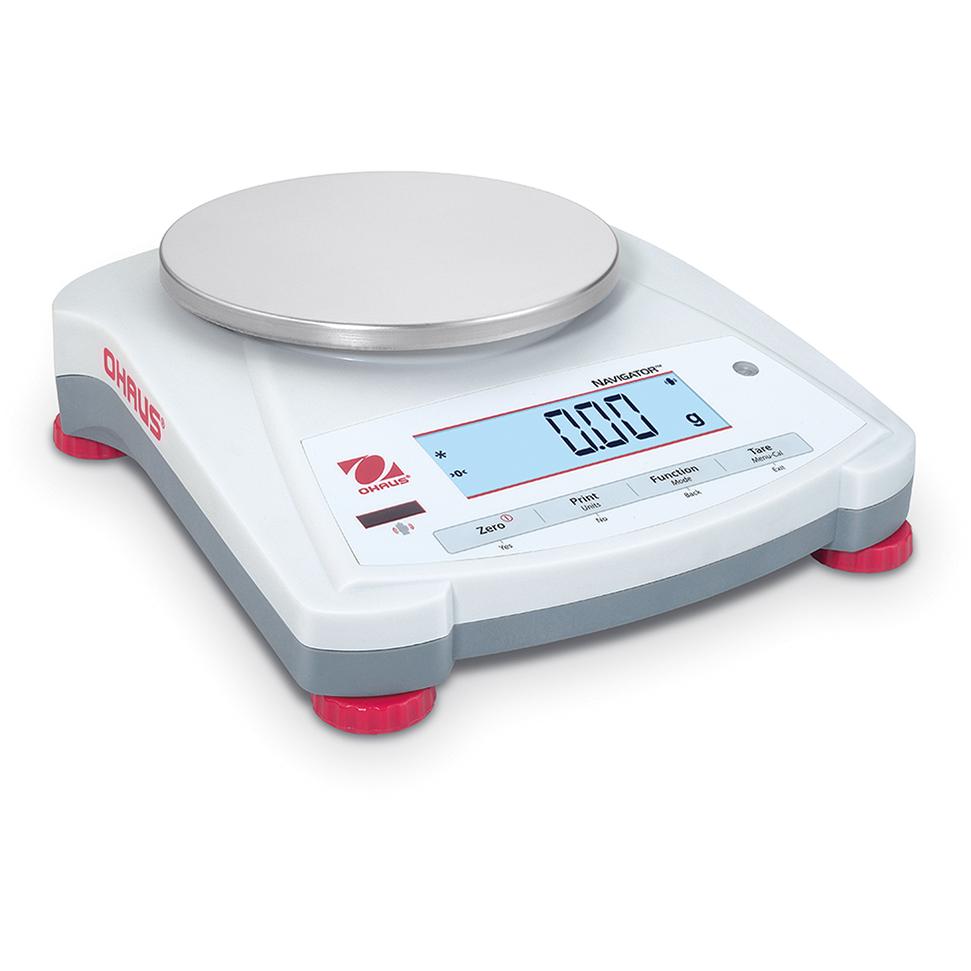

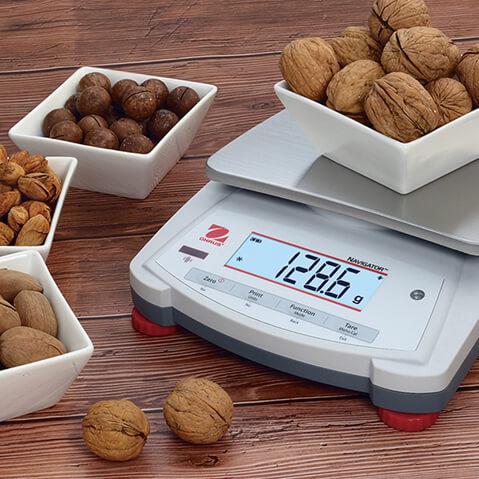

Ohaus® Navigator™ Portable Balances
$267
$240
and up
| Image | SKU | Description | Model | Capacity | Readability | Pan Size | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|
|
30456410 | Ohaus Navigator Portable Balance | NV222 | 220 g | 0.01 g | 145 mm | 1 Each |
|
|
|
30456411 | Ohaus Navigator Portable Balance | NV422 | 420 g | 0.01 g | 145 mm | 1 Each |
|
|
|
30456412 | Ohaus Navigator Portable Balance | NV221 | 220 g | 0.1 g | 144 mm x 190 mm | 1 Each |
|
|
|
30456413 | Ohaus Navigator Portable Balance | NV621 | 620 g | 0.1 g | 144 mm x 190 mm | 1 Each |
|
|
|
30456414 | Ohaus Navigator Portable Balance | NV1201 | 1,200 g | 0.1 g | 144 mm x 190 mm | 1 Each |
|
|
|
30456415 | Ohaus Navigator Portable Balance | NV2201 | 2,200 g | 0.1 g | 144 mm x 190 mm | 1 Each |
|
|
|
30456416 | Ohaus Navigator Portable Balance | NVT2201 | 2,200 g | 0.1 g | 174 mm x 230 mm | 1 Each |
|
|
|
30456417 | Ohaus Navigator Portable Balance | NVT4201 | 4,200 g | 0.1 g | 174 mm x 230 mm | 1 Each |
|
|
|
30456418 | Ohaus Navigator Portable Balance | NVT2200 | 2,200 g | 1 g | 174 mm x 230 mm | 1 Each |
|
|
|
30456419 | Ohaus Navigator Portable Balance | NVT6200 | 6,200 g | 1 g | 174 mm x 230 mm | 1 Each |
|
|
|
30456420 | Ohaus Navigator Portable Balance | NVT12000 | 12,000 g | 1 g | 174 mm x 230 mm | 1 Each |
|
|
|
30456421 | Ohaus Navigator Portable Balance | NVT22000 | 22,000 g | 1 g | 174 mm x 230 mm | 1 Each |
|
Description
Overview
OHAUS raises the bar in price-performance ratio with the newly-designed Navigator series which is perfect for general weighing applications in laboratory, industrial and education settings. Ruggedly constructed and multifunctional, the Navigator's a powerful balance that can handle a diverse range of weighing applications with features such as fast stabilization time, overload protection at four times its rated capacity, and easy operation.
Designed for a range of essential weighing applications, the Navigator offers accuracy and repeatability at a competitive pricepoint, making it a valuable tool in lab, industrial & education settings.
The Navigator series is designed to accurately stabilize in less than one second to provide fast and accurate weighing results, improving operator efficiency, productivity and throughput.
An overload protection system that can withstand loads up to four times the rated capacity safeguards the balance. An integrated shipping lock protects the weighing cell during transportation/storage.
Features
Applications
Weighing, Parts Counting, Percent Weighing, Checkweighing
Display
Liquid Crystal Display (LCD) with backlight
Operation
AC adapter (included) or 4 C batteries (not included)
Communication
RS232, USB, or Ethernet (available as accessories)
Construction
ABS housing, stainless steel pan, transportation lock, slip-resistant and adjustable feet, leveling bubble
Design Features
Menu and calibration lock switch, mechanical and software overload/underload protection, stability indicator, low battery indicator, auto shut-off, user-selectable print options, user-selectable communication settings
Specifications
| Model # | NV222 | NV422 | NV221 | NV621 | NV1201 | NV2201 | NVT2201 | NVT4201 | NVT2200 | NVT6200 | NVT12000 | NVT22000 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part # | 30456410 | 30456411 | 30456412 | 30456413 | 30456414 | 30456415 | 30456416 | 30456417 | 30456418 | 30456419 | 30456420 | 30456421 |
| Maximum Capacity | 220 g | 420 g | 220 g | 620 g | 1,200 g | 2,200 g | 2,200 g | 4,200 g | 2,200 g | 6,200 g | 12,000 g | 22,000 g |
| Readability | 0.01 g | 0.01 g | 0.1 g | 0.1 g | 0.1 g | 0.1 g | 0.1 g | 0.1 g | 1 g | 1 g | 1 g | 1 g |
| Pan Size (LxW) | 5.7 in (145 mm) | 5.7 in (145 mm) | 5.7 in x 7.5 in (144 mm x 190 mm) | 5.7 in x 7.5 in (144 mm x 190 mm) | 5.7 in x 7.5 in (144 mm x 190 mm) | 5.7 in x 7.5 in (144 mm x 190 mm) | 6.9 in x 9.1 in (174 mm x 230 mm) | 6.9 in x 9.1 in (174 mm x 230 mm) | 6.9 in x 9.1 in (174 mm x 230 mm) | 6.9 in x 9.1 in (174 mm x 230 mm) | 6.9 in x 9.1 in (174 mm x 230 mm) | 6.9 in x 9.1 in (174 mm x 230 mm) |
| Battery Life | 270 Hours with Disposable Batteries | 270 Hours with Disposable Batteries | 270 Hours with Disposable Batteries | 270 Hours with Disposable Batteries | 270 Hours with Disposable Batteries | 270 Hours with Disposable Batteries | 270 Hours with Disposable Batteries | 270 Hours with Disposable Batteries | 270 Hours with Disposable Batteries | 270 Hours with Disposable Batteries | 270 Hours with Disposable Batteries | 270 Hours with Disposable Batteries |
| Communication | RS232 (Available as an Accessory); USB (Available as an Accessory); Ethernet (Available as an Accessory) | RS232 (Available as an Accessory); USB (Available as an Accessory); Ethernet (Available as an Accessory) | RS232 (Available as an Accessory); USB (Available as an Accessory); Ethernet (Available as an Accessory) | RS232 (Available as an Accessory); USB (Available as an Accessory); Ethernet (Available as an Accessory) | RS232 (Available as an Accessory); USB (Available as an Accessory); Ethernet (Available as an Accessory) | RS232 (Available as an Accessory); USB (Available as an Accessory); Ethernet (Available as an Accessory) | RS232 (Available as an Accessory); USB (Available as an Accessory); Ethernet (Available as an Accessory) | RS232 (Available as an Accessory); USB (Available as an Accessory); Ethernet (Available as an Accessory) | RS232 (Available as an Accessory); USB (Available as an Accessory); Ethernet (Available as an Accessory) | RS232 (Available as an Accessory); USB (Available as an Accessory); Ethernet (Available as an Accessory) | RS232 (Available as an Accessory); USB (Available as an Accessory); Ethernet (Available as an Accessory) | RS232 (Available as an Accessory); USB (Available as an Accessory); Ethernet (Available as an Accessory) |
| Dimensions (HxLxW) | 2.8 in x 9.1 in x 8 in (70 mm x 230 mm x 204 mm) | 2.8 in x 9.1 in x 8 in (70 mm x 230 mm x 204 mm) | 2.8 in x 9.1 in x 8 in (70 mm x 230 mm x 204 mm) | 2.8 in x 9.1 in x 8 in (70 mm x 230 mm x 204 mm) | 2.8 in x 9.1 in x 8 in (70 mm x 230 mm x 204 mm) | 2.8 in x 9.1 in x 8 in (70 mm x 230 mm x 204 mm) | 2.9 in x 9.8 in x 9.5 in (74 mm x 250 mm x 240 mm) | 2.9 in x 9.8 in x 9.5 in (74 mm x 250 mm x 240 mm) | 2.9 in x 9.8 in x 9.5 in (74 mm x 250 mm x 240 mm) | 2.9 in x 9.8 in x 9.5 in (74 mm x 250 mm x 240 mm) | 2.9 in x 9.8 in x 9.5 in (74 mm x 250 mm x 240 mm) | 2.9 in x 9.8 in x 9.5 in (74 mm x 250 mm x 240 mm) |
| Display | LCD Display with white backlight | LCD Display with white backlight | LCD Display with white backlight | LCD Display with white backlight | LCD Display with white backlight | LCD Display with white backlight | LCD Display with white backlight | LCD Display with white backlight | LCD Display with white backlight | LCD Display with white backlight | LCD Display with white backlight | LCD Display with white backlight |
| In-use cover | No | No | No | No | No | No | No | No | No | No | No | No |
| Legal for Trade | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable |
| Net Weight | 2.2 lb (1 kg) | 2.2 lb (1 kg) | 2.2 lb (1 kg) | 2.2 lb (1 kg) | 2.2 lb (1 kg) | 2.2 lb (1 kg) | 3.3 lb (1.5 kg) | 3.3 lb (1.5 kg) | 3.3 lb (1.5 kg) | 3.3 lb (1.5 kg) | 3.3 lb (1.5 kg) | 3.3 lb (1.5 kg) |
| Pan Construction | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| Power | 4 C (LR14) Batteries (Not Included); AC Adapter (Included) | 4 C (LR14) Batteries (Not Included); AC Adapter (Included) | 4 C (LR14) Batteries (Not Included); AC Adapter (Included) | 4 C (LR14) Batteries (Not Included); AC Adapter (Included) | 4 C (LR14) Batteries (Not Included); AC Adapter (Included) | 4 C (LR14) Batteries (Not Included); AC Adapter (Included) | 4 C (LR14) Batteries (Not Included); AC Adapter (Included) | 4 C (LR14) Batteries (Not Included); AC Adapter (Included) | 4 C (LR14) Batteries (Not Included); AC Adapter (Included) | 4 C (LR14) Batteries (Not Included); AC Adapter (Included) | 4 C (LR14) Batteries (Not Included); AC Adapter (Included) | 4 C (LR14) Batteries (Not Included); AC Adapter (Included) |
| Stabilization Time | 1 s | 1.5 s | 1 s | 1 s | 1 s | 1 s | 1 s | 1.5 s | 1 s | 1 s | 1 s | 1 s |
| Tare Range | To capacity by subtraction | To capacity by subtraction | To capacity by subtraction | To capacity by subtraction | To capacity by subtraction | To capacity by subtraction | To capacity by subtraction | To capacity by subtraction | To capacity by subtraction | To capacity by subtraction | To capacity by subtraction | To capacity by subtraction |
| Transportation Case | Available as an Accessory | Available as an Accessory | Available as an Accessory | Available as an Accessory | Available as an Accessory | Available as an Accessory | Available as an Accessory | Available as an Accessory | Available as an Accessory | Available as an Accessory | Available as an Accessory | Available as an Accessory |
| Units of Measurement | Carat; Grain; Gram; Newton; Ounce; Ounce Troy; Pennyweight | Carat; Grain; Gram; Newton; Ounce; Ounce Troy; Pennyweight | Carat; Grain; Gram; Newton; Ounce; Ounce Troy; Pennyweight | Carat; Grain; Gram; Newton; Ounce; Ounce Troy; Pennyweight; Pound; Pound:Ounce | Carat; Grain; Gram; Kilogram; Newton; Ounce; Ounce Troy; Pennyweight; Pound; Pound:Ounce | Carat; Grain; Gram; Kilogram; Newton; Ounce; Ounce Troy; Pennyweight; Pound; Pound:Ounce | Carat; Grain; Gram; Kilogram; Newton; Ounce; Ounce Troy; Pennyweight; Pound; Pound:Ounce | Carat; Grain; Gram; Kilogram; Newton; Ounce; Ounce Troy; Pennyweight; Pound; Pound:Ounce | Carat; Grain; Gram; Kilogram; Newton; Ounce; Ounce Troy; Pennyweight; Pound; Pound:Ounce | Carat; Grain; Gram; Kilogram; Newton; Ounce; Ounce Troy; Pennyweight; Pound; Pound:Ounce | Carat; Grain; Gram; Kilogram; Newton; Ounce; Ounce Troy; Pennyweight; Pound; Pound:Ounce | Carat; Grain; Gram; Kilogram; Newton; Ounce; Ounce Troy; Pennyweight; Pound; Pound:Ounce |
| Working Environment | 50°F – 104°F, 85%RH, non-condensing (10°C – 40°C, 85%RH, non-condensing) | 50°F – 104°F, 85%RH, non-condensing (10°C – 40°C, 85%RH, non-condensing) | 50°F – 104°F, 85%RH, non-condensing (10°C – 40°C, 85%RH, non-condensing) | 50°F – 104°F, 85%RH, non-condensing (10°C – 40°C, 85%RH, non-condensing) | 50°F – 104°F, 85%RH, non-condensing (10°C – 40°C, 85%RH, non-condensing) | 50°F – 104°F, 85%RH, non-condensing (10°C – 40°C, 85%RH, non-condensing) | 50°F – 104°F, 85%RH, non-condensing (10°C – 40°C, 85%RH, non-condensing) | 50°F – 104°F, 85%RH, non-condensing (10°C – 40°C, 85%RH, non-condensing) | 50°F – 104°F, 85%RH, non-condensing (10°C – 40°C, 85%RH, non-condensing) | 50°F – 104°F, 85%RH, non-condensing (10°C – 40°C, 85%RH, non-condensing) | 50°F – 104°F, 85%RH, non-condensing (10°C – 40°C, 85%RH, non-condensing) | 50°F – 104°F, 85%RH, non-condensing (10°C – 40°C, 85%RH, non-condensing) |
| Auxiliary Display Model | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable | Not Applicable |
