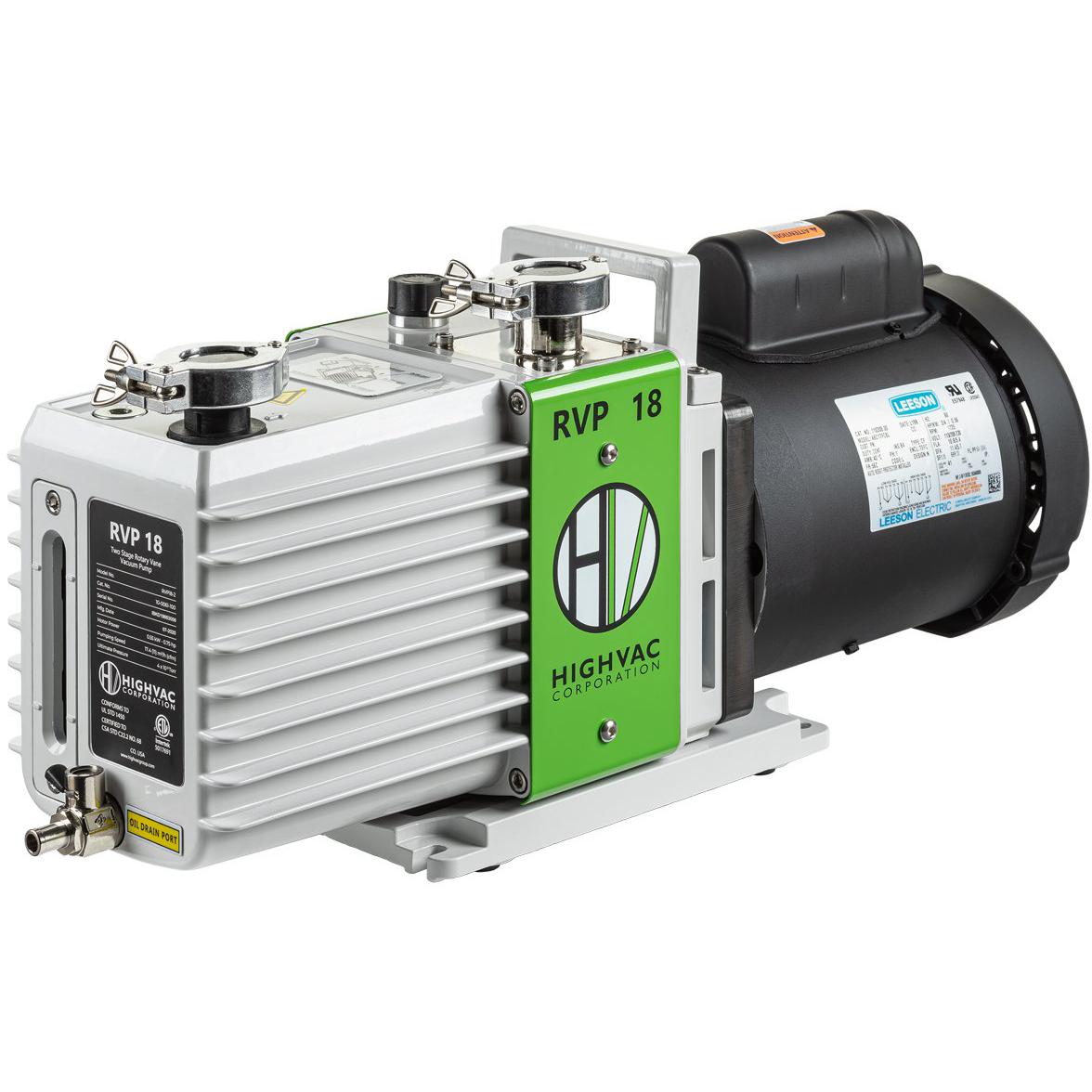

RVP 18 Two Stage Rotary Vane Vacuum Pump
RVP 18 Two Stage Rotary Vane Vacuum Pump
RVP 18 Two Stage Rotary Vane Vacuum Pump RVP 18 Two Stage Rotary Vane Vacuum Pump RVP 18 Two Stage Rotary Vane Vacuum Pump
FREE SHIPPING

RVP 18 Two Stage Rotary Vane Vacuum Pump

Questions? Quotes? Let's chat!
$4,500
$4,050 and up
SKU Description Ultimate Vacuum (without Gas Ballast) Free Air Displacement Electrical Quantity Price Add to Cart

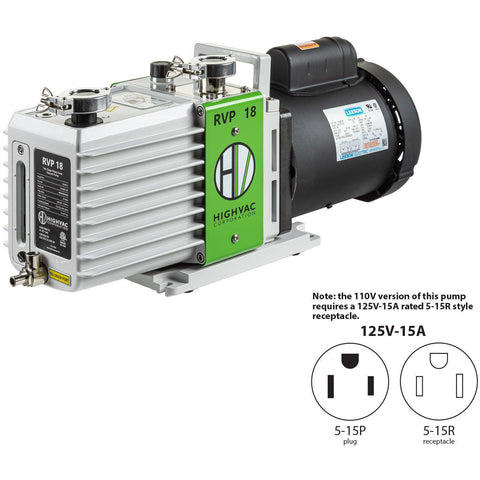

10-0061-100 RVP 18 Two Stage Rotary Vane Vacuum Pump 3.75x10-3 Torr 10.2 cfm / 288 L/min 110V, 1PH, 60Hz, ETL/CSA/UL Certified 1 Each
$4,500
$4,050
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
10-201-1101 RVP 18 Two Stage Rotary Vane Vacuum Pump, Explosion Proof 3.75x10-3 Torr 10.2 cfm / 288 L/min 110V, 1PH, 60Hz, ETL/CSA/UL Certified 1 Each
$6,800
$6,120
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

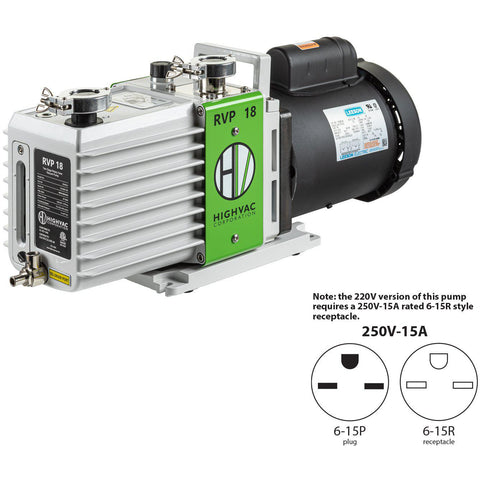

10-0061-300 RVP 18 Two Stage Rotary Vane Vacuum Pump 3.75x10-3 Torr 10.2 cfm / 288 L/min 220V, 1PH, 60Hz, ETL/CSA/UL Certified 1 Each
$4,500
$4,050
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
10-201-2101 RVP 18 Two Stage Rotary Vane Vacuum Pump, Explosion Proof 3.75x10-3 Torr 10.2 cfm / 288 L/min 220V, 1PH, 60Hz, ETL/CSA/UL Certified 1 Each
$6,800
$6,120
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
10-0078-100 RVP 18 Two Stage Rotary Vane Vacuum Pump 3.75x10-3 Torr 10.2 cfm / 288 L/min 230V, 3PH, 60Hz, ETL/CSA/UL Certified 1 Each
$4,500
$4,050
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
10-0078-300 RVP 18 Two Stage Rotary Vane Vacuum Pump, Explosion Proof 3.75x10-3 Torr 10.2 cfm / 288 L/min 230V, 3PH, 60Hz, ETL/CSA/UL Certified 1 Each
$7,000
$6,247
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
10-0079-100 RVP 18 Two Stage Rotary Vane Vacuum Pump 3.75x10-3 Torr 10.2 cfm / 288 L/min 460V, 3PH, 60Hz, ETL/CSA/UL Certified 1 Each
$4,500
$4,050
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
10-0079-300 RVP 18 Two Stage Rotary Vane Vacuum Pump, Explosion Proof 3.75x10-3 Torr 10.2 cfm / 288 L/min 460V, 3PH, 60Hz, ETL/CSA/UL Certified 1 Each
$7,000
$6,247
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

RVP 18 2 stage, oil sealed rotary vane vacuum pumps. 1 or 3 phase. 110V, 220V, or 460V. US Motors. 17.4 cubic meters/hr.

Options available for ordinary location and Hazardous Location (C1D2).

HIGHVAC's RVP series of two stage rotary vane vacuum pumps sprouts from the company's roots in the vacuum industry, now over 40 years deep. Having serviced almost every major make and model of rotary vane vacuum pump, we know a thing or two, and are proud to bring this high-quality product to market.

ETL, CSA Certified, Conforms to UL STD 1450

Model RVP 18
ETL Listed Yes
Phase 1/3
Voltage 110V/220V/230V/460V
Motor Power 0.7 HP
Motor Power 0.55 kW
Pumping Speed 17.4 m3/h
Pumping Speed 10.2 CFM
Ultimate Total Pressure w/o Gas Ballast 3.75x10-3 Torr
Ultimate Total Pressure w/ Gas Ballast 3.75x10-2 Torr
Frequency 60 Hz
Rotational Speed of Pump 1750 RPM
Oil Type Hydrocarbon (Standard)
Oil Quantity 0.65-1.2 L
Inlet Connection KF25
Outlet Connection KF25
Dimensions 454 x 170 x 242 mm
Common Industry Use For CBD, General Industrial, Semiconductor, Coating, Laboratory
