VELP PW Analog Overhead Stirrer, 120 Ncm, Up to 70 L
- Support Stand, Clamp and Stirring Shaft sold separately.
| SKU | Description | Volume Maximum | Speed | Viscosity Maximum | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|
| F201A0150 | PW Analog Overhead Stirrer | 70 L | 20 - 1200 rpm | 100,000 mPa·s | 110-230 V / 50-60 Hz | 1 Each | $2,043 |
Description

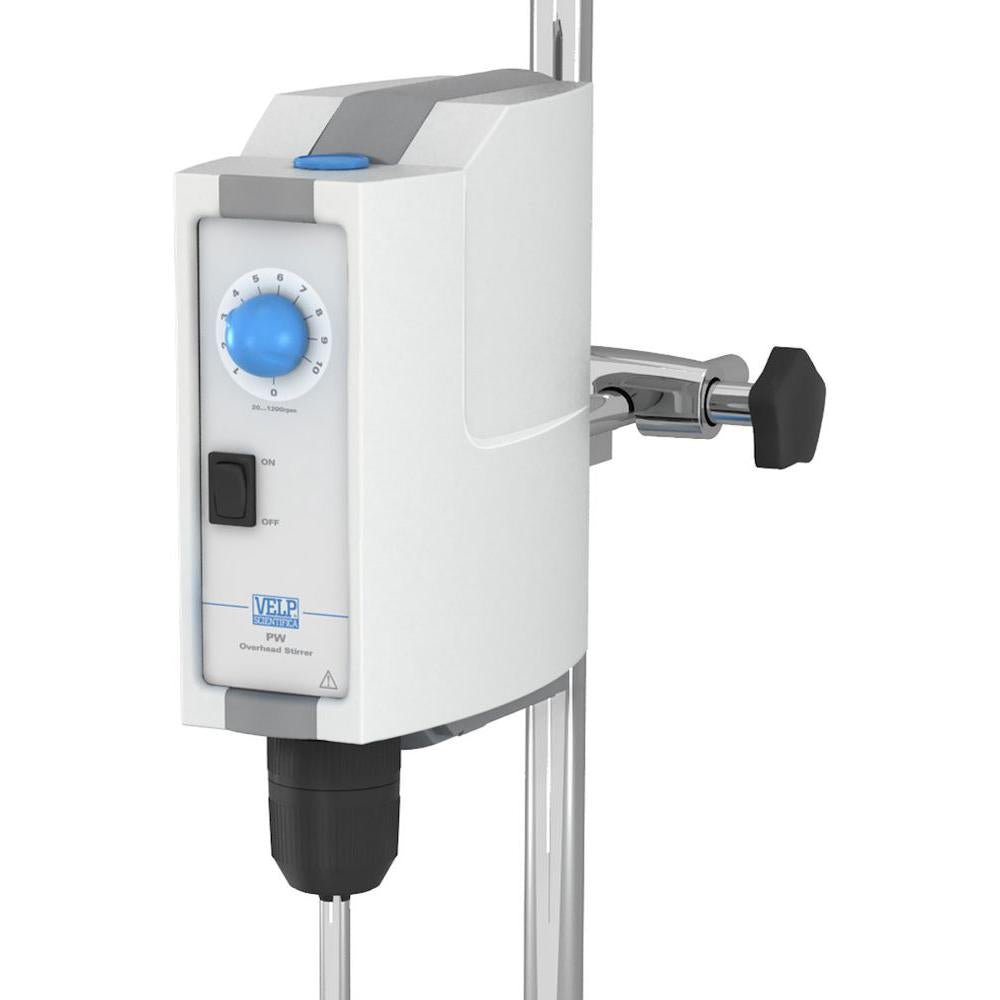

PW Overhead Stirrer
Analog overhead stirrer with 120 Ncm torque able to stir up to 70 L.
Powerful, Safe and Easy to use
The PW is an intuitive overhead stirrer ensuring safety with overload, over-current and overheating protection.
Easy to install, resistant and with a small footprint, PW is your best choice for high viscosity samples.
VELP PW ensures a smooth start and vigorous agitation even at maximum speed!
PW can reach speeds of 1200 rpm and stir up to 70 litres. The device can manage high viscosity, with a maximum of 100,000 mPa*s.
The easy chuck is easy to close and can accommodate shafts with up to 10 mm diameter and does not require any tool.
Resistant and lightweight
PW is designed to offer a long lifespan even in challenging operating conditions.
The special technopolymer structure and the IP 40 guarantee good chemical resistance and special handling, being among the lightest on the market.
The robust motor guarantees continuous operations over the years, without additional maintenance costs.
Specifications
| Construction Material | technopolymer and epoxy painted aluminum alloy |
|---|---|
| Chuck Range | 1 - 10 mm |
| Visualization of Effective Speed | graduated scale |
| Electronic Protection Rating | CEI EN 60529 IP 40 |
| Power | 190 W |
| Weight | 2.9 kg |
| Dimensions (WxHxD) | 80x230x196 mm |
| Stirring Speed | 20 - 1200 rpm |
| Stirring Volume Max (H2O) | 70 liters |
| Max Viscosity | 100,000 (mPa*s) |
| Torque Max | 120 Ncm |
| Allowed Room Temp | 0 - 40 °C |
Documentation
| Product Data Sheets |
|---|
| PW Overhead Stirrer Product Data Sheet |
| PW - LH - LS - ES Overhead Stirrers Instruction Manual |
