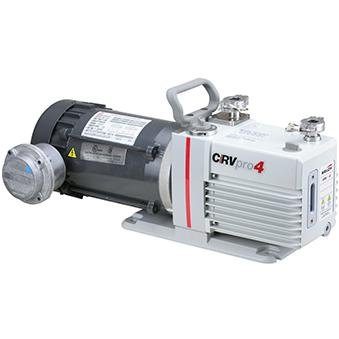

Welch® CRVpro XPRF Direct Drive Rotary Vane Vacuum Pumps, Explosion Proof Motor
| Image | SKU | Description | Ultimate Pressure | Free Air Displacement | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|---|
|
3046E-01 | CRVpro4 XPRF Direct Drive Rotary Vane Vacuum Pump, Explosion Proof | 1.5x10⁻³ Torr | 2.8 cfm (78 L/min) | 115V/208-230V, 60 Hz, 1 Phase, cUL Listed (no plug) | 1 Each |
|
|
|
3086E-01 | CRVpro8 XPRF Direct Drive Rotary Vane Vacuum Pump, Explosion Proof | 1.5x10⁻³ Torr | 5.6 cfm (158 L/min) | 115V/208-230V, 60 Hz, 1 Phase, cUL Listed (no plug) | 1 Each |
|
|
|
3166E-01 | CRVpro16 XPRF Direct Drive Rotary Vane Vacuum Pump, Explosion Proof | 2x10⁻³ Torr | 12.8 cfm (363 L/min) | 115V/208-230V, 60 Hz, 1 Phase, cUL Listed (no plug) | 1 Each |
|
Description
CRVpro XPRF vacuum pumps are two-stage direct-driven vacuum pumps with explosion proof motors.
Welch CRVpro XPRF pump with explosion proof motors are intended for use where they may be exposed to potentially flammable atmospheres. The explosion proof motors on these pumps are rated for Class I, Groups C&D and Class II, Groups F&G.
Examples of Class I locations include chemical plants, oil refineries, gasoline storage/dispensing areas, and gas manufacturing plants. Examples of Class II locations include chemical plants making dusty products.
As with all vacuum pumps with explosion proof motors, conduit wiring to an explosion proof control panel is required. Always use a certified electrician for proper installation of vacuum pump to meet your local municipal codes.
The CRVpro XPRF pumps are cUL listed (E485334).
The CRVpro XPRF pump with explosion proof motors comes with the following key features:
- reduced risk of chemical attacks and oil breakdown by diluting chemical vapors with a larger oil chamber
- slowing down corrosion by cool running operation
- provides a measure of protection from sublimed chemical vapors with coating on pump module and oil case.
These benefits lead to extended service interval.
Applications: CRVpro pumps with explosion proof motors are commonly used in petrochemical, chemical, and oil extraction facilities requiring motors needing to meet Class I, Groups C&D and/or Class II, Groups E, F&G requirements.
Documentation
| Product Data Sheets |
|---|
| CRVpro Data Sheet |
| CRVpro Manual |
Specifications
| SKU | 3046E-01 | 3086E-01 | 3166E-01 |
|---|---|---|---|
| Free Air Displacement | 2.8 cfm (78 L/min) | 5.6 cfm (158 L/min) | 12.8 cfm (363 L/min) |
| Ultimate Pressure | 1.5x10⁻³ Torr | 1.5x10⁻³ Torr | 2x10⁻³ Torr |
| Noise Level | 50 dBA | 50 dBA | 55 dBA |
| Speed | 1740 RPM | 1740 RPM | 1750 RPM |
| Power | 0.5 HP (0.4 kW) | 0.5 HP (0.4 kW) | 1.1 HP (0.85 kW) |
| Oil Capacity | 1.15 L | 1 L | 2.4 L |
| Connection | NW 16 | NW 16 | NW 25 |
| Inlet Connection | 5/8 to 3/4 in. | 5/8 to 3/4 in. | 5/8 to 3/4 in. |
| Weight | 46.3 lbs | 49.6 lbs | 81.6 lbs |
| Dimensions | 18.2 x 6.1 x 9.1 in. | 18.2 x6.1 x 9.1 in. | 22.4 x 8.1 x 11.4 in. |
| Electrical | 115V/208-230V, 60 Hz, 1 Phase, cUL Listed (no plug) | 115V/208-230V, 60 Hz, 1 Phase, cUL Listed (no plug) | 115V/208-230V, 60 Hz, 1 Phase, cUL Listed (no plug) |
