JULABO Thermal bath fluids are ideally suited for all of your temperature control applications and guarantee safe and reliable operation. Choosing the proper bath fluid is critical for the best temperature control results. Viscosity, oxidation characteristics and heat transfer of Thermal fluids are matched specifically with each JULABO temperature control unit. JULABO Thermal bath fluids have been carefully selected and optimized for maximum performance with JULABO instruments.

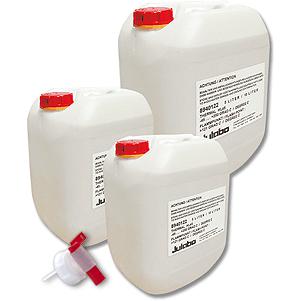

Thermal C5 is a clear 5 cSt silicone fluid rated for use in open bath JULABO units with a working temperature range of -60…+110 °C. Care should be taken to observe atmospheric moisture condensation in the bath fluid with prolonged sub-ambient operation in humid environments. Water and silicone fluids are not miscible.
Benefits
- Low toxicity
- Low viscosity
- High stability
- Minimum odor
- Good heat conductivity
- Low corrosion tendency
- Wide temperature ranges
Specifications
| Working temperature (°C) |
0...+110 |
| Flash point (°C) |
> +135 |
| Fire point (°C) |
> +443 |
| Viscosity (kinematic at 20 °C in mm²/s) |
5 |
| Density (at 20 °C in g/cm³) |
0.918 |
| Pour point (°C) |
-100 |
| Boiling point (°C) |
>205 |
| Ignition temperature (°C) |
>443 |
| Color |
clear |
