CAUTION: not suitable for use with exposure to aluminum components! Contact JULABO directly for information on ethylene glycol formulated for use with aluminum. JULABO Thermal bath fluids are ideally suited for all of your temperature control applications and guarantee safe and reliable operation.
Choosing the proper bath fluid is critical for the best temperature control results. Viscosity, oxidation characteristics and heat transfer of Thermal fluids are matched specifically with each JULABO temperature control unit. JULABO Thermal bath fluids have been carefully selected and optimized for maximum performance with JULABO instruments.

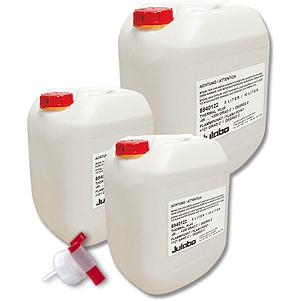

Thermal EG is clear, concentrated ethylene glycol with added stabilizer. Dilution of Thermal EG with water to a 1:1 ratio yields a a working temperature range of -30…+80 °C rated for use in open bath JULABO units or from -30…+90 °C in single stage PRESTO units (A30, A40, W40, A45, A45t, W50, W50t, W55).
Benefits
- Low viscosity
- High stability
- Minimum odor
- Good heat conductivity
- Low corrosion tendency
- Wide temperature ranges
Specifications
| Working temperature (°C) |
-30...+80 |
| Flash point (°C) |
> +120 |
| Fire point (°C) |
> +410 |
| Viscosity (kinematic at 20 °C in mm²/s) |
4.25 |
| Density (at 20 °C in g/cm³) |
1.08 |
| Pour point (°C) |
-37 |
| Boiling point (°C) |
109 |
| Ignition temperature (°C) |
410 |
| Color |
light yellow |
